Fortinet Updated FCSS_EFW_AD-7.6 Exam Questions and Answers by jeremy

In an IBGP (Internal BGP) network, all routers must be fully meshed, meaning every router must establish a BGP session with every other router in the same autonomous system (AS). This does not scale well in large networks due to the exponential increase in BGP sessions.

To optimize and scale IBGP, Route Reflectors (RRs) are used. A Route Reflector (RR) reduces the number of IBGP peer connections by allowing a centralized router (RR) to redistribute IBGP routes to other IBGP peers (called clients). This eliminates the need for a full mesh, significantly reducing BGP session overhead.

By configuring the route-reflector-client setting on IBGP peers, an administrator can:

● Scale IBGP sessions by reducing the number of direct BGP peer connections.

● Optimize the routing table by ensuring routes are efficiently propagated within the IBGP network.

● Eliminate the need for full mesh topology, making IBGP more manageable.

Use metadata variables to dynamically assign values according to each FortiGate device:

Metadata variables in FortiManager allow device-specific configurations to be dynamically assigned without manually configuring each FortiGate. This is especially useful when deploying multiple devices with similar base configurations.

Use provisioning templates and install configuration settings at the device layer:

Provisioning templates in FortiManager provide a structured way to configure FortiGate devices. These templates can define interfaces, policies, and settings, ensuring that each device is correctly configured upon deployment.

Add FortiGate devices on FortiManager as model devices, and use ZTP or LTP to connect to FortiGate devices:

Zero-Touch Provisioning (ZTP) and Local Touch Provisioning (LTP) help automate the deployment of FortiGate devices. By adding devices as model devices in FortiManager, configurations can be pushed automatically when devices connect for the first time, reducing manual effort.

IKEv2 (Internet Key Exchange version 2) is an improvement over IKEv1, offering enhanced security, efficiency, and flexibility in VPN configurations.

It includes stronger Diffie-Hellman (DH) groups, such as Elliptic Curve (ECP) groups.

IKEv2 supports stronger cryptographic algorithms, including Elliptic Curve Diffie-Hellman (ECDH) groups such as ECP256 and ECP384, providing improved security compared to IKEv1.

It supports the extensible authentication protocol (EAP).

IKEv2 natively supports EAP authentication, which allows integration with external authentication mechanisms such as RADIUS, certificates, and smart cards. This is particularly useful for remote access VPNs where user authentication must be flexible and secure.

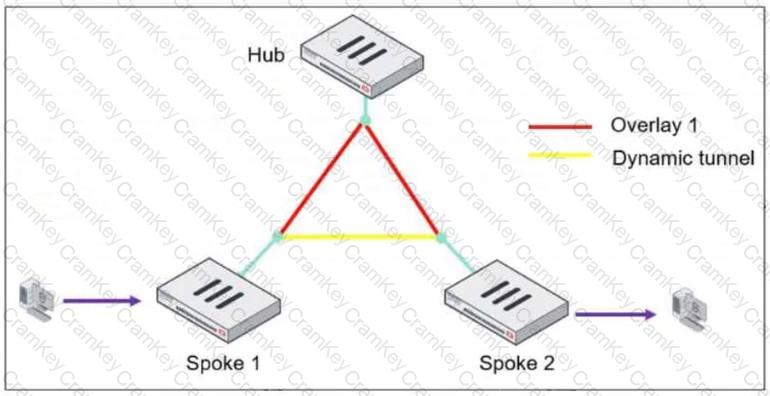

In an ADVPN (Auto-Discovery VPN) network, a dynamic VPN tunnel is established on-demand between spokes to optimize traffic flow and reduce latency.

Process:

1. Traffic Initiation:

A client behind Spoke-1 sends traffic to a device behind Spoke-2.

The traffic initially flows through the hub, following the pre-established overlay tunnel.

2. Hub Detection:

The hub detects that Spoke-1 is communicating with Spoke-2 and determines that a direct shortcut tunnel between the spokes can optimize the connection.

3. Shortcut Offer:

The hub sends a "Shortcut Offer" message to Spoke-1, informing it that a direct dynamic tunnel to Spoke-2 is possible.

4. Tunnel Establishment:

Spoke-1 and Spoke-2 then negotiate and establish a direct IPsec tunnel for communication.
