Salesforce Updated MuleSoft-Platform-Architect-I Exam Questions and Answers by tia

Explanation

Correct Answer: A higher number of discoverable API-related assets in the application network.

*****************************************

>> We do NOT get faster response times in fine-grained approach when compared to coarse-grained approach.

>> In fact, we get faster response times from a network having coarse-grained APIs compared to a network having fine-grained APIs model. The reasons are below.

Fine-grained approach:

1. will have more APIs compared to coarse-grained

2. So, more orchestration needs to be done to achieve a functionality in business process.

3. Which means, lots of API calls to be made. So, more connections will needs to be established. So, obviously more hops, more network i/o, more number of integration points compared to coarse-grained approach where fewer APIs with bulk functionality embedded in them.

4. That is why, because of all these extra hops and added latencies, fine-grained approach will have bit more response times compared to coarse-grained.

5. Not only added latencies and connections, there will be more resources used up in fine-grained approach due to more number of APIs.

That's why, fine-grained APIs are good in a way to expose more number of resuable assets in your network and make them discoverable. However, needs more maintenance, taking care of integration points, connections, resources with a little compromise w.r.t network hops and response times.

Understanding the API Flow and Timeout Requirement:

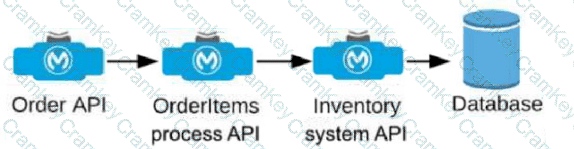

The Order API initiates a call to the OrderItems process API, which in turn calls the Inventory system API to fetch details from the inventory database.

The requirement specifies that the Order API should not wait more than two seconds for a response from the OrderItems process API, even if there are delays further down the chain (between Inventory system API and the database).

Choosing the Appropriate Timeout Location:

Setting the timeout at the OrderItems process API level ensures that if the Inventory system API takes longer than two seconds to respond, the OrderItems process API will terminate the request and send a timeout response back to the Order API. This prevents the Order API from waiting indefinitely due to the unreliable connection to the database.

If the timeout were set in the Inventory system API or database, it would not help the Order API directly, as the OrderItems process API would still be waiting for a response.

Detailed Analysis of Each Option:

Option A (Correct Answer): Setting the timeout in the OrderItems process API allows it to control how long it waits for a response from the Inventory system API. If the Inventory system API does not respond within two seconds, the OrderItems process API can terminate the call and return a timeout response to the Order API, meeting the requirement.

Option B: Setting the timeout in the Order API would not limit the wait time at the OrderItems process API level, meaning the OrderItems process API could still wait indefinitely for the Inventory system API, leading to a longer delay.

Option C: Setting the timeout in the Inventory system API only affects the connection to the database and does not influence how long the OrderItems process API waits for the Inventory system API's response.

Option D: Setting a timeout in the database is not feasible in this context since database timeouts are typically configured for database operations and would not directly control the API response times in the overall API chain.

Conclusion:

Option A is the best choice, as it ensures that the OrderItems process API does not hold the Order API longer than the required two seconds, even if the downstream connection to the database hangs. This configuration aligns with MuleSoft best practices for setting timeouts in API orchestration to manage dependencies and prevent delays across a chain of API calls.

For additional information on timeout settings, refer to MuleSoft documentation on handling timeouts and API orchestration best practices.

Explanation

Correct Answer: Traffic between Mule applications deployed to an Anypoint VPC and on-premises systems can stay within a private network

*****************************************

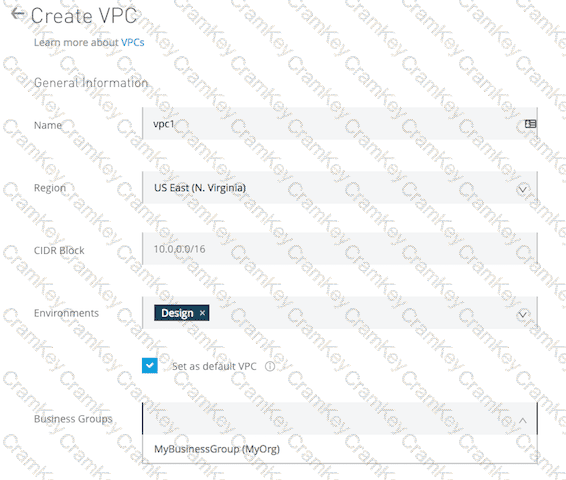

>> The private IP address range of an Anypoint VPC is NOT automatically chosen by CloudHub. It is chosen by us at the time of creating VPC using thr CIDR blocks.

CIDR Block: The size of the Anypoint VPC in Classless Inter-Domain Routing (CIDR) notation.

For example, if you set it to 10.111.0.0/24, the Anypoint VPC is granted 256 IP addresses from 10.111.0.0 to 10.111.0.255.

Ideally, the CIDR Blocks you choose for the Anypoint VPC come from a private IP space, and should not overlap with any other Anypoint VPC’s CIDR Blocks, or any CIDR Blocks in use in your corporate network.

that each CloudHub environment requires a separate Anypoint VPC. Once an Anypoint VPC is created, we can choose a same VPC by multiple environments. However, it is generally a best and recommended practice to always have seperate Anypoint VPCs for Non-Prod and Prod environments.

>> We use Anypoint VPN to link the underlying AWS VPC to an on-premises (non AWS) private network. NOT VPC Peering.

Explanation

Correct Answer: It makes API Manager aware of API implementations and hence enables it to enforce policies.

*****************************************

>> API Autodiscovery is a mechanism that manages an API from API Manager by pairing the deployed application to an API created on the platform.

>> API Management includes tracking, enforcing policies if you apply any, and reporting API analytics.

>> Critical to the Autodiscovery process is identifying the API by providing the API name and version.
