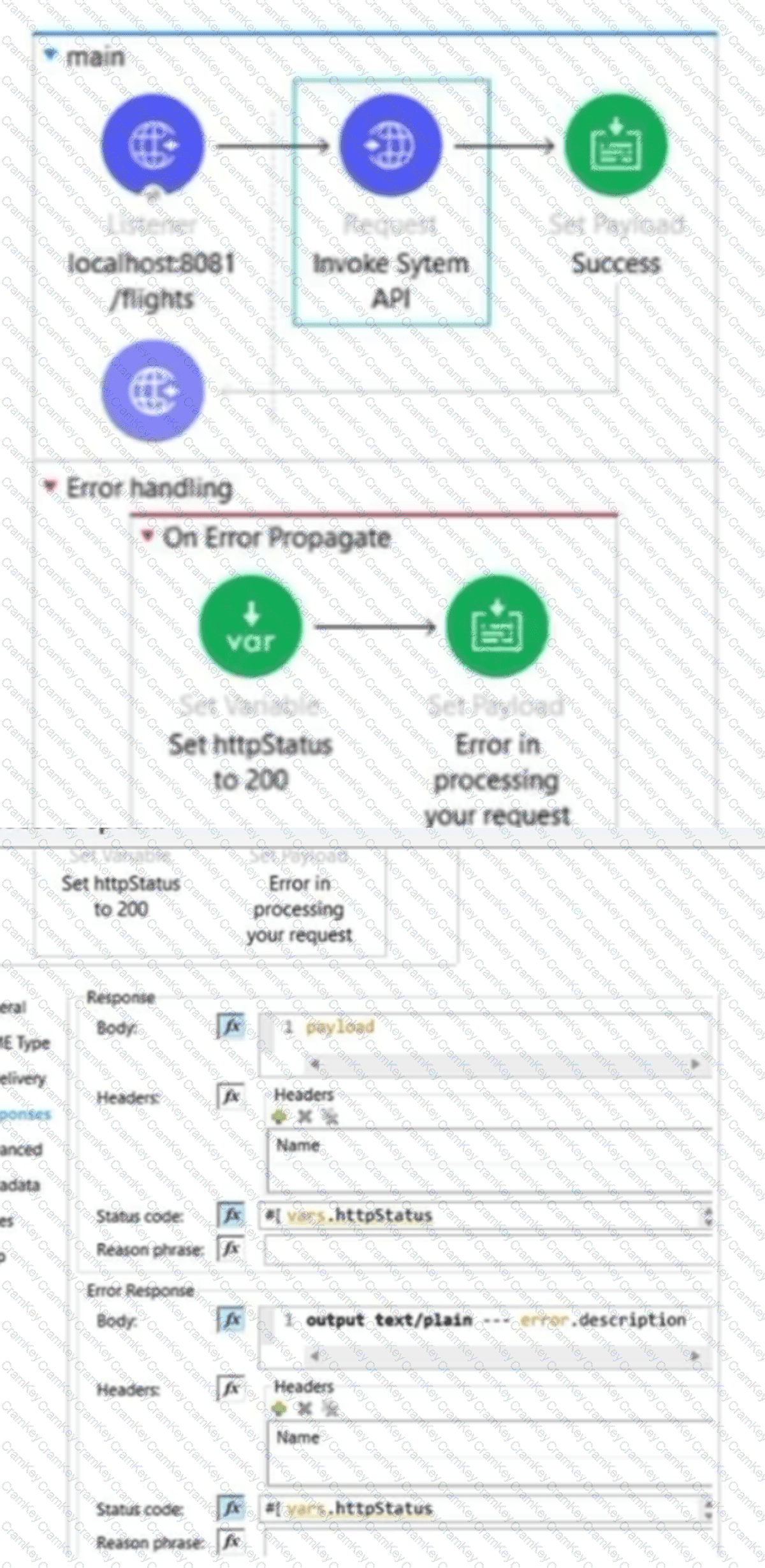

The HTTP Request raises HTTP:CONNECTIVITY, so processing moves to the flow's On Error Propagate handler. Inside that handler, the variable httpStatus is explicitly set to 200, and the payload is changed to "Error in processing your request."

However, because the handler is On Error Propagate, the Mule event remains in an error state after the handler completes. Therefore, the HTTP Listener uses its configured Error Response, not its normal Response configuration.

The exhibit shows that the Error Response status code is:

#[vars.httpStatus]

and its body is explicitly:

output text/plain --- error.description

Consequently, the status code is 200 because the error handler assigned that value to vars.httpStatus, while the body comes from error.description, which contains the description of the HTTP:CONNECTIVITY error. The payload set inside the error handler is not the expression used by the listener's configured Error Response.

MuleSoft documents that unsuccessful listener executions use the error-response definition and that status, body, headers, and other fields can use flow variables and DataWeave expressions.

Reference topics: HTTP Listener Error Response; On Error Propagate; Mule error object; error.description; response status variables.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================

Major API versions should be distinguishable at the API's external URI rather than being encoded independently into every resource operation or into internal Mule flow names. MuleSoft recommends including the consumer-facing API version in the application URL, for example /v1/..., so clients can explicitly select the major API contract they intend to consume.

RAML supports this cleanly through the baseUri. A version variable can be included in the base URI, for example baseUri: https://api.example.com/v{version}, with the corresponding version or base URI parameter defined in the specification. This keeps the versioning concern at the API contract and endpoint-addressing level.

Changing every operation would unnecessarily duplicate version information. Modifying generated APIkit flow names affects Mule implementation internals but does not provide distinct public API addresses. Similarly, manually changing generated HTTP listeners after scaffolding makes the implementation diverge from the API specification and weakens API-led lifecycle management.

MuleSoft's versioning guidance explicitly recommends exposing the major version in the API URL and using simple major identifiers such as v1, v2, and so forth.

Reference topics: API Versioning; RAML baseUri; Base URI Parameters; Major API Versions.

Official documentation: https://docs.mulesoft.com/exchange/to-change-raml-version

===============================================================

Resource filtering is designed primarily for textual resources in which Maven substitutes property expressions. Binary files such as PKCS#12 keystores and certificate files must not be passed through text filtering because filtering can corrupt their binary representation.

The Maven Resources Plugin provides the dedicated configuration element nonFilteredFileExtensions. Each additional extension is declared using a nested nonFilteredFileExtension. The plugin documentation specifically defines this parameter as the list of additional file extensions to which filtering must not be applied.

Option C correctly uses the documented structure:

< nonFilteredFileExtensions >

< nonFilteredFileExtension > p12 < /nonFilteredFileExtension >

< nonFilteredFileExtension > crt < /nonFilteredFileExtension >

< nonFilteredFileExtension > pem < /nonFilteredFileExtension >

< /nonFilteredFileExtensions >

This is important because the application's normal resource configuration can still use < filtering > true < /filtering > for textual files while Maven leaves the listed certificate/keystore formats untouched.

The alternative constructs visible in the other exhibits, such as excludeFileExtensions or excludeBinaryFiles, are not the Maven Resources Plugin parameter used for this purpose.

Reference topics: Maven Resources Plugin; resource filtering; binary resources; nonFilteredFileExtensions; Mule Maven builds.

Official documentation: https://maven.apache.org/plugins/maven-resources-plugin/resources-mojo.html

===============================================================

An HTTP webhook provides event-driven notification from an API or service to a client-controlled HTTP endpoint. Instead of requiring the client to repeatedly poll the API for changes, the client registers or supplies a callback URL. When the relevant state transition occurs, the service immediately issues an HTTP request—commonly POST—to that endpoint.

This architecture closely matches the requirement to notify the client as soon as the state change occurs. MuleSoft-supported connectors expose the same webhook model. For example, MuleSoft's connector documentation describes webhook endpoints as URLs that receive notifications about configured events, demonstrating the callback-based semantics of the pattern.

An ETL load is primarily designed for batch-oriented movement and transformation of data and would introduce unnecessary latency. A scheduled event publisher is still time based, meaning notification occurs according to a schedule rather than directly in response to the state transition. A shared database trigger tightly couples applications through the persistence tier and does not constitute an API notification mechanism.

A webhook therefore creates a clean event-driven API contract: the producing service detects the event and actively notifies the registered consumer endpoint.

Reference topics: HTTP webhooks; event-driven API integration; callback endpoints; asynchronous notifications; API consumer decoupling.

Official documentation: https://docs.mulesoft.com/stripe-connector/latest/stripe-connector-reference

===============================================================
