Salesforce Updated Mule-Dev-301 Exam Questions and Answers by oisin

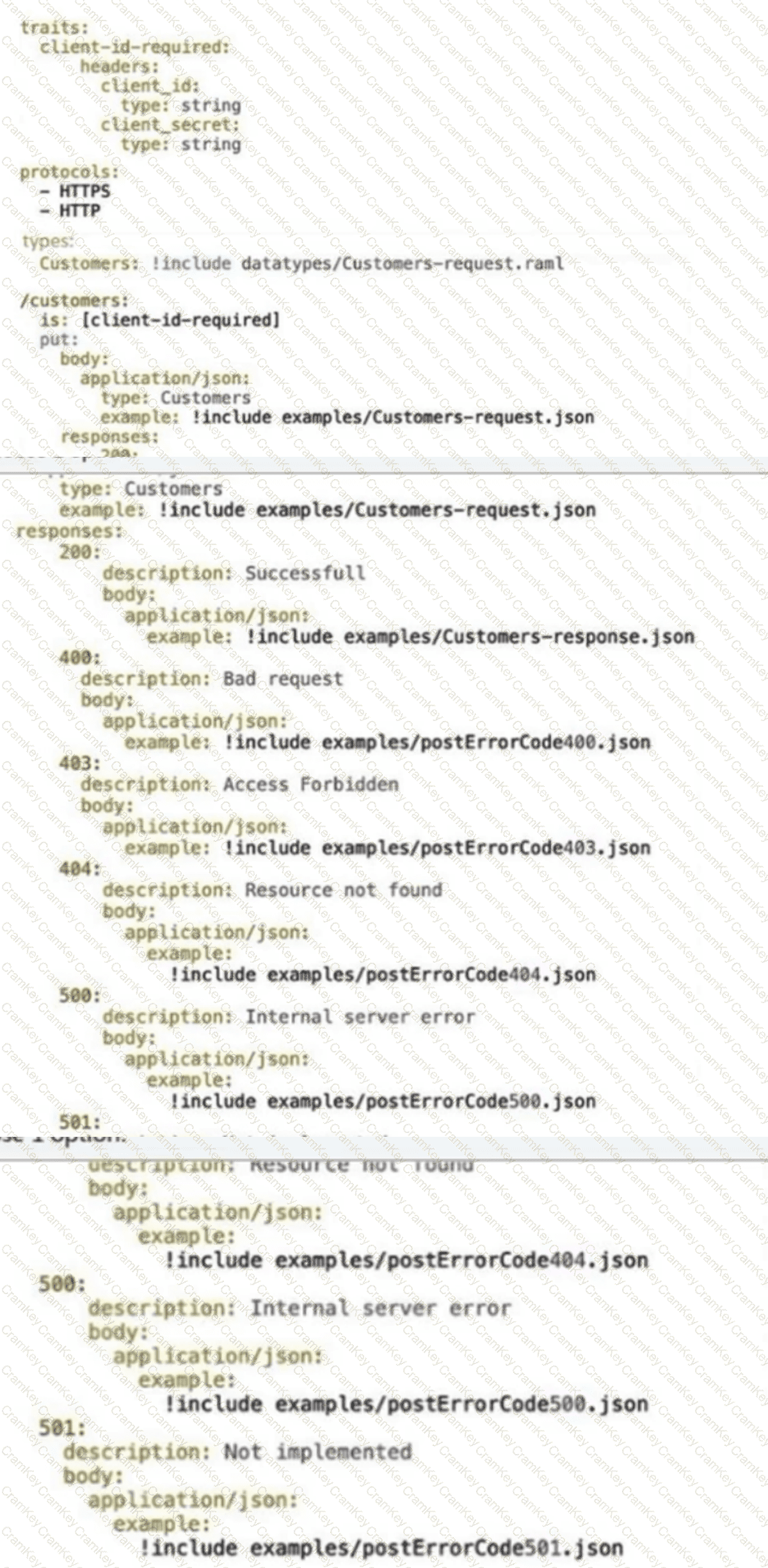

The RAML trait shown in the exhibit declares client_id and client_secret as headers and applies that trait to the /customers resource. Because these headers form part of the API contract, APIkit Router validates the inbound request against the specification before routing it to the generated implementation flow.

If the required request structure is not honored, APIkit raises an APIKIT:BAD_REQUEST error. MuleSoft's APIkit error-handling reference maps APIKIT:BAD_REQUEST directly to HTTP 400, and APIkit scaffolding generates the corresponding error-handling logic with httpStatus set to 400.

A 403 response would normally represent a request that was understood but rejected because of authorization. That is not what is happening here: the request fails API contract validation before successful routing because required request information is absent. A 500 indicates an internal server failure, which is also inappropriate for malformed client input.

Therefore, when the API Console submits the request without the required header values, the APIkit-generated implementation treats it as a bad request and returns HTTP 400.

Reference topics: APIkit Router validation; RAML traits; required headers; APIKIT:BAD_REQUEST; APIkit-generated error handling.

Official documentation: https://docs.mulesoft.com/apikit/latest/apikit-error-handling-reference

===============================================================

Maven controls a Mule application's build and deployment through the project's pom.xml. A newly generated Mule project contains the normal project metadata and Mule Maven Plugin definition, but Maven-based deployment requires the appropriate deployment configuration to be added or completed in that POM.

MuleSoft's CloudHub deployment documentation explicitly states that the CloudHub deployment strategy must be configured in the project's pom.xml. The Mule Maven Plugin configuration contains deployment-specific settings such as the Mule runtime version, application name, environment, region, worker configuration, authentication information or references, and application properties.

settings.xml can store Maven-level repository or server credentials, but it is normally part of the user's Maven configuration rather than a required file inside the Mule application project. mule-artifact.json describes Mule artifact/runtime metadata and exported resources/packages; it is not where the Mule Maven deployment strategy is defined. config.yaml is likewise not the Maven build descriptor.

Therefore, before using Maven to deploy the application, the deployment configuration must be established in the project's pom.xml.

Reference topics: Mule Maven Plugin; pom.xml; Maven deployment lifecycle; CloudHub deployment configuration; CI/CD.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.4/deploy-to-cloudhub

===============================================================

API Autodiscovery pairs a Mule API implementation with an API instance managed in API Manager. The global autodiscovery element requires the API instance identifier and a flowRef that identifies the flow where API Gateway policy enforcement begins.

MuleSoft explicitly states that flowRef must reference a flow containing an HTTP Listener. The referenced flow represents the inbound API entry point receiving the requests against which API Manager policies are enforced. Connectors that merely use HTTP internally are not sufficient for this requirement.

In an APIkit-generated application, the appropriate flow is typically the main API flow that contains the HTTP Listener and APIkit Router. Individual generated resource/operation flows execute later after routing; they are not the primary inbound policy-enforcement point. Similarly, the APIkit Console flow is intended for interactive API documentation/testing and should not be used as the flowRef for production policy enforcement.

The attribute is not simply supplied dynamically at runtime. It is part of the Mule application's Autodiscovery configuration and identifies the exact listener-based flow paired to API Manager.

Therefore, flowRef must identify the flow containing the HTTP Listener that receives the REST API's incoming requests.

Reference topics: API Autodiscovery; api-gateway:autodiscovery; flowRef; HTTP Listener; API Manager policy enforcement.

Official documentation: https://docs.mulesoft.com/mule-gateway/mule-gateway-config-autodiscovery-mule4

===============================================================
