In this scenario, App1 consists of three distinct tiers — web front end, processing middle tier, and SQL database — each containing five virtual machines. The technical requirement specifies that the company must minimize the number of open ports between the App1 tiers, move all tiers of App1 to Azure, and ensure that all VMs are protected by backups.

According to Microsoft Azure architecture best practices for multi-tier applications (from Azure Architecture Center and the Azure Administrator curriculum), the optimal design involves:

Deploying all tiers of App1 into a single virtual network (VNet).

This allows all components of the application to communicate securely using private IP addresses.

Keeping all tiers within a single VNet simplifies management, security, and monitoring while supporting Network Security Groups (NSGs) for inter-tier traffic control.

Microsoft Documentation Extract:

“Use a single virtual network to host multi-tier applications. Divide the virtual network into multiple subnets, each representing a tier, and use network security groups (NSGs) to control traffic flow between tiers.”

(Source: Microsoft Learn – Design and implement virtual networks in Azure)

Creating separate subnets for each application tier (3 total).

Subnet 1: Web tier (internet-facing, HTTPS traffic)

Subnet 2: Application/Processing tier (internal communication only)

Subnet 3: Database tier (private, no internet access)

Using NSGs, administrators can explicitly allow or deny traffic between subnets, thus minimizing open ports between tiers and meeting the security requirement.

Microsoft Documentation Extract:

“Subnets provide isolation and segmentation within a virtual network. Each tier of an application should be deployed in its own subnet to apply network security policies and control exposure.”

(Source: Microsoft Learn – Azure virtual network design best practices)

Backups and Storage Requirements:

All VMs can use Azure Backup integrated with Recovery Services Vaults, which supports VM-level backup in a single VNet environment.

The blueprint files are stored in Azure Blob Storage with the archive tier, ensuring compliance with the storage and access control requirements.

By using one virtual network and three subnets, Contoso ensures efficient management, minimized administrative overhead, secure isolation of application tiers, and full compliance with Azure governance and security recommendations.

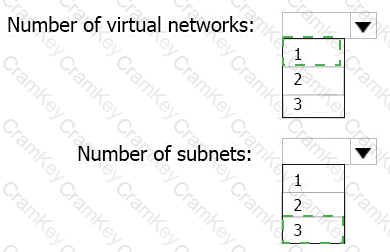

✅ Final Verified Answer:

Number of virtual networks: 1

Number of subnets: 3

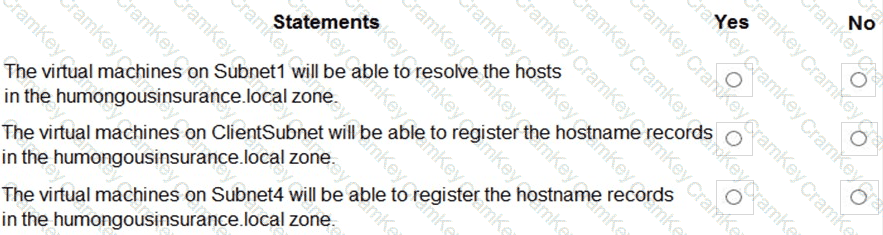

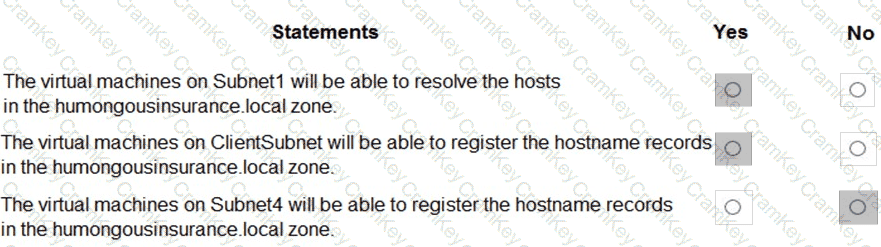

Statement 1: Yes

All client computers in the Paris office will be joined to an Azure AD domain.

A virtual network named Paris-VNet that will contain two subnets named Subnet1 and Subnet2.

Microsoft Windows Server Active Directory domains, can resolve DNS names between virtual networks. Automatic registration of virtual machines from a virtual network that ' s linked to a private zone with auto-registration enabled. Forward DNS resolution is supported across virtual networks that are linked to the private zone.

Statement 2: Yes

A virtual network named ClientResources-VNet that will contain one subnet named ClientSubnet You plan to create a private DNS zone named humongousinsurance.local and set the registration network to the ClientResources-VNet virtual network.

As this is a registration network so this will work.

Statement 3: No

Only VMs in the registration network, here the ClientResources-VNet, will be able to register hostname records. Since Subnet4 not connected to Client Resources Network thus not able to register its hostname with humongoinsurance.local

IdFix is used to perform discovery and remediation of identity objects and their attributes in an on-premises Active Directory environment in preparation for migration to Azure Active Directory. IdFix is intended for the Active Directory administrators responsible for directory synchronization with Azure Active Directory.

Scenario: Active Directory Issue

Several users in humongousinsurance.com have UPNs that contain special characters.

You suspect that some of the characters are unsupported in Azure AD.

Cost analysis: Correct Option

In cost analysis blade of Azure, you can see all the detail for custom time span. You can use this to determine expenditure of last few day, weeks, and month. Below options are available in Cost analysis blade for filtering information by time span:  last 7 days, last 30 days, and custom date range. Choosing the first option (last 7 days) auditors can view the costs by time span.

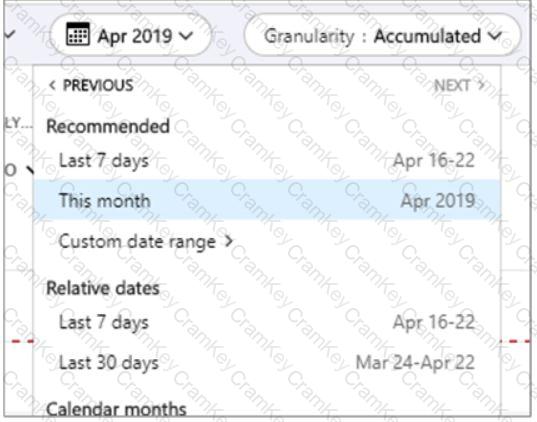

Cost analysis shows data for the current month by default. Use the date selector to switch to common date ranges quickly. Examples include the last seven days, the last month, the current year, or a custom date range. Pay-as-you-go subscriptions also include date ranges based on your billing period, which isn ' t bound to the calendar month, like the current billing period or last invoice. Use the  < PREVIOUS and NEXT >  links at the top of the menu to jump to the previous or next period, respectively. For example,  < PREVIOUS will switch from the Last 7 days to 8-14 days ago or 15-21 days ago.

Invoice: Incorrect Option

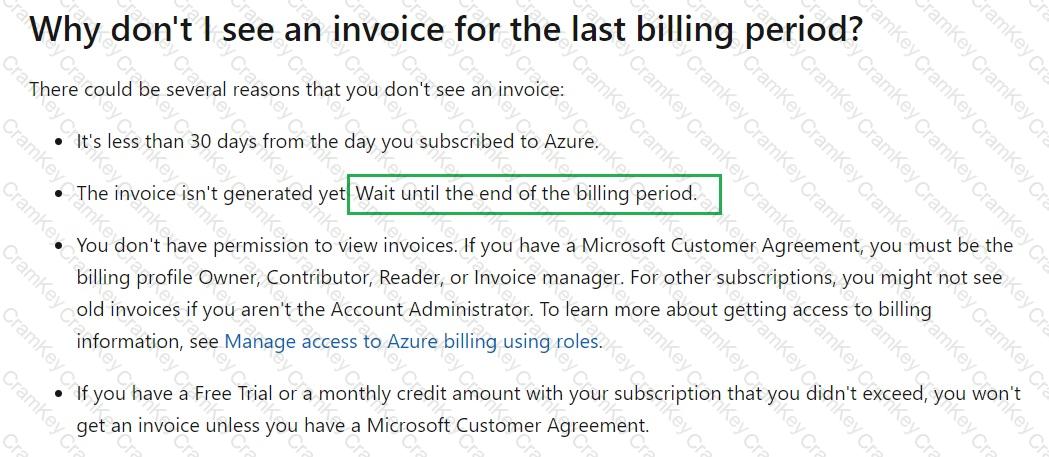

Invoices can only be used for past billing periods not for current billing period, i.e. if your requirement is to know the last week ' s cost then that also not filled by invoices because Azure  generates invoice at the end of the month. Even though Invoices have custom timespan, but when you put in dates for a week, the pane would be empty. Below is from Microsoft document:

Resource Provider: Incorrect Option

When deploying resources, you frequently need to retrieve information about the resource providers and types. For example, if you want to store keys and secrets, you work with the Microsoft.KeyVault resource provider. This resource provider offers a resource type called vaults for creating the key vault. This is not useful for reviewing all Azure costs from the past week which is required for audit.

Payment method: Incorrect Option

Payment methods is not useful for reviewing all Azure costs from the past week which is required for audit.
