Microsoft Updated AZ-104 Exam Questions and Answers by ana

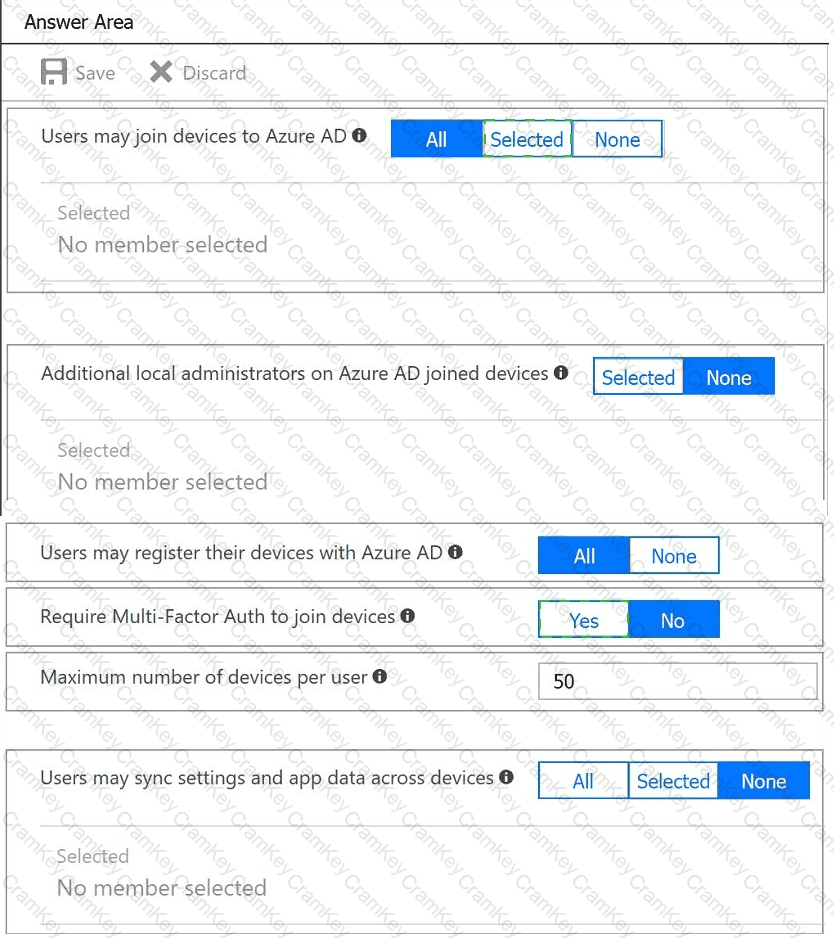

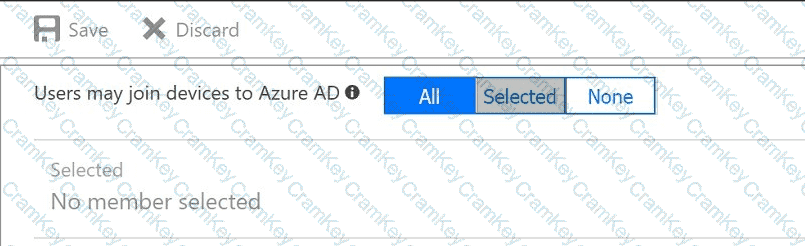

Box 1: Selected

Only selected users should be able to join devices

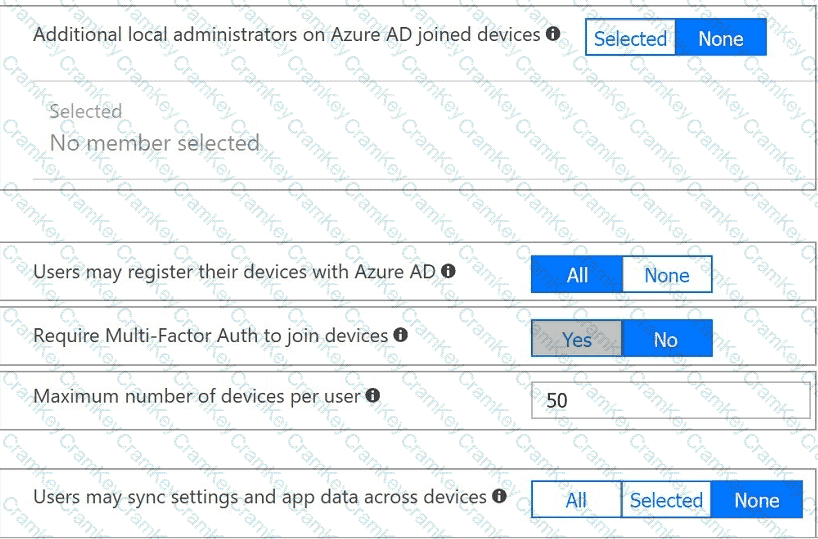

Box 2: Yes

Require Multi-Factor Auth to join devices.

From scenario:

Ensure that only users who are part of a group named Pilot can join devices to Azure AD

Ensure that when users join devices to Azure Active Directory (Azure AD), the users use a mobile phone to verify their identity.

Active Directory Federation Services is a feature and web service in the Windows Server Operating System that allows sharing of identity information outside a company’s network.

Scenario: Technical Requirements include:

Prevent user passwords or hashes of passwords from being stored in Azure.

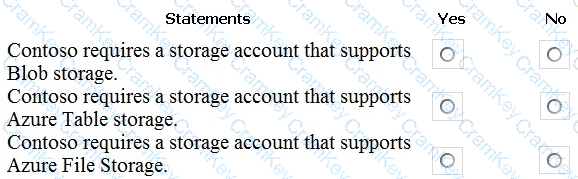

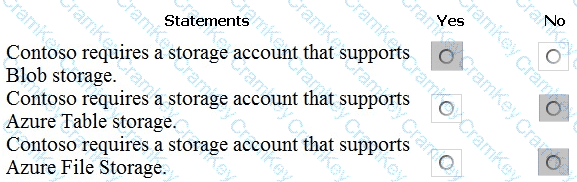

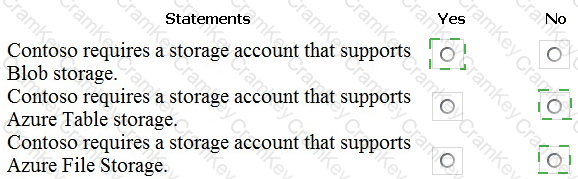

Statement 1: Yes

Contoso is moving the existing product blueprint files to Azure Blob storage which will ensure that the blueprint files are stored in the archive storage tier.

Use unmanaged standard storage for the hard disks of the virtual machines. We use Page Blobs for these.

Statement 2: No

Azure Table storage stores large amounts of structured data. The service is a NoSQL datastore which accepts authenticated calls from inside and outside the Azure cloud. Azure tables are ideal for storing structured, non-relational data. Common uses of Table storage include:

1. Storing TBs of structured data capable of serving web scale applications

2. Storing datasets that don ' t require complex joins, foreign keys, or stored procedures and can be denormalized for fast access

3. Quickly querying data using a clustered index

4. Accessing data using the OData protocol and LINQ queries with WCF Data Service .NET Libraries

Statement 3: No

File Storage can be used if your business use case needs to deal mostly with standard File extensions like *.docx, *.png and *.bak then you should probably go with this storage option.

In this scenario, App1 consists of three distinct tiers — web front end, processing middle tier, and SQL database — each containing five virtual machines. The technical requirement specifies that the company must minimize the number of open ports between the App1 tiers, move all tiers of App1 to Azure, and ensure that all VMs are protected by backups.

According to Microsoft Azure architecture best practices for multi-tier applications (from Azure Architecture Center and the Azure Administrator curriculum), the optimal design involves:

Deploying all tiers of App1 into a single virtual network (VNet).

This allows all components of the application to communicate securely using private IP addresses.

Keeping all tiers within a single VNet simplifies management, security, and monitoring while supporting Network Security Groups (NSGs) for inter-tier traffic control.

Microsoft Documentation Extract:

“Use a single virtual network to host multi-tier applications. Divide the virtual network into multiple subnets, each representing a tier, and use network security groups (NSGs) to control traffic flow between tiers.”

(Source: Microsoft Learn – Design and implement virtual networks in Azure)

Creating separate subnets for each application tier (3 total).

Subnet 1: Web tier (internet-facing, HTTPS traffic)

Subnet 2: Application/Processing tier (internal communication only)

Subnet 3: Database tier (private, no internet access)

Using NSGs, administrators can explicitly allow or deny traffic between subnets, thus minimizing open ports between tiers and meeting the security requirement.

Microsoft Documentation Extract:

“Subnets provide isolation and segmentation within a virtual network. Each tier of an application should be deployed in its own subnet to apply network security policies and control exposure.”

(Source: Microsoft Learn – Azure virtual network design best practices)

Backups and Storage Requirements:

All VMs can use Azure Backup integrated with Recovery Services Vaults, which supports VM-level backup in a single VNet environment.

The blueprint files are stored in Azure Blob Storage with the archive tier, ensuring compliance with the storage and access control requirements.

By using one virtual network and three subnets, Contoso ensures efficient management, minimized administrative overhead, secure isolation of application tiers, and full compliance with Azure governance and security recommendations.

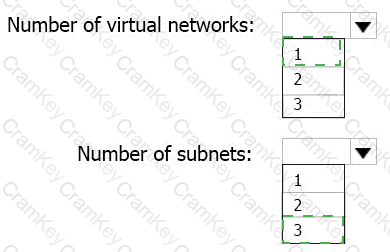

✅ Final Verified Answer:

Number of virtual networks: 1

Number of subnets: 3
