Huawei Updated H12-811_V2.0 Exam Questions and Answers by ava-grace

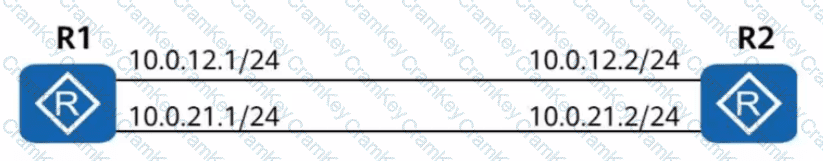

The source key marks this statement TRUE, but the topology makes that answer technically incorrect. R1 is shown with interface address 10.0.12.1/24, which automatically installs a directly connected route to 10.0.12.0/24. On Huawei VRP, a direct route has preference 0, whereas a static route has preference 60 unless another value is configured. The two commands do configure two static routes with the same preference, and equal-preference static routes can support load balancing when they are the best routes to a destination. Here, however, both static routes are for the same prefix that R1 already owns as a connected network. The direct route has a higher priority because its preference value is smaller, so it is selected in the active IP routing table instead of the two preference-60 static routes. Therefore the assertion that R1 has two active equal-cost routes to 10.0.12.0/24 is FALSE as the question and exhibit are written. The verified answer is B, and the original source key A should be corrected.

The acronym in the source file is mistyped as PCF. The correct intelligent lossless Ethernet technology is PFC, which stands for Priority-based Flow Control. PFC extends Ethernet flow control by applying pause behavior to selected traffic priorities rather than stopping all traffic on an interface. When a downstream device detects that a lossless priority queue is approaching congestion, it can send a priority-specific pause indication to the upstream sender. The upstream device temporarily stops transmitting traffic for that priority, preventing the downstream buffer from overflowing and thereby supporting zero-packet-loss behavior for the protected traffic class. This capability is important in intelligent computing and data center fabrics carrying storage or high-performance computing workloads that are sensitive to packet loss. Huawei describes PFC as a foundational technology for intelligent lossless networks, often used together with congestion-management mechanisms such as ECN and related optimization features. Therefore, the blank must be filled with PFC in uppercase. The original answer PCF should be corrected to PFC.

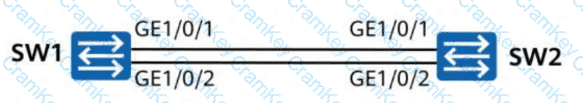

For an Eth-Trunk operating in manual load-balancing mode , the logical Eth-Trunk interface can remain Up as long as at least one member link is operational and properly added to the trunk. Therefore, if GE1/0/1 is Up and GE1/0/2 is Down, Eth-Trunk 1 can still stay Up, making option A correct.

Option B is incorrect because member interfaces in a manual Eth-Trunk do not need to be in identical physical states for the trunk itself to remain operational. Option C is also incorrect because there is no inherent rule here that two-member trunks must have both links active unless a separate minimum-links mechanism has been explicitly configured. No such condition is stated in the question. Option D is false because one of the key purposes of Eth-Trunk is redundancy; requiring all member interfaces to be Up would defeat that design advantage. HCIA-Datacom teaches that Eth-Trunk enhances link reliability by allowing continued forwarding when part of the bundle fails, provided the trunk still has an active forwarding member.
