FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.

The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.

If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in theForwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.

The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.

Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).

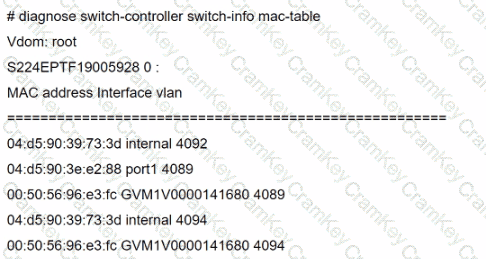

The MAC address " 00:50:56:96:e3:fc " appearing in two different VLANs (4089 and 4094) in the diagnostic output indicates it is a MAC address associated with a device that supports traffic from multiple VLANs. Such a behavior is typical of network infrastructure devices like switches or routers, which are configured to allow traffic from various VLANs to pass through a single physical or logical interface. This is essential in network designs that utilize VLANs to segregate network traffic for different departments or use cases while using the same physical infrastructure.

A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

According to theFortiOS 7.6 Administration Guideand theFortiManager 7.6 Study Guide, the most efficient and scalable method for deploying standardized configurations across a high volume of sites (such as 100 branch offices) isZero-Touch Provisioning (ZTP) through FortiManager.

ZTP allows administrators to createModel DevicesandProvisioning Templateswithin FortiManager before the physical hardware is even unboxed. When a factory-reset FortiGate at a branch office is connected to the internet, it automatically reaches out toFortiCloud(FortiDeploy) to discover its assigned management entity. Once redirected to the centralFortiManager, the FortiGate retrieves its full configuration, including theFortiLinksettings required to manage the local FortiSwitch.

The 7.6 documentation highlights that because the FortiSwitch is managed via FortiLink, its configuration is technically part of the FortiGate ' s managed objects. Therefore, by using FortiManager to push a single template that includes both the FortiGate settings and theSwitch Controllerconfigurations, the team can ensure that every branch office is configured identically and without manual CLI intervention. This method significantly reduces the risk of human error and ensures rapid, consistent deployment across the entire fabric. Options A and B refer to cloud management platforms that are effective but do not offer the same level of integrated, template-driven orchestration for large-scale enterprise ZTP as FortiManager. Option D is incorrect as " FortiSwitch Manager " is not the primary orchestration tool for branch-wide ZTP in a FortiLink-integrated environment.
