According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Private VLANs (PVLANs) provide a mechanism to partition a regular VLAN (the Primary VLAN) into sub-VLANs to control Layer 2 traffic flow within the same broadcast domain.

In a multi-tenant environment requiring strict security, anIsolated VLAN (Option C)is the correct choice to prevent lateral communication between servers. The documentation specifies that ports within an Isolated VLAN are completely blocked from communicating with any other ports in the same Isolated VLAN or any Community VLANs. This effectively eliminates the risk of " east-west " traffic or lateral movement between tenant servers, even if they reside in the same physical switch and logical subnet.

However, the architecture of PVLANs ensures that these isolated ports can still communicate withPromiscuous ports. In this scenario, the shared FortiGate firewall would be connected to a Promiscuous port within thePrimary VLAN (Option D). This allows all tenant servers in the Isolated VLAN to send and receive traffic to the FortiGate for internet access and centralized security filtering, while remaining invisible to one another at the hardware layer.

Community VLANs (Option B)would be inappropriate for this specific requirement because ports within a Community VLANcancommunicate with each other, which violates the requirement for complete isolation between all servers. Therefore, the combination of an Isolated VLAN for the servers and a Promiscuous port for the firewall is the standard design for multi-tenant isolation in FortiSwitchOS 7.6.

The appearance of a serial number in the Native VLAN column for port23 suggests that the switch connected to this port is identified uniquely in the network.Given the options provided:

A standalone switch with the shown serial number is connected on port23 (Option C): This is the most plausible explanation. The FortiSwitch configuration interface is displaying the serial number of a standalone switch that is directly connected to port23. This kind of display helps in identifying and managing individual devices in a network setup, especially in environments with multiple switches.

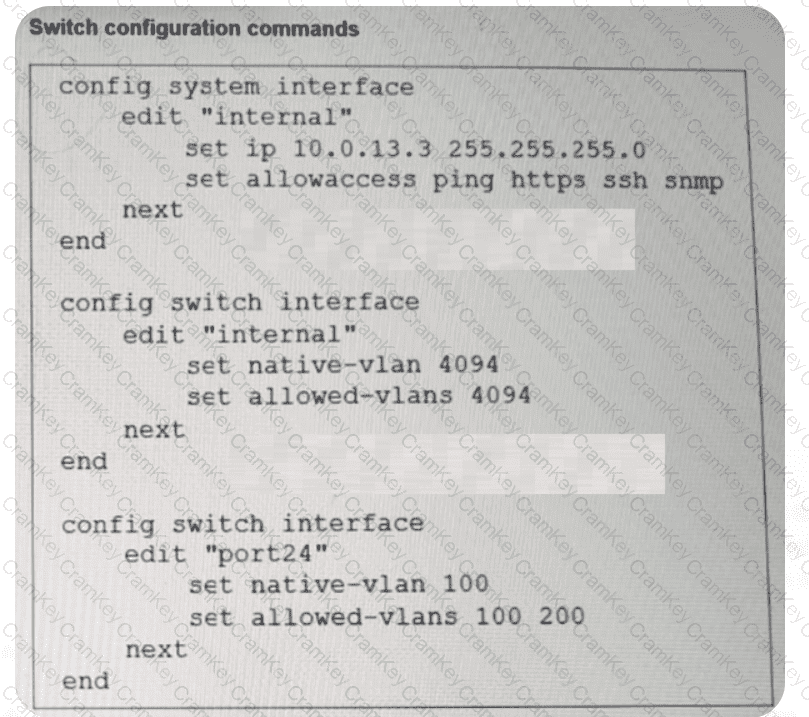

According to theFortiSwitchOS 7.6 Administration Guide (Page 320), management traffic on a FortiSwitch is associated with a specific logical interface, which in this case is the " internal " interface. The exhibit shows that the " internal " interface is configured onVLAN 4094(both as native and allowed). This means that for any management traffic (such as HTTPS, SSH, or SNMP) to reach the switch CPU, it must be able to traverse the physical uplink on VLAN 4094.

However, the configuration forport24(the uplink) is currently restricted. It is set withnative VLAN 100and an allowed-vlans list that only includes100 and 200. Because VLAN 4094 is not included in the allowed list of port24, all frames belonging to the management VLAN (4094) are dropped by the switch ' s ingress/egress filters on the uplink.

To resolve this and restore management access, the administrator has two valid configuration paths based on the provided options:

Option B:Change thenative VLAN on port24 to VLAN 4094. By making 4094 the native VLAN, untagged management traffic can traverse the port, effectively allowing the " internal " interface to communicate with the network.

Option D:Add VLAN 4094 to the allowed VLANs on port24. This ensures that VLAN 4094 is no longer filtered out, allowing management frames to pass through the uplink while maintaining the current native VLAN for other traffic.

Option C is irrelevant as removing a working VLAN (200) does not help the management traffic. While Option A describes an alternate architectural approach (moving management into an already-allowed VLAN), Options B and D represent the direct fixes for the mismatch described in the 7.6 administration documentation.
