VMware Updated 3V0-25.25 Exam Questions and Answers by sayed

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)environment utilizing theVirtual Private Cloud (VPC)model, North/South connectivity is managed by theTransit Gateway (TGW). The TGW acts as the bridge between the VPC-internal networks and the provider-level physical network.

The scenario presents a specific constraint: while an external VLAN exists across all hosts, the actual BGP peering point (the interface to the physical core routers) is restricted to theNSX Edge Cluster. In NSX terminology, when a gateway or service must be anchored to specific Edge Nodes to access physical network services—such as BGP peering, NAT, or stateful firewalls—it must be configured as aCentralizedcomponent.

ACentralized Transit Gateway(Option C) is instantiated on the Edge nodes. This allows the TGW to participate in the BGP session with the core routers on the VLAN that is only accessible to those Edges. The TGW then handles the routing for the VPC's internal segments. Traffic from the ESXi transport nodes (East-West) travels via the Geneve overlay to the Edge nodes, where it is then routed North-South by the Centralized TGW using the physical BGP peer.

Option A is incorrect because "distributed eBGP peering" would require every ESXi host to have peering capabilities, which contradicts the constraint. Option B involves EVPN, which is a significantly more complex and different architecture than what is required for standard VPC North/South access. Option D is an unnecessarily complex routing design that is not the standard VCF/VPC implementation pattern. Thus, the use of a Centralized Transit Gateway on the Edge cluster is the verified design requirement to bridge the gap between the overlay VPC and the localized BGP peering point.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

This scenario describes a classic "Overlapping IP" or "Fenced Network" challenge in a private cloud environment. In many development or lab use cases, users need to deploy identical environments where the internal IP addresses (e.g., 192.168.1.10) are the same across different instances to ensure application consistency.

To allow these identical environments to access the public internet simultaneously without causing an IP conflict on the external physical network,Source Network Address Translation (SNAT)is required. According to VCF and NSX design best practices, theTier-0 Gatewayis the most appropriate place for this translation when multiple tenants or labs need to share a common pool of external/public IP addresses.

When a VM in Lab A sends traffic to the internet, the Tier-0 Gateway intercepts the packet and replaces the internal source IP with a unique public IP (or a shared public IP with different source ports). When Lab B (which uses the same internal IP) sends traffic, the Tier-0 Gateway translates it to adifferentunique public IP (or the same shared public IP with different ports). This ensures that return traffic from the internet can be correctly routed back to the specific lab instance that initiated the request.

Option A (DNAT) is used for inbound traffic (allowing the internet to reach the lab), which doesn't solve the outbound connectivity requirement for overlapping IPs. Option B (Isolation) would prevent communication entirely. Option C (Firewall) controls access but does not solve the routing conflict caused by identical IP addresses. Thus,SNAT rules on the Tier-0 gatewayare the verified solution for providing internet access to overlapping lab environments.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

A critical requirement for the backup and restore process inVMware NSX(and by extension, VCF) is version parity. The NSX Manager backup contains the database schema, configuration files, and state information specific to the version of the software that was running at the time the backup was taken.

When performing a restore into a "clean" environment, the NSX documentation explicitly states that the target NSX Manager appliancemust be of the exact same build versionas the appliance that generated the backup. If an administrator attempts to restore a backup from version 4.1.x onto a newly deployed manager running version 4.2.x or 9.0 (as implies by "latest version"), the restore process will fail because the database schema of the newer version is incompatible with the older data structure.

In aVCF environment, whileSDDC Manager(Option B) handles the lifecycle and replacement of failed nodes, the actual "Restore from Backup" workflow is an NSX-native operation. If the entire cluster is lost, the recovery procedure involves:

Identifying the build number from the backup metadata.

Deploying a single "Discovery" node of that exact build.

Pointing that node to the backup repository (SFTP/FTP).

Executing the restore.

Once the primary node is restored to the correct version, the administrator can then add additional nodes to reform the cluster. Attempting to use the API (Option C) or changing the passphrase (Option A) will not bypass the fundamental requirement for version alignment between the backup file and the installed binary.

===========

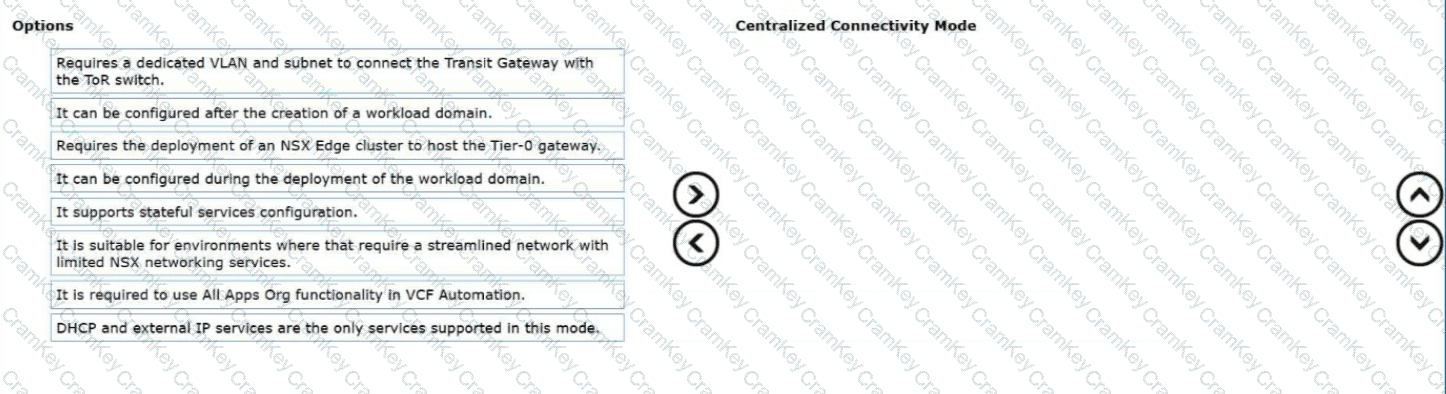

Requires the deployment of an NSX Edge cluster to host the Tier-0 gateway.

It can be configured during the deployment of the workload domain.

It supports stateful services configuration.

It is suitable for environments that require a streamlined network with limited NSX networking services.

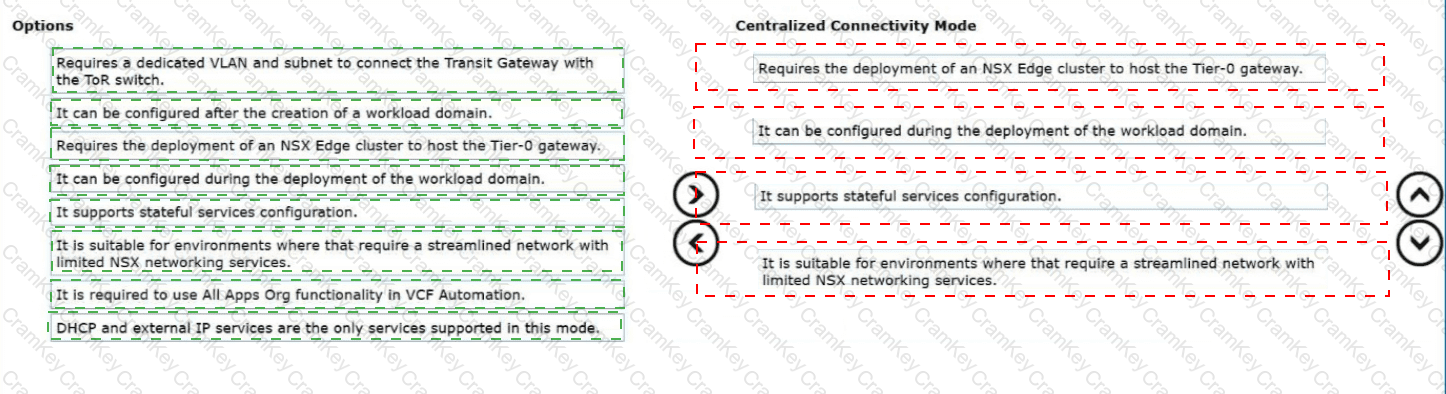

InVMware Cloud Foundation (VCF) 9.0, the networking architecture introduces specialized connectivity modes to cater to different organizational needs, withCentralized Connectivity Modebeing a primary option for streamlined deployments. This mode is fundamentally anchored to the physical infrastructure via localized resources rather than distributed components across the entire cluster.

The most critical technical requirement for this mode is that itrequires the deployment of an NSX Edge cluster to host the Tier-0 gateway. Unlike distributed models, centralized connectivity funnels North-South traffic through specific Edge nodes that serve as the demarcation point between the virtual overlay and the physical Top-of-Rack (ToR) switches. This centralization is what enables the next key characteristic: itsupports stateful services configuration. Because traffic is anchored to specific Service Routers (SR) on Edge nodes, stateful operations such as NAT, Load Balancing, and stateful firewalls can maintain session persistence, which is not natively possible in a purely distributed Active/Active ECMP environment without specialized configuration.

From a lifecycle perspective, this mode is highly integrated into the SDDC Manager workflows andcan be configured during the deployment of the workload domain. This allows architects to define the networking posture of a new domain at "Day 0," ensuring that the necessary Edge resources and Tier-0/Tier-1 hierarchies are provisioned automatically to meet the domain's specific requirements.

Finally, Centralized Connectivity Modeis suitable for environments that require a streamlined network with limited NSX networking services. It provides a "cloud-lite" approach to networking, offering the necessary isolation and security of NSX without the complexity of managing a full-scale distributed fabric. This makes it an ideal choice for smaller workload domains, specialized labs, or legacy application environments that do not require the massive scale of a distributed transit gateway but still need robust stateful security and simplified North-South egress.
