VMware Updated 3V0-24.25 Exam Questions and Answers by indi

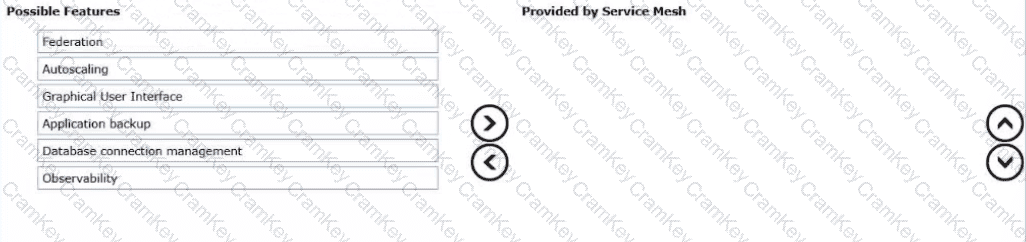

Provided by Service Mesh (choose three, in order):

Federation

Graphical User Interface

Observability

A service mesh is an application networking layer that managesservice-to-service communicationacross Kubernetes clusters, providing consistent connectivity, policy enforcement, and visibility without requiring application code changes.Federationis a service-mesh capability because modern meshes (especially multi-cluster/enterprise implementations) can connect services across multiple clusters and environments, enabling shared identity, cross-cluster service discovery, and uniform policy application (often described as multi-cluster or federated service connectivity). AGraphical User Interfaceis commonly provided alongside the service mesh platform to centrally configure policies (traffic routing, access controls, security settings) and to visualize service topology and health.Observabilityis a core service-mesh outcome: by inserting sidecar proxies (or equivalent dataplane components) into the data path, the mesh can generate consistentmetrics, logs, and distributed tracesfor service traffic, enabling latency/error monitoring and dependency mapping.

The other options are not service-mesh features:Autoscalingis handled by Kubernetes/HPA and metrics pipelines,application backupis typically provided by backup tools (e.g., Velero-like solutions), anddatabase connection managementis handled by application frameworks or database proxies rather than the service mesh itself.

In Kubernetes RBAC, cluster-wide permissions are defined withClusterRoleand granted to a user, group, or service account by creating aClusterRoleBinding. The VCF 9.0 documentation for VKS cluster access describes the RBAC workflow used to grant access: first you “define a Role or ClusterRolefor the user or group,” and then you “create a RoleBinding or ClusterRoleBindingfor the user or group and apply it to the cluster.” This wording reflects the RBAC distinction:RoleBindingis scoped to a namespace, whereasClusterRoleBindingis used when the permissions must apply at thecluster scope(cluster-wide resources and/or across namespaces).

VCF 9.0 further illustrates the purpose of ClusterRoleBinding in a token-auth example: it lists the required objects, including “ClusterRole: This defines the access to the Kubernetes cluster” and “ClusterRoleBinding: This binds the created Service Account with the defined ClusterRole.” That binding step is what grants the subject the cluster-level privileges defined in the ClusterRole, makingClusterRoleBindingthe correct object for permissions to cluster-wide resources.

VCF 9.0 describes a standardized approach to deploying optional capabilities on VKS clusters viastandard packages. In the VCF Automation cloud services overview, VMware listsIstioamong the packages that “can be optionally installed” for VKS. For installing those packages, the VCF CLI provides a dedicatedpackage pluginthat “works on a workload cluster” and exposes explicitinstallworkflows.

The VCF CLI command reference shows the syntax for installing a package:

vcf package install INSTALLED_PACKAGE_NAME --package PACKAGE_NAME --version VERSION (with optional values files and overlays). This is the supported, VCF-aligned way to install standard packages such as Istio onto a VKS workload cluster in a controlled, declarative manner, including tracking reconciliation status and providing configuration via a values file.

Options that rely on ad-hoc downloads (curl) or building tooling (docker build) do not match the documented VCF package-management workflow for VKS standard packages. Therefore, the correct command family isvcf package install.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.
