VMware Updated 3V0-23.25 Exam Questions and Answers by uzair

Linked clone is the correct feature because the administrator needs to test a potentially destructive change without directly modifying the production VM. vSAN Data Protection uses native vSAN ESA snapshot technology to protect virtual machines through protection groups and scheduled snapshots. Beyond simple restore operations, vSAN Data Protection supports clone workflows that allow a VM to be created from a protected snapshot for development, validation, testing, or recovery use cases. A linked clone is especially appropriate because it can be created quickly from an existing snapshot while maintaining dependency on the base snapshot, avoiding the time and capacity impact of a full independent copy. Immutable snapshots protect recovery points from deletion or modification, but they do not themselves provide an isolated test VM. Multiple schedules only control snapshot timing. A protection group defines which VMs are protected. Replication is used for site-level protection and disaster recovery, not for rapidly testing a destructive change against a local production snapshot. Reference topics: vSAN Data Protection, Snapshot Service, Protection Groups, Linked Clone from Snapshot, VM Test and Recovery Workflows.

The required action is to deploy the VMware Live Recovery appliance. In VMware Cloud Foundation 9.0, vSAN Data Protection is powered by VMware Live Recovery and provides local virtual machine protection and remote virtual machine replication for supported vSAN ESA environments. The vSAN Services configuration workflow explicitly states that before vSAN Data Protection can be used, the VMware Live Recovery appliance must be deployed. This appliance provides the data protection control plane required for protection groups, native snapshots, recovery workflows, and replication-based protection. Enabling vSAN advanced options is not sufficient because those settings control cluster behaviors such as repair timers, read locality, thin swap, unmap, and rebalance. Data Services Manager is used for database/data-service lifecycle use cases, not vSAN VM data protection. vSphere Replication can be part of broader site-recovery scenarios, but it is not the required action to enable vSAN Data Protection from the vSAN services workflow. Reference topics: vSAN Data Protection, VMware Live Recovery Appliance, vSAN Services Configuration, Local VM Protection and Replication.

The readings indicate a write-path pressure condition rather than a read-cache, network, or device-health issue. In vSAN ESA, storage devices are organized into a storage pool architecture where NVMe devices contribute both capacity and performance. The dashboard shows low read latency and normal network throughput, so the read path and vSAN network are not the likely bottlenecks. Disk Group Health being green also rules out an obvious device or pool-health failure. AI inferencing environments can still create bursts of small random writes from logs, metadata updates, temporary files, checkpoints, and application-side write activity. When backend write latency rises while reads remain low, the most likely explanation is transient write-buffer or commit-queue pressure. ESA does not use the traditional OSA read-cache tier model, so option B is incorrect. ESA also does not rely on OSA-style inline deduplication and compression behavior for the stated cause, making option C incorrect. Normal network throughput makes option D unlikely. Reference topics: vSAN ESA Architecture, Storage Pool Metrics, Backend Write Latency, VCF Operations Storage Performance.

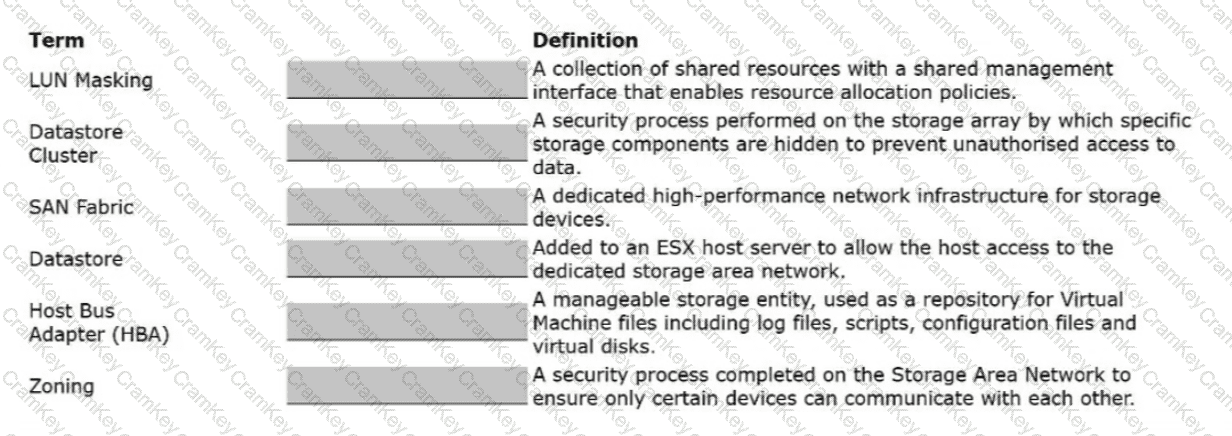

LUN Masking = A security process performed on the storage array by which specific storage components are hidden to prevent unauthorized access to data;

Datastore Cluster = A collection of shared resources with a shared management interface that enables resource allocation policies;

SAN Fabric = A dedicated high-performance network infrastructure for storage devices;

Datastore = A manageable storage entity used as a repository for Virtual Machine files including log files, scripts, configuration files and virtual disks;

Host Bus Adapter (HBA) = Added to an ESX host server to allow the host access to the dedicated storage area network;

Zoning = A security process completed on the Storage Area Network to ensure only certain devices can communicate with each other.

These definitions describe the core components of a Fibre Channel SAN design in a VCF Workload Domain. LUN masking is performed on the storage array and controls which hosts can see specific LUNs, preventing unauthorized access to storage. A datastore cluster is a collection of datastores managed as a shared resource pool, allowing placement and balancing policies through Storage DRS. A SAN fabric is the dedicated high-performance network that interconnects ESX hosts, Fibre Channel switches, and storage arrays. A datastore is the vSphere logical storage container where VM configuration files, virtual disks, logs, and related files reside. A Host Bus Adapter is the physical or virtual adapter in the ESX host that connects the host to the Fibre Channel storage area network. Zoning is performed on the Fibre Channel fabric and controls which initiators and targets can communicate. Together, zoning and LUN masking provide layered access control, while datastores and datastore clusters provide the vSphere consumption model. Reference topics: Fibre Channel SAN Concepts, SAN Fabric, Zoning, LUN Masking, VMFS Datastores, Datastore Clusters.
