Note that private flow has error scope defined as On Error Continue . So when error occurs in private flow , it is handled by this On Error Continue scopewhich sends success response back to main flow and does not throw back an error. So main continues normally and payload is set to Success - main flow.

Hence correct answer is Success - main flow

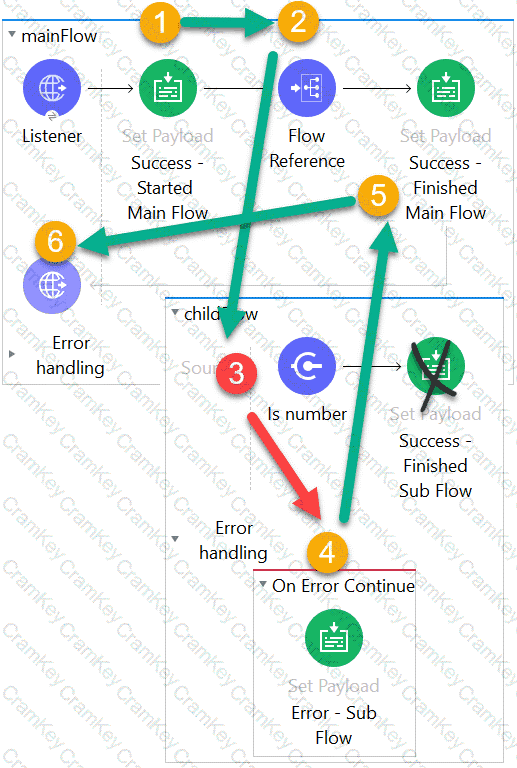

1) HTTP listener received request

2) The Flow Referencecalls the child flow

3) The Is Number validator creates an Error Object because the payload isn’t an integer. Child Flow execution stops

#[error.description] = “payload is not a valid INTEGER value”

#[error.errorType] = VALIDATION:INVALID_NUMBER

4) The OnError Continue handles the errorThe payload is set to “Error – Sub Flow”

5) “Error – Sub Flow” is returned to the main flow as if the child flow was a success. The Set Payload is executed. The payload is reset to “Success – Finished Main Flow”

6) “Success– Main Flow” is returned to the requestor in the body of the HTTP request. HTTP Status Code: 200

As you can see, in the above example, because the error was caught by an On Error Continue scope in the child flow (RED in, GREEN out) when the Mule Message returns to the parent flow, the parent flow knows none-the-different that there was a failure because the on error continue returns a 200 success message. Note that because, to the mainFlow, the childFlow appeared to succeed, the processing of mainFlow resumed after the flow reference.

A picture containing timeline Description automatically generated

Correct answer is Subflow has no error handling implementation where as sync flow has.

Subflow

A subflow processes messages synchronously (relative to the flowthat triggered its execution) and always inherits both the processing strategy and exception strategy employed by the triggering flow. While a subflow is running, processing on the triggering flow pauses, then resumes only after the subflow completes its processing and hands the message back to the triggering flow.

Synchronous Flow

A synchronous flow, like a subflow, processes messages synchronously (relative to the flow that triggered its execution). While a synchronous flow is running, processing on the triggering flow pauses, then resumes only after the synchronous flow completes its processing and hands the message back to the triggering flow. However, unlike a subflow, this type of flow does not inherit processing or exception strategies from the triggering flow.

This type of flow processes messages along a single thread, which is ideally suited to transactional processing
