In UML, a stereotype is a mechanism that extends the vocabulary of the UML in order to create new model elements. The given profile fragment defines a stereotype «architecture decision» that extends the metaclassClass. This stereotype includes three properties: Complexity, Risk, and Status, each typed by specific enumerations: Rank and Status. When a stereotype is applied to a UML element, it does not create physical attributes on the element; instead, it enables the element to carry additional information as specified by the stereotype — in this case, as Stereotype Properties. These properties are effectively tagged values that are associated with the stereotyped element. Hence, when a class is stereotyped as an «architecture decision», it will have the ability to hold values for Complexity, Risk, and Status according to the types defined bythe enumerations in the profile. This is consistent with the rules defined in the UML 2.x Superstructure Specification for profiles and stereotypes.

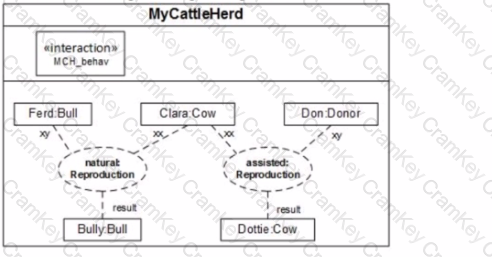

The question is about identifying the correct placeholders X and Y in a UML diagram fragment related to cattle reproduction behavior. The correct answer is option E, where X is “natural::Reproduction_behav” and Y is “assisted::Reproduction_behav”. In UML, the “::” notation is used to indicate a namespace or a package. In this context, it separates the types of reproduction behaviors (natural and assisted) from the behavior itself (Reproduction_behav). This naming convention aligns with UML naming standards for clarity and specificity.

The scope of fUML (Foundational UML) is to define execution semantics for a subset of the UML 2 metamodel that provides a shared foundation for higher-level UML modeling concepts. This includes the precise definition of the execution semantics of that subset, which is intended to be used by a wide range of system types, including physically distributed and concurrent systems without assumptions about global synchronization1.

UML allows the introduction of new concepts that are not part of the standard UML metamodel by creating a profile. To add capabilities for modeling requirements and tracing relationships in UML, a profile can be created where a Class is stereotyped to represent a requirement, and a Dependency is stereotyped to represent the trace relationship. This approach is both practical and conforms to the UML standard's mechanisms for extending the language. It is a common practice to create such profiles for requirements engineering within the UML framework. This conforms to the UML 2 Superstructure Specification, which provides guidelines on creating and applying profiles and stereotypes.
