The construction detail identifies a 1/2-inch tolerance between the steel beam web and the adjacent CLT panel. Therefore, option B is correct.

This is principally a construction-document interpretation question rather than a generic prescriptive IBC dimension. The 2021 IBC does not establish one universal steel-web-to-CLT clearance applicable to every mass timber connection. The required clearance is project specific and is established by the registered design professional through the approved structural drawings and connection details.

The tolerance provides erection clearance for placement of the prefabricated CLT around the steel member while accounting for fabrication and installation variation. It must not be arbitrarily reduced or increased because the gap can affect panel fit, bearing conditions, fastener alignment, fire-protection continuity, acoustic treatment and any specified joint-filling material.

Under the special-inspection framework, the inspector must compare the installed connection directly with the approved construction documents. Any condition that does not maintain the specified 1/2-inch clearance—or any undocumented field modification to the CLT or steel connection—must be reported and resolved through the registered design professional rather than accepted solely on the contractor’s direction.

References/Topics: Approved structural details; 2021 IBC Sections 1704.2 and 1705.5; inspection of mass timber erection, anchorage and connections.

Two layers of 5/8-inch Type X gypsum wallboard are required for the condition shown, so option D is correct. The relevant AWC TR10 connection-protection methodology distinguishes between outer gypsum layers and the base layer immediately adjacent to the connection .

For 5/8-inch Type X gypsum board, an outer layer contributes 40 minutes. However, when gypsum board is being relied upon as the complete thermal-separation protection for a connection, TR10 reduces the contribution of the final/base layer to 50 percent. Therefore, the base layer contributes 20 minutes , while the second, exterior layer contributes 40 minutes . The total is:

20 minutes + 40 minutes = 60 minutes .

That satisfies the one-hour required protection period.

This is why simply looking at the normal 40-minute contribution of one 5/8-inch Type X layer would be incorrect for this connection condition. TR10 expressly uses the reduced base-layer contribution when gypsum constitutes the connection protection. The same methodology shows that four 5/8-inch Type X layers are needed for 120 minutes: 20 + 40 + 40 + 40 = 140 minutes, satisfying two hours.

References/Topics: AWC Technical Report No. 10, Sections 4.4.2 and connection-protection examples. TR10 states that outer 5/8-inch Type X layers provide 40 minutes each while the base layer provides 20 minutes.

===============

IBC Table 722.7.1(2) assigns a 40-minute protection contribution to 5/8-inch Type X gypsum board . Therefore, option D is correct.

The same table assigns 25 minutes to 1/2-inch Type X gypsum board. Consequently, option B overstates the protection contribution of the thinner Type X panel. Ordinary gypsum board values appearing elsewhere in Section 722 cannot simply be substituted for the specific mass timber noncombustible protection values in Table 722.7.1(2). Options A and C therefore do not state the protection contribution recognized by the mass timber table.

These assigned values are particularly important when multiple layers are required. For example, a two-hour building element requires at least 80 minutes of noncombustible protection under Table 722.7.1(1), which can be satisfied prescriptively with two properly installed layers of 5/8-inch Type X gypsum board, each contributing 40 minutes.

The contribution is valid only when the gypsum board is installed and fastened in accordance with Section 722.7.2.

References/Topics: 2021 IBC Tables 722.7.1(1) and 722.7.1(2); Section 722.7.2; Type X gypsum noncombustible protection.

===============

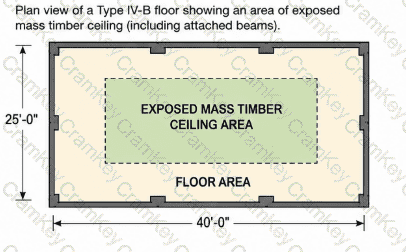

The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section 602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas—including attached mass timber beams—to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.

The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.

The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.

The inspector must additionally determine whether another exposed wall or ceiling region exists nearby. Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.

===============
