HP Updated HPE6-A86 Exam Questions and Answers by albi

The correct answer is B. The switch control plane is shared. HPE Aruba Networking documentation explains that Virtual Switching Framework, or VSF, stacks multiple individual switches into a single logical device using standard Ethernet links. Once the VSF stack is formed, the interconnected switches operate as one virtual switch with a single control plane. HPE Aruba documentation also describes VSF as providing a single point of management access with a shared control plane across all stack members. Option A is incorrect because member IDs are part of the VSF configuration and may be assigned or changed during stack setup. Option C is incorrect because VSF is not universally limited to two members; supported stack size depends on the switch family and software support. Option D is incorrect because an independent management plane describes VSX more than VSF. HPE’s VSF-versus-VSX comparison identifies VSF as having a single management plane, while VSX has dual management planes.

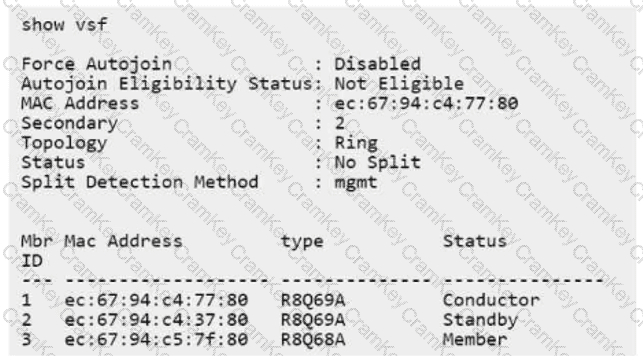

The correct answer is C. The management port is used for multi-active detection. The show vsf output clearly shows Split Detection Method : mgmt, which means the stack is using the management interface as the VSF split-detection method. HPE Aruba Networking AOS-CX VSF documentation states that VSF split detection provides a mechanism for stack fragments to discover each other if a stack split occurs. Once fragments are discovered, the fragment with the primary member remains active, while the other fragment becomes inactive and its non-VSF interfaces are brought down to avoid duplicate MAC or IP addresses and reduce network disruption. The same guide states that the 6200 and 6300 switch series support split detection through the management interface and that the CLI command to enable it is vsf split-detect mgmt. Option A is incorrect because the output does not show peer-switch-based detection. Option B is incorrect because “Status: No Split” is the current state, not the detection method. Option D is incorrect because a ring changing to a chain is a topology change, but the configured integrity method shown is management-based split detection. ( arubanetworking.hpe.com )
