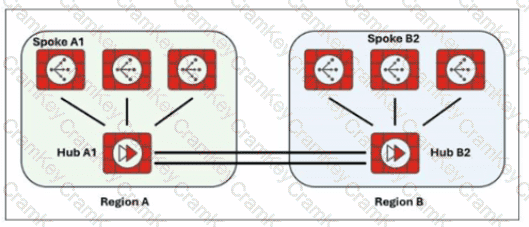

To allow spokes in different hub-and-spoke groups to establish ADVPN shortcuts, the hubs must be configured to forward and send ADVPN shortcut offers. The key required settings on the hub are auto-discovery-forwarder (for VPNs to hubs) and auto-discovery-sender (for VPNs to spokes). This ensures the hub can facilitate and advertise ADVPN shortcut offers between spokes.

In FortiOS 7.6, when SD-WAN is enabled, physical and logical WAN interfaces are added as SD-WAN members and are abstracted behind the SD-WAN interface (virtual-wan-link or SD-WAN zone). Traffic forwarding decisions are then made by SD-WAN rules instead of individual interfaces.

As documented in the FCSS SD-WAN 7.6 curriculum and Fortinet SD-WAN architecture guides, firewall policies must reference the SD-WAN interface or SD-WAN zone, not the individual WAN interfaces that are members of SD-WAN. Therefore, during the configuration update process, existing firewall policies that reference physical WAN interfaces must be updated to reference the SD-WAN interface.

Option A is incorrect because routing configuration does not require replacing interface references when SD-WAN is enabled. Static and dynamic routes typically point to the SD-WAN interface automatically, and SD-WAN rules handle path selection.

Option B is incorrect because SD-WAN is a built-in FortiOS feature. It does not require a separate license and does not require a reboot when enabled.

Option D is incorrect because interfaces must remain enabled to function as SD-WAN members. Disabling an interface would prevent SD-WAN from using it for traffic forwarding.

Therefore, the required action during the SD-WAN configuration update process is to replace references to interfaces used as SD-WAN members in the firewall policies, which corresponds to option C.

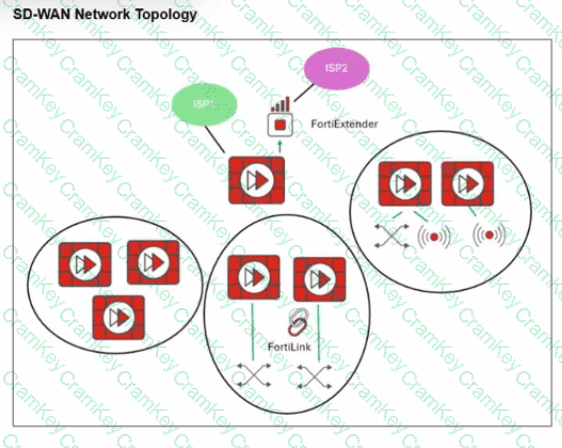

In Fortinet SD-WAN, hubs should not have extensions like FortiSwitch, FortiAP, or FortiExtender installed, as these can affect hub functionality and scalability. While all device types can be included in the topology, the hubs must be "clean" FortiGate devices without such extensions to ensure proper ADVPN and overlay management.

The FortiManager SD-WAN overlay template preview, as described in the document, indicates:

"When the device is acting as a hub, the configuration enables the sending of ADVPN shortcut offers to spokes. This means the hub can facilitate on-demand dynamic shortcut tunnel creation between spokes, improving performance for branch-to-branch communication by bypassing the hub for inter-branch traffic after initial discovery."

Such a role is critical in scalable ADVPN topologies, enabling hub devices to optimize overlays dynamically.
