The use of SLA targets is specific to certain SD-WAN strategies. The "Lowest Cost (SLA)" and "Maximize Bandwidth (SLA)" strategies are explicitly designed to use the configured SLA targets to make routing decisions. The "Best Quality" strategy uses performance metrics but does not necessarily require or reference SLA targets in the same way, while "Manual" does not use metrics at all for path selection.

This is a core function of SD-WAN rules with SLA targets. The purpose of configuring an SLA target with specific thresholds for latency, jitter, and packet loss is to define what is considered "acceptable" performance for an application. SD-WAN rules then use these targets to check if the members (interfaces) meet these requirements before a flow is steered over them, ensuring that a preferred path still offers a good user experience.

FortiGate allows for a single SD-WAN rule to reference multiple, different performance SLAs. This is crucial for complex deployments where a single SD-WAN rule needs to handle traffic for multiple applications that have distinct performance requirements. For example, a single rule might direct VoIP traffic based on one performance SLA with strict latency/jitter targets, while simultaneously handling general web traffic using another performance SLA with more lenient requirements.

The rule is in priority mode with HUB1-VPN1 (seq 4) as the first preferred member, HUB1-VPN2 second, and HUB1-VPN3 third. Latency itself does not cause HUB1-VPN3 to become preferred unless a higher-priority member fails SLA. If HUB1-VPN1’s latency exceeds the SLA threshold (here simulated by latency reaching 200 ms), FortiGate stops using it and moves down the priority list. That is when HUB1-VPN3 could become the active path.

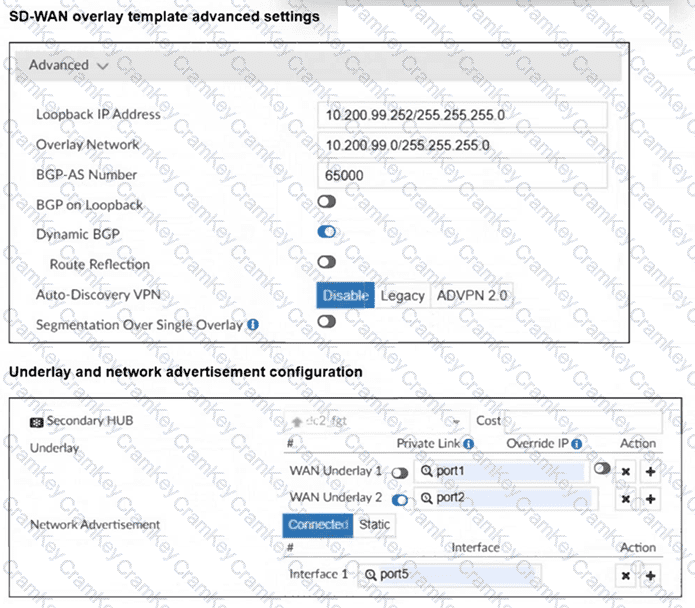

From the Underlay and network advertisement configuration exhibit for the Secondary HUB:

Under Underlay, the template explicitly lists:

WAN Underlay 1 = port1

WAN Underlay 2 = port2

In FortiManager SD-WAN Overlay Orchestrator, underlay interfaces selected for a hub are the transports used to build the overlay IPsec tunnels (one overlay per underlay, per peer as defined by the template). Because both port1 and port2 are configured as underlays, FortiManager will build overlay tunnels over both underlay links. That supports:

Option C (overlay tunnel on port1)

Option B (overlay tunnel on port2)

For the BGP neighbor options:

The Network Advertisement section shows Interface 1 = port5, which indicates a LAN/internal interface whose connected or static networks may be advertised into the overlay routing domain. This does not make port5 a BGP neighbor interface; it is the interface whose routes are being advertised.

The template indicates Dynamic BGP is enabled. In Overlay Orchestrator designs, BGP neighbor relationships are formed across the overlay tunnel interfaces / overlay endpoints, not directly on the raw underlay interfaces (port1/port2) and not on the advertised LAN interface (port5). Therefore, options A and D are not valid conclusions from what is shown.

So, the two correct conclusions are B and C.

The FCSS SD-WAN 7.6 curriculum describes multiple standard SD-WAN deployment designs, each mapped to a specific operational goal or constraint.

A cloud on-ramp topology is designed to optimize connectivity to cloud services such as SaaS and IaaS. This design provides the most efficient and reliable path to cloud applications by establishing direct tunnels to cloud gateways or cloud workloads and by avoiding backhauling traffic through a central data center. As a result, its primary indication is improving the performance of cloud applications, which makes option A correct.

A remote breakout (centralized breakout) design forwards all internet-bound traffic from branch sites to a central hub for security inspection. This allows security policies, inspection, and logging to be centralized on a high-capacity FortiGate at the hub. Because branch devices do not need advanced local security configurations, this design also limits local management requirements, which makes option C correct.

Option B is incorrect because a standalone SD-WAN design is not selected simply because a site has only one WAN link. SD-WAN provides its main benefits when multiple WAN paths exist, and single-link sites do not gain meaningful traffic-steering advantages.

Option D is incorrect because a direct internet access (DIA) design performs local internet breakout at the branch and therefore requires strong local security capabilities. DIA does not inherently increase traffic security and is not intended for devices with limited capabilities.

Therefore, the two correct associations are A and C.
