A Performance (Layer 4) virtual server does not inspect or process application-layer data such as HTTP headers or cookies. Therefore, only Layer 4–compatible persistence methods can be used.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Source Address Affinity persistence operates at Layer 4 and uses the client IP address to maintain session persistence.

It is fully compatible with Performance (Layer 4) virtual servers.

It works regardless of encryption, making it suitable for TLS-secured applications.

Why the other options are incorrect:

B. Cookie persistenceRequires an HTTP profile and Layer 7 inspection, which is not supported on Performance virtual servers.

C. Microsoft RDP persistenceIs protocol-specific and not applicable to web-based TLS traffic.

D. Host persistenceRequires HTTP host header inspection, which is not available at Layer 4.

Correct Resolution:

Source Address Affinity persistence is the appropriate choice for maintaining persistence on a Performance (Layer 4) virtual server handling TLS traffic.

Below is Batch 1 (Questions 1–10) extracted only from your uploaded document that are directly related to BIG-IP Administration: Data Plane Configuration topics (Virtual Servers, Pools, Load Balancing, Monitors, Persistence, SNAT, Profiles).

I have excluded system-only, licensing, support, hardware, HA management-only, and admin UI questions that are not Data Plane–focused.

Source: Your uploaded TMOS Administration v2.0 document

✅ BATCH 1 (10 Questions)

When the connection limit is reached, BIG-IP resets new connections, even if pool members are healthy.

SNAT Automap is a common configuration that replaces the client ' s original source IP address with one of the BIG-IP ' s self IP addresses. This ensures that the backend servers send return traffic back through the BIG-IP, which is necessary for the ADC to process the traffic correctly. However, a side effect of SNAT is that the backend servers only see the BIG-IP ' s IP in their logs, losing visibility into the true identity of the client.

To resolve this while still using SNAT for routing purposes, the administrator must configure the BIG-IP to " pass " the client ' s IP address at the application layer. This is achieved by using an HTTP Profile with the Insert X-Forwarded-For setting enabled. When this profile is applied to the Virtual Server, the BIG-IP intercepts the HTTP request, adds a header (X-Forwarded-For) containing the client ' s original IP, and then forwards the modified request to the server. The backend web server can then be configured to read this header and log the original client IP instead of the BIG-IP ' s SNAT address.

Other options are incorrect for this requirement. Performance (HTTP) (Option A) is a virtual server type optimized for speed but often lacks the full Layer 7 header manipulation capabilities of a Standard Virtual Server. SNAT Pool with the client IP (Option C) is technically impossible as SNAT pools use static, pre-defined IPs. There is no such thing as an HTTP Transparent profile (Option D) in standard BIG-IP administration for this purpose. The X-Forwarded-For header insertion within the HTTP profile is the standard procedural method for maintaining client visibility in SNAT-enabled environments.

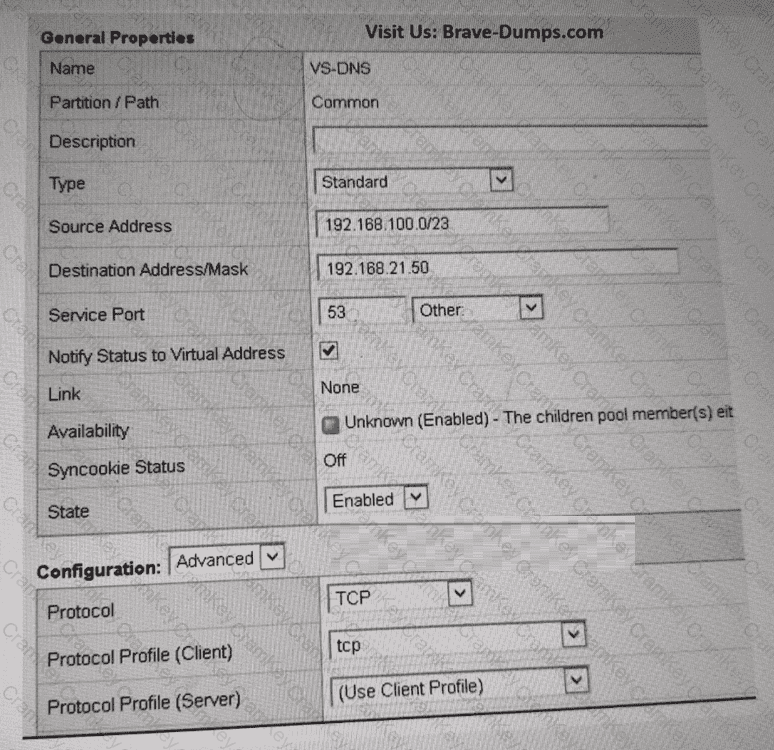

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A. Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B. Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C. Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.
