VMware Updated 3V0-21.25 Exam Questions and Answers by alicia

VCF 9.0 introduces a more granular RBAC model to support complex operational requirements. To meet the first requirement regarding cluster lifecycle management, the administrator must assign the Cluster Administrator role to the operations group. This role provides the specific permissions needed to perform actions such as scaling, patching, and modifying the configuration of Supervisor or TKG clusters. By scoping this at the cluster level (or within the project containing those clusters), the operations group is empowered to maintain the resources without having broad administrative access to other organizational settings. For the second requirement, the Security Administrator role in NSX must be assigned to the network administrators group. By scoping this to the project, the network admins can manage distributed firewall rules, gateway policies, and security profiles specific to that project’s VPCs while being prevented from interfering with the compute lifecycle managed by the operations team. This separation of duties is essential for large-scale enterprise deployments to prevent unauthorized security changes or accidental cluster disruptions.

The NSX Transit Gateway (TGW) is the architectural cornerstone of regional networking in VCF 9.0. In previous versions, administrators had to manually manage complex Tier-0/Tier-1 relationships for each tenant; however, VCF 9.0 abstracts this through the TGW. When a Region is created, the system automatically instantiates the Transit Gateway to act as the high-speed "backplane" for the organization. Every VPC created within that region connects to this TGW, which then handles all East-West traffic between VPCs and North-South traffic toward the corporate WAN or Internet. This design ensures that the routing logic is consistent, automated, and isolated from the physical underlying fabric. The TGW works in conjunction with VPC Connectivity Profiles to determine if a VPC is completely isolated or has an external path, providing a scalable and secure way to manage hundreds of isolated network segments without manual intervention.

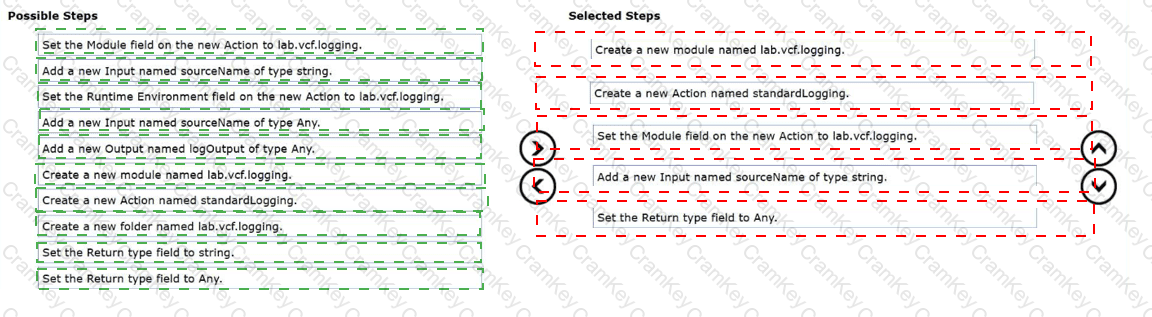

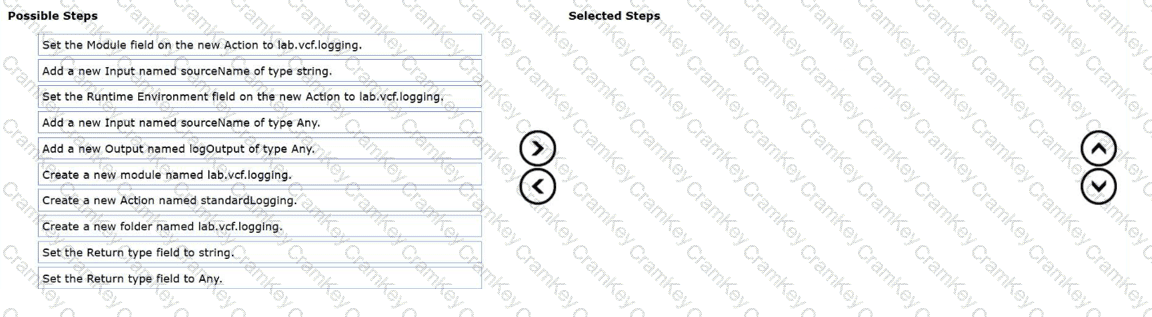

Create a new module named lab.vcf.logging.

Create a new Action named standardLogging.

Set the Module field on the new Action to lab.vcf.logging.

Add a new Input named sourceName of type string.

Set the Return type field to Any.

In VMware Cloud Foundation (VCF) 9.0, extensibility through the Operations orchestrator (formerly vRealize Orchestrator) requires a structured approach to modularity and data typing. To store an action in a specific path like lab.vcf.logging, an administrator must first create a new module with that name, as modules serve as the organizational namespaces for actions. Once the container exists, the administrator creates the Action named standardLogging and explicitly sets the Module field to the newly created namespace to ensure correct storage and accessibility across the orchestrator server.

The configuration of inputs and outputs is critical for programmatic integration. By adding an input named sourceName of type string, the administrator ensures the action can receive metadata from calling workflows exactly as specified in the technical requirements. Regarding the output, the requirement states the script returns a JSON object format. In the orchestrator's JavaScript-based engine, while a string could technically hold JSON text, the "Any" return type is the standard and verified method for returning structured objects. This allows subsequent workflow elements to programmatically parse and interact with the JSON properties without manual conversion, fulfilling the requirement for sophisticated log data handling and troubleshooting within the VCF 9.0 framework.

The Provider Management Portal in VCF 9.0 is the centralized interface where the cloud provider administrator manages all foundational infrastructure. When creating a Region, the administrator must select from the infrastructure already integrated into the VCF Automation appliance. By navigating to the infrastructure or "Cloud Accounts" section within the Provider Management Portal, the administrator can see the status of all vCenter Server and NSX Manager connections. This portal provides the "provider-view" of the entire fleet, allowing the admin to verify which vCenter instances are currently healthy, licensed for VCF 9.0, and have the Supervisor enabled. This step is critical because a Region cannot be successfully created if the underlying vCenter connection is down or the integration is incomplete. The Organization Portal, by contrast, is a tenant-facing interface and does not have the visibility into the global infrastructure required to perform these "Day 0" provider setup tasks.
