For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.

DataTypes in UML are a type of classifier that represents a set of values that do not have identity, which means that two instances of a DataType are indistinguishable if all their attributes are equal. This is in contrast to instances of Classes, which are distinguishable by their identity - each instance is considered unique even if their attributes have the same values.

Option A is incorrect because DataTypes can indeed have operations in UML. Option B is also incorrect; DataTypes can have attributes of any complexity. Option D is incorrect because DataTypes can also have features inherited from their super DataTypes; it is not solely about instantiation.

The UML 2.5 specification discusses DataTypes in section 10.5.8, stating that DataTypes do not have an identity and are often used to type attributes and operation parameters. The equality of DataType instances is based on the equality of their attribute values. Classes, however, are described in section 9.2 of the UML 2.5 specification as elements that can have identity, and instances of a Class are distinguished based on that identity.

Generalization in UML is a modeling relationship that connects a general classifier (like a class) to a more specific classifier. It is akin to an "is a" relationship where the specialized element (subclass) inherits features from the general element (superclass), thus allowing instances of the subclass to substitute for instances of the superclass. For example, if "Bird" is a superclass and "Eagle" is a subclass, an instance of "Eagle" can substitute for an instance of "Bird". This relationship is fundamental in object-oriented modeling for representing inheritance. According to the UML 2.5 specification, generalization allows a subclass to inherit part or all of the structure and behavior of a superclass.

The correct answer is Option C based on the UML 2 Foundation concepts for activities and pre/postconditions.

Analysis of the Diagram in Option C:

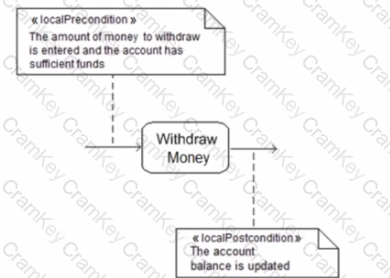

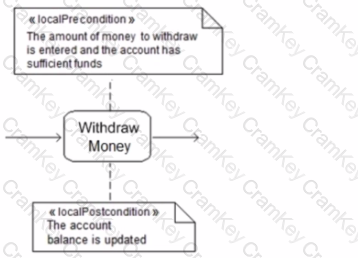

• The diagram depicts an activity named "Withdraw Money".
• There are two diamonds preceding the activity, representing preconditions. Preconditions are conditions that must be true before the activity can be executed.
• The text within the first diamond indicates that "the amount of money to withdraw is entered".
• The text within the second diamond indicates that "the account has sufficient funds".
• This aligns with the scenario where the user must enter a withdrawal amount and the account must have enough money to cover the withdrawal before the "Withdraw Money" activity can proceed.
• Following the activity, there's a diamond labeled "postcondition," indicating a condition that becomes true after the activity is completed.
• The text within the postcondition diamond states that "the account balance is updated." This reflects the scenario where the account balance is updated after a successful withdrawal.

Comparison with Other Options:

• Option A, B, and D do not explicitly show preconditions and postconditions using the diamond notation, making them less suited to represent the scenario where certain conditions need to be met before and after the action.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Pre/Postconditions https://www.omg.org/spec/UML/2.4/Superstructure/PDF
