Nokia Updated 4A0-D03 Exam Questions and Answers by kenza

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

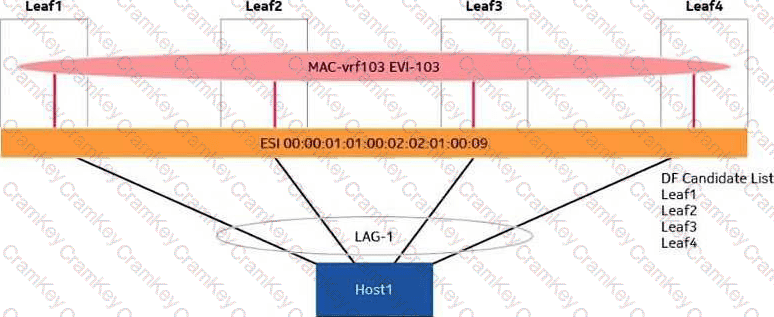

Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Asymmetric routing relies heavily on host MAC/IP information because the ingress PE performs routing into the destination subnet and then sends the frame across the overlay using the destination MAC-VRF/VNI. This means PEs require enough ARP and MAC/IP binding information to forward traffic toward remote hosts correctly. If a host has multiple IP addresses on the same interface, separate EVPN route type 2 advertisements may be needed to communicate each IP-to-MAC binding. The ingress and egress PEs participate in MAC and IP forwarding across the end-to-end service path, but the forwarding responsibilities differ by direction and stage. The false statement is option C. The statement says all MAC-VRFs connected to the L3 EVPN network must exist on each PE, but that is not the correct requirement in this question's verified answer set. In practical EVPN designs, the exact MAC-VRF placement depends on whether the service is implemented as asymmetric, symmetric, interface-less, or interface-ful routing. Here, the course answer marks the universal MAC-VRF requirement as false. Reference: asymmetric L3 EVPN routing, RT-2 MAC/IP advertisements, ARP and MAC forwarding behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

EVPN route type 4 is the Ethernet Segment route. Its core role is to advertise Ethernet Segment membership so that PEs attached to the same multi-homed segment can discover each other. This discovery is essential for multi-homing procedures such as DF election, split-horizon behavior, and redundancy handling. When multiple PEs advertise the same ESI, the EVPN control plane can build the candidate set of PEs that participate in that Ethernet Segment. This enables DF election for BUM forwarding and supports the correct interpretation of the segment's redundancy model. The incorrect statement is option C. The election algorithm itself is not the basic function of the route type 4 advertisement in the way the question frames it. The route type is primarily about Ethernet Segment discovery and participation; the algorithmic decision process is derived from configured DF election behavior and candidate information, not from route type 4 acting as a generic algorithm identifier. Therefore, route type 4 enables DF procedures, but it is not described as the mechanism that identifies the election algorithm type. Reference: EVPN RT-4 Ethernet Segment route, DF election, multi-homing discovery.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

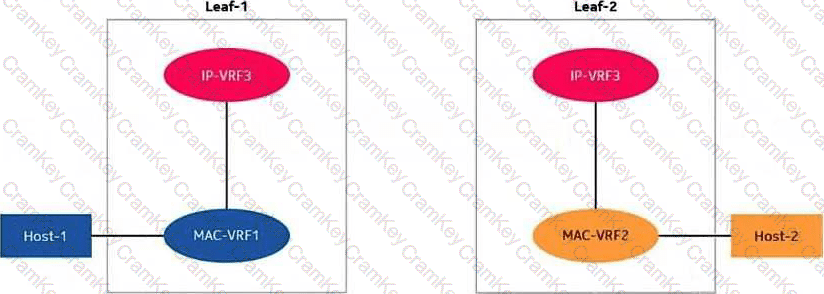

An IRB interface is the logical connection point between a Layer 2 MAC-VRF and a Layer 3 IP-VRF. It provides the routed gateway function for hosts in the bridge domain while allowing traffic to move into the routed VRF for inter-subnet forwarding. The correct statement is that when an IRB sub-interface has multiple IP addresses, one can be designated as the primary. This is important because the primary address is used for normal gateway or subnet behavior when more than one address is present on the same routed interface context. Option A is inaccurate because the question is about an IRB sub-interface, not a generic subinterface selection between bridge or routed access modes. Option B is not the defining multi-homing model; EVPN multi-homing is implemented through Ethernet Segment association and MAC-VRF attachment behavior, not by adding multiple IRB subinterfaces for multi-homing. Option D is also wrong because the IRB is the shared logical link between the MAC-VRF and IP-VRF; the design does not require separate IRB subinterfaces on each side as independent constructs. Reference: SR Linux IRB configuration, MAC-VRF to IP-VRF interconnection, primary IP addressing.

================
