For devices like printers that do not support 802.1X authentication, you can configure static MAC bypass. This allows traffic from devices with specific MAC addresses to bypass 802.1X authentication and gain network access directly.

References:

From the Juniper documentation, you can implement static MAC bypass for devices that do not support 802.1X by configuring their MAC addresses to be statically permitted on the network.

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

shell

Copy code

# Example configuration for static MAC bypass

set protocols dot1x authenticator interface ge-0/0/1.0 mac-radius static-mac 00:11:22:33:44:55

commit

These configurations and explanations should address the questions accurately based on the provided information and referenced documents.

Understanding the Problem:

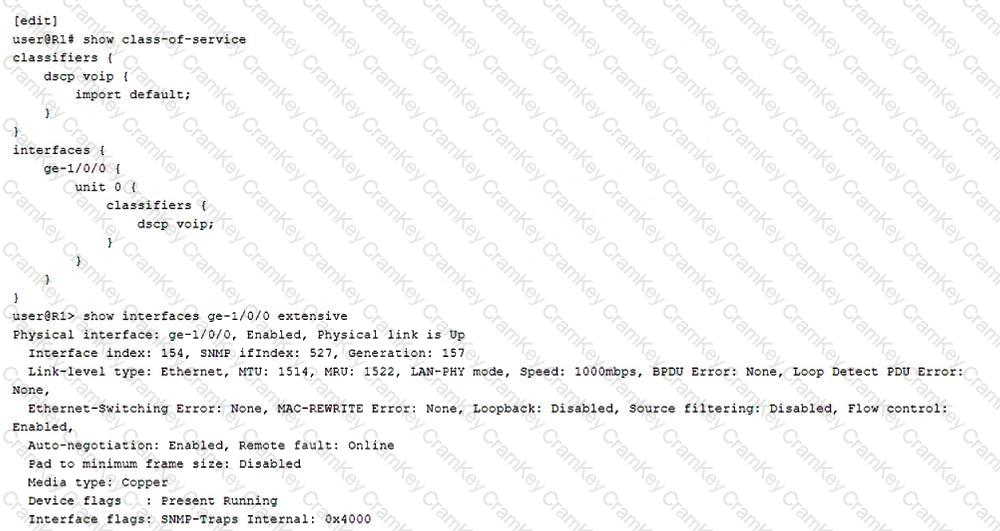

The issue involves voice packets being dropped in a newly implemented VoIP network.

Voice packets are marked correctly for the expedited forwarding (EF) queue, indicating that classification is working as intended.

Dropped packets suggest that there may be insufficient resources allocated to handle the traffic in the EF queue.

Key Concepts:

Classifiers: These are used to mark packets so that they can be placed into the appropriate forwarding class. This step is already correctly implemented as indicated by the problem statement.

Rewrite Rules: These ensure that packets retain their markings as they transit the network, but this is not the issue here as packets are already marked correctly.

Policers: These control the rate of traffic to ensure it does not exceed specified limits, but policing is not required here as the issue is with packet drops due to insufficient resources.

Schedulers: These allocate resources (bandwidth, priority) to different queues to ensure that high-priority traffic (like VoIP) is transmitted with minimal delay and packet loss.

Solution: Configuring a Scheduler:

To prevent the EF queue from being starved of resources and to ensure voice packets are not dropped, you need to configure a scheduler. This scheduler will allocate appropriate bandwidth and priority to the EF queue.

Configuring Scheduler on Juniper Devices:

Here is a sample configuration to allocate bandwidth to the expedited forwarding queue:

set class-of-service schedulers voip-scheduler transmit-rate percent 20

set class-of-service schedulers voip-scheduler priority strict-high

set class-of-service forwarding-classes queue 1 expedited-forwarding

set class-of-service forwarding-classes queue 1 scheduler voip-scheduler

In this configuration:

The voip-scheduler is set to allocate 20% of the bandwidth and is given strict-high priority to ensure voice packets are transmitted with the highest priority.

The EF queue (queue 1) is associated with the voip-scheduler.

Verification:

Ensure the scheduler is applied and active on the interfaces handling the VoIP traffic.

Monitor the interface statistics to ensure that packet drops are minimized and voice quality issues are resolved.

References:

Juniper Networks Documentation on Class of Service

Configuring Schedulers

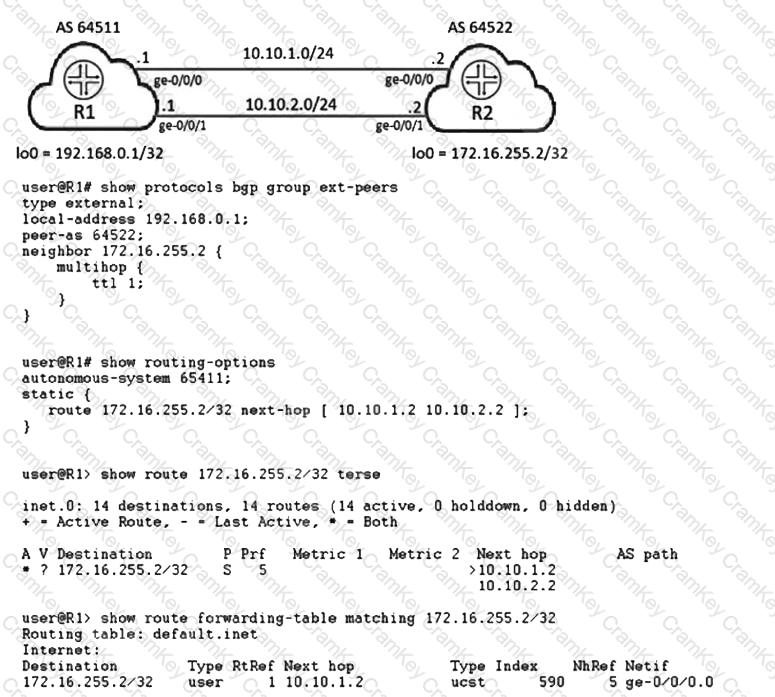

B - because only one next hop in forwarding table C- becuse TTL=1 limiting bgp connection to be established only over loopbacks interface https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/multihop-sessions.html Use the multihop statement to alter the default use of the neighbor 's physical address. In addition, you can also specify a time-to-live (TTL) value in the BGP packets to control how far they propagate. We use a TTL value of 1 to ensure that the session cannot be established across any other backdoor links in the network.

Understanding the Problem:

The requirement is to provide Layer 2 connectivity between campus sites using Ethernet switches through a metro Ethernet service provider who is using Q-in-Q tagging.

Design Considerations:

VXLAN Implementation:

VXLAN (Virtual Extensible LAN) can be used to extend Layer 2 networks over Layer 3 networks. It is often used to provide scalability and flexibility in modern data center networks. In this case, VXLAN could be used to encapsulate Layer 2 frames within UDP packets, allowing them to be transported over the service provider’s network.

S-Tag Configuration:

Q-in-Q tagging, also known as 802.1ad, involves an outer tag (S-Tag) and an inner tag (C-Tag). The service provider network uses the S-Tag to identify and segregate customer traffic. Therefore, each campus switch must have the correct S-Tag (300 in this case) configured to ensure the service provider can correctly handle and route the traffic.

References:

Juniper Networks: Understanding VXLAN

Configuring Q-in-Q Tagging
