A Juniper Apstra rack is a physical entity that contains one or more network devices, such as leaf nodes, access switches, or generic systems. A rack is used to organize and manage the network devices in the Apstra software application. A rack has the following characteristics:

It stores information on how leaf nodes connect to generic devices. This is because a rack can include generic systems, which are devices that are not managed by Juniper Apstra, but are connected to the network. A generic system can be a server, a firewall, a load balancer, or any other device that has a network interface. A rack stores the information on how the leaf nodes, which are the devices that provide access to the end hosts, connect to the generic devices, such as the port number, the link speed, the LAG mode, and the roles1.

It has a rack type, which defines the type and number of leaf devices, access switches, and/or generic systems that are used in the rack. A rack type is a resource that is created in the data center design phase, and it does not specify the vendor or the model of the devices. A rack type can be predefined or custom-made, and it can be used to create multiple racks with the same structure and configuration2.

It has a rack build, which assigns the specific vendor and model of the devices to the rack. A rack build is created in the staged phase, and it uses the rack type as a template. A rack build can also assign the resources, such as the IP addresses, the ASNs, and the VNIs, to the devices in the rack3.

It has a rack deployment, which applies the network configuration and services to the devices in the rack. A rack deployment is performed in the active phase, and it uses the rack build as a reference. A rack deployment can also monitor the network performance and compliance of the devices in the rack4.

The following three statements are incorrect in this scenario:

It stores information on how pods connect to super spines. This is not true, because a rack does not store any information on the pod or the super spine level of the network. A pod is a cluster of leaf and spine devices that form a 3-stage Clos topology, and a super spine is a device that connects multiple pods in a 5-stage Clos topology. A rack only stores information on the leaf and the access level of the network1.

It stores IP address and ASN pool information. This is not true, because a rack does not store any information on the IP address and ASN pools. IP address and ASN pools are resources that are created in the data center design phase, and they contain a range of IP addresses and ASNs that can be assigned to the devices and the virtual networks. A rack only uses the IP address and ASN pools to assign the resources to the devices in the rack build2.

It stores device port data rates and vendor information. This is not true, because a rack does not store any information on the device port data rates and vendor information. The device port data rates and vendor information are specified in the rack build, which assigns the specific vendor and model of the devices to the rack. A rack only uses the rack build to apply the network configuration and services to the devices in the rack deployment3.

Apstra manages devices using IP connectivity over the management network, which is a Layer 3 relationship. Whether you are using on-box agents or off-box agents, the controller (or cluster) communicates with the fabric devices using IP reachability (for example, to exchange management traffic, retrieve discovery state, collect telemetry, and push configuration). This is why Layer 2 adjacency is not required between the Apstra server and the managed switches; the essential requirement is routable IP connectivity and appropriate access (credentials/agent connectivity) to the device management interfaces.

From a platform perspective, Apstra does not need a dedicated physical NIC per managed device. Instead, the server/VM requires connectivity to the management network through a single network adapter, and that interface can route to all managed devices. In a typical data center deployment, the Apstra controller VM sits on a management VLAN/subnet and reaches the entire fabric through routed management. This scales operationally: adding devices does not require adding additional server NICs; it only requires IP reachability and capacity planning for telemetry and agent workloads. Thus, the correct statements are that Apstra uses Layer 3 to communicate with managed devices and that it requires a single network adapter for that management connectivity model.

In Apstra 5.1, Security Policies express traffic-permit/deny intent between defined fabric endpoints, and Apstra compiles that intent into ACL enforcement on the appropriate switches (for example, on gateway interfaces for east-west segmentation and on border leaf interfaces for north-south controls). The objects you use to define that policy intent must correspond to fabric connectivity constructs that Apstra understands as endpoints in the blueprint’s logical model.

Two such valid objects are Virtual Networks and Routing Zones. A virtual network represents a tenant segment (typically mapped into EVPN-VXLAN constructs such as VNI and associated IRB gateway when L3 is enabled). Policies between virtual networks are a common way to implement micro-segmentation or tier-based segmentation (web/app/db) within the same tenant boundary. A routing zone represents the L3 tenancy boundary (mapped to a VRF) and can be used to group and control connectivity at the tenant level, especially where policy needs to be expressed for aggregated tenant domains or for controls involving external connectivity.

“Domain name” and “application signature” are not endpoint objects for Apstra Security Policies in this context. They may exist in other security ecosystems, but Apstra’s security intent model for ACL generation is based on topology and blueprint objects (routing zones, virtual networks, and endpoint definitions), which can then be rendered into Junos v24.4 firewall filter–style enforcement on the fabric devices.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/policy-security.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/routing-zones.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/virtual-networks.html

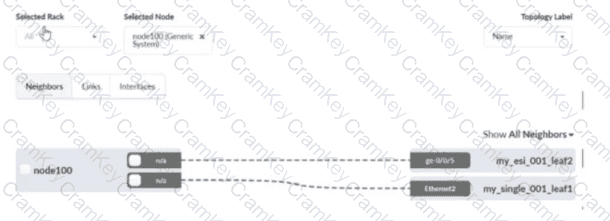

The exhibit shows node100 (Generic System) selected, with links from that generic system to two fabric leaf switches (for example, a leaf participating in an ESI pair and another leaf node). In Apstra 5.1, a Generic System represents an endpoint that is not managed as a network device by Apstra (such as a server, appliance, or host), but it is still modeled so Apstra can apply interface intent (LAG vs single link), connectivity templates, and virtual network attachments.

Because the device is shown as a generic system connected on leaf-facing ports inside the fabric topology, this aligns with an internal generic system. Internal generic systems are used for servers or endpoints that reside “inside” the rack/fabric context and consume leaf switch ports as access-facing connections. This is the common representation for endpoints in EVPN-VXLAN data center designs, where the leaf switches provide the VLAN/VNI mapping and, if required, IRB gateway services within the tenant VRF (routing zone).

An external generic system is typically used for devices outside the fabric boundary—most commonly external routers, firewalls, or upstream networks attached at border leafs—where the intent is external connectivity rather than server access. The selected node is neither a peer switch nor an access switch (those are network infrastructure roles), and the UI explicitly labels it as a Generic System, confirming the correct classification as an internal generic system.
