In modern Junos OS versions, the most efficient and standard way to isolate Out-of-Band (OOB) management traffic from transit traffic is by utilizing the management-instance . Historically, management interfaces like fxp0 (on M/MX/T series) or me0 (on EX/QFX series) shared the global routing table (inet.0), which could lead to routing conflicts if management subnets overlapped with production data.

To resolve this, Junos introduced the set system management-instance command. When this is enabled, the OS automatically creates a dedicated routing instance named mgmt_junos. The physical management interface (be it fxp0, em0, or me0) and its associated logical unit are moved into this private instance. This creates a complete separation: management protocols like SSH, SNMP, and NTP operate within mgmt_junos, while BGP, OSPF, and customer data remain in inet.0. This architecture ensures that even a massive routing loop or table exhaustion in the production plane will not prevent an administrator from accessing the device via the OOB port. Furthermore, it simplifies the configuration of default gateways for management traffic, as the mgmt_junos instance maintains its own independent routing table (mgmt_junos.inet.0), preventing management routes from ever being leaked into the provider core.

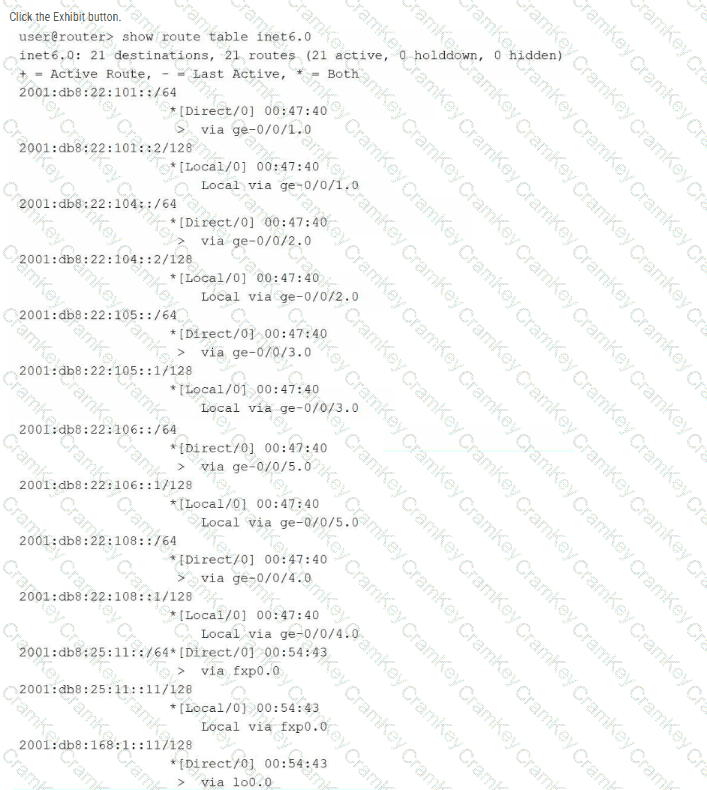

The provided exhibit displays the output of the show route table inet6.0 command, which represents the master routing table for IPv6 unicast traffic in Junos OS. Analysis of the specific route entries reveals that all listed destinations are categorized as either [Direct/0] or [Local/0] . These route types indicate that the table only contains networks physically connected to the router ' s interfaces and the specific IP addresses assigned to those interfaces.

Because there are no routes identified by dynamic protocols (such as OSPFv3, IS-IS, or BGP) or static entries, it is verified that the router is not learning IPv6 routes from any neighbors or peers. Consequently, the routing table lacks reachability information for any non-local or remote IPv6 segments. Without these routes or a configured default gateway (::/0), the router is unable to forward traffic to remote IPv6 networks. Statements C and D are factually incorrect based on the exhibit: the 2001:db8:22:108::/64 network is associated with interface ge-0/0/4.0 (not ge-0/0/5.0), and the 2001:db8:22:107::/64 network is entirely absent from the displayed routing table.

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

In the Junos OS environment, precise IP addressing and subnet calculation are foundational for interface configuration. A /29 subnet mask (255.255.255.248) provides a total of 8 IP addresses. To identify the usable host range, we must first identify the network and broadcast addresses. For the subnet 172.16.40.128/29, the network address is 172.16.40.128. The broadcast address is the last address in the block, which is 172.16.40.135.

Following standard IPv4 conventions, the first and last addresses in a block are reserved for the network identity and the directed broadcast, respectively. This leaves 6 usable host addresses: 172.16.40.129 through 172.16.40.134. Counting sequentially from the beginning of the usable range: the first usable host is .129, the second is .130, the third is .131, and the fourth usable host is 172.16.40.132. Assigning this specific address ensures that the Packet Forwarding Engine can correctly route traffic within the intended segment. As a Senior Architect, it is critical to verify these boundaries when using the set interfaces unit 0 family inet address command to prevent address overlapping or the accidental assignment of reserved network/broadcast IDs.
