Huawei Updated H12-351_V1.0 Exam Questions and Answers by alara

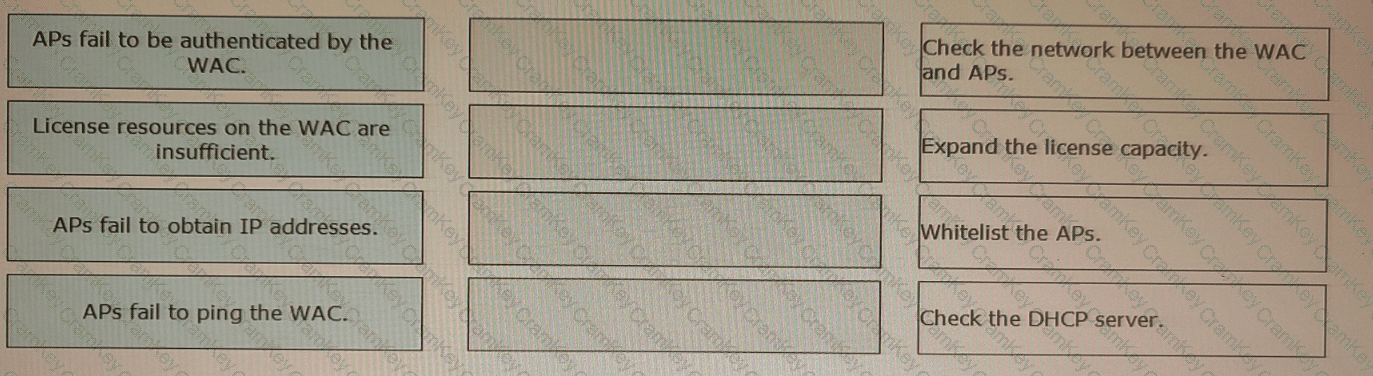

According to the Huawei documents and resources, the troubleshooting operations for the AP onboarding failures are as follows:

APS fail to be authenticated by the WAC: Whitelist the APS. The WAC can authenticate APs based on their MAC addresses or SNs. If an AP is not whitelisted on the WAC, it cannot be authenticated and onboarded.

License resources on the WAC are insufficient: Expand the license capacity. The WAC can manage a limited number of APs based on its license. If the license resources are insufficient, some APs cannot be onboarded.

APS fail to obtain IP addresses: Check the DHCP server. The APs need to obtain IP addresses from a DHCP server before they can communicate with the WAC. If the DHCP server is not configured or reachable, the APs cannot obtain IP addresses and onboard.

APS fail to ping the WAC: Check the network between the WAC and APS. The APs need to ping the WAC to discover its IP address and establish a CAPWAP tunnel. If there is a network problem between the WAC and APs, such as incorrect VLAN configuration or firewall blocking, the APs cannot ping the WAC and onboard.

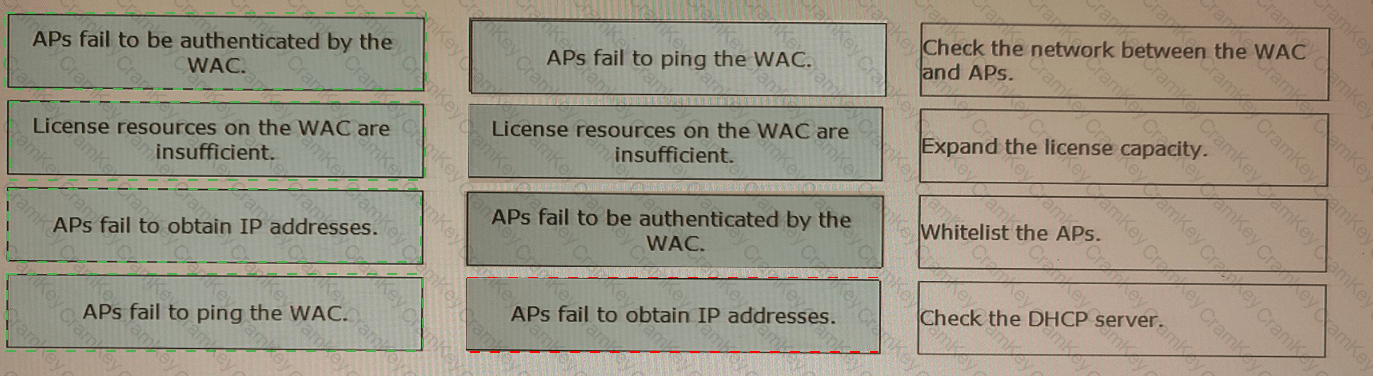

Therefore, APS fail to be authenticated by the WAC - c, License resources on the WAC are insufficient - b, APS fail to obtain IP addresses - d, APS fail to ping the WAC - a is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/ap-onboarding-failures

When a STA roams from AP1 to AP2 at Layer 2, AP2 notifies its neighbors of the MAC address learned from this STA. The MAC address is not encapsulated in a tunnel and sent to AP1 for forwarding. Instead, AP1 deletes the MAC address entry of the STA and releases the IP address lease.

A. In EAP termination mode, an access device encapsulates EAP packets sent by an 802. IX client Into RADIUS packets, without processing the data in the EAP packets.  This statement is false because in EAP termination mode, an access device extracts informat ion from EAP packets, encapsulates the information into RADIUS packets, and sends the RADIUS packets to an authentication server 2 .

D. The EAP termination mode simplifies the proce ssing on an access device and supports various authentication methods. However, this mode requires an authentication server to support EAP and have high processing capability.  Thi s statement is false because it describes the EAP relay mode, not the EAP termination mode 2 .

Therefore , A and D are the correct answers. References:  2 : https://support.huawei.com/enterprise/en/doc/EDOC1100086527
