Huawei Updated H12-841_V1.5 Exam Questions and Answers by jac

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

IPsec VPN supports a variety ofsymmetric encryption algorithmsto protect data confidentiality during transmission. Commonly supported algorithms includeDES,3DES, andAES, all of which are used to encrypt the payload of IP packets in ESP.

AESis the most widely recommended algorithm due to its strong security and high performance.3DESandDESare legacy algorithms that are still supported for compatibility reasons, although they are considered less secure and are gradually being phased out in modern deployments.

DSA (Digital Signature Algorithm), however, isnot an encryption algorithm. It is an asymmetric algorithm used fordigital signatures and authentication, not for encrypting data. IPsec uses DSA only indirectly in certificate-based authentication scenarios, but it is never used as a data encryption algorithm in IPsec VPNs.

According to HCIP Datacom Campus Network documentation, IPsec VPN encryption relies exclusively on symmetric encryption algorithms such as DES, 3DES, and AES. Therefore,DSA is not supported as an IPsec encryption algorithm, makingoption Athe correct answer.

Comprehensive and Detailed Explanation (200–250 words):

In an iMaster NCE-Campus policy control matrix, rows representsource security groupsand columns representdestination security groups. A green check mark indicates that communication is allowed, while a red cross indicates that communication is denied. This matrix enables fine-grained user access control in VXLAN-based virtualized campus networks.

From the figure, communication betweenGuest_Group and Research_Groupis explicitly denied in both directions, as indicated by red crosses. Therefore, statementsAandDare both correct. The matrix also shows a green check mark forSales_Group communicating with itself, meaning intra-group communication is permitted, makingstatement B correct.

Theunknowngroup represents users that are not classified into Guest_Group, Research_Group, or Sales_Group. In the matrix, the unknown group is not completely blocked from all resources by default; access behavior depends on explicit policy configuration. Since the figure does not indicate a universal deny policy for unknown users toward all destinations,statement C is incorrect.

According to HCIP Datacom Campus Network policy control design, security group–based access control allows administrators to precisely define which user groups can communicate, improving security and service isolation. Hence, the correct answers areA, B, and D.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In a CloudCampus VXLAN fabric, theglobal resource poolcentrally manages identifiers such as VLANs, VNIs, and bridge domains to ensure consistent allocation across the fabric.

StatementAis correct because abridge domain (BD)is the VXLAN equivalent of a VLAN and represents a Layer 2 broadcast domain used for packet forwarding within a VXLAN network.

StatementCis also correct. AVXLAN Network Identifier (VNI)uniquely identifies a VXLAN segment and is a core VXLAN forwarding identifier.

StatementDis correct because theservice VLAN poolis used to allocate VLANs for multiple purposes, including external gateway interconnections, network service resource interconnections, policy association management, and VN access VLANs.

StatementBis false. VLANs used forunderlay device interconnectionsarenot allocated from the VLAN resource poolmanaged by the VXLAN fabric. Underlay VLANs belong to the traditional IP underlay network and are typically planned and configured independently. The VLAN resource pool is intended for overlay-related services and fabric-managed VLAN usage only.

Therefore, the incorrect statement isB.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

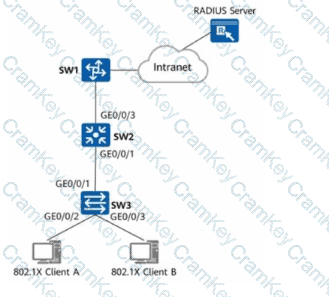

To deploy802.1X authenticationon Huawei campus switches and use aRADIUS serverfor user authentication and authorization, several core configuration components are mandatory. All four options listed are required for a complete and functional deployment.

Anauthentication domainis mandatory because it defines where user authentication requests are processed and which AAA schemes are used. Without a domain, the switch cannot determine how to handle authentication requests, makingoption A mandatory.

Anauthentication profileis also required. This profile binds authentication methods (such as 802.1X), authentication domains, and access policies together. Interfaces reference the authentication profile to determine how users are authenticated, sooption B is mandatory.

An802.1X access profiledefines detailed 802.1X parameters, such as authentication mode, reauthentication behavior, and client handling. This profile is bound to interfaces to enable 802.1X authentication on specific ports, makingoption C mandatory.

Finally, anAAA schemeis essential because it defines the authentication, authorization, and accounting methods used by the device, including RADIUS server configuration. Without an AAA scheme, the device cannot communicate with the RADIUS server or obtain user authorization information. Therefore,option D is mandatory.

According to HCIP Datacom Campus Network documentation, all four configuration steps are required to successfully enable 802.1X authentication with RADIUS-based access control.
