HP Updated HPE7-A02 Exam Questions and Answers by maxim

Centralized Role Configuration on CPPM:

CPPM can assign roles to clients dynamically during authentication.

However, the actual ACL policies (e.g., firewall policies) must already exist and be referenced locally on the switch.

CPPM cannot directly configure ACL details on AOS-CX switches.

Option Analysis:

Option A: Correct. The role is defined on CPPM, but it references a policy pre-configured on the switch.

Option B: Incorrect. This does not align with Aruba's centralized role-based access control design.

Option C: Incorrect. CPPM cannot configure the ACL policies and classes directly; they must exist locally.

Option D: Incorrect. Policies can be referenced centrally but not fully configured on CPPM.

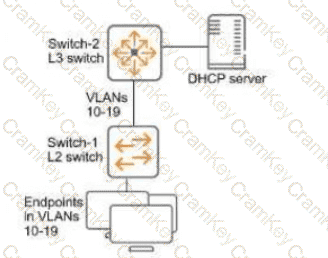

Dynamic ARP Inspection (DAI):

ARP inspection verifies ARP packets against a trusted IP-to-MAC binding table to prevent ARP spoofing attacks.

DHCP snooping is required to construct the IP-to-MAC binding table dynamically.

To avoid traffic disruption, uplink ports that connect to trusted switches, DHCP servers, or routers must be explicitly configured as trusted ports for ARP inspection.

Steps to Prevent Traffic Disruption:

Trust the Uplinks: ARP inspection must treat uplink ports as trusted to allow ARP traffic from legitimate DHCP servers and upstream switches.

Enable DHCP Snooping: DHCP snooping must be enabled on Switch-2 to ensure consistent IP-to-MAC bindings upstream.

Why the Answer is Correct:

Option A: Incorrect. ARP inspection on Switch-2 is important but not required first to prevent disruption on Switch-1.

Option B: Incorrect. DHCP snooping must be enabled upstream eventually, but this alone will not stop immediate traffic disruption on Switch-1.

Option C: Correct. Switch-1 uplinks must be trusted ARP inspection ports first to allow legitimate upstream traffic and prevent ARP disruption.

Option D: Incorrect. Static bindings are not required if DHCP snooping is enabled, and they are manual, limiting scalability.

Conclusion:

To avoid traffic disruption, configure Switch-1 uplinks as trusted ARP inspection ports to ensure valid ARP traffic can pass upstream and downstream.

User-Based Tunneling (UBT) with VRRP:

UBT allows traffic from authenticated users to be tunneled to an HPE Aruba Networking gateway.

In the case of VRRP, where two gateways are configured for redundancy, the AOS-CX switch will always send the traffic to the primary gateway defined in the UBT zone configuration.

The VRRP state (master/backup) does not impact the UBT decision; the UBT primary configuration takes precedence.

Option Analysis:

Option A: Incorrect. UBT does not strictly follow the VRRP master; it adheres to the UBT primary gateway configuration.

Option B: Correct. The switch tunnels all traffic to the primary gateway configured in the UBT zone.

Option C: Incorrect. UBT does not load-share traffic between gateways.

Option D: Incorrect. UBT uses the primary gateway configured in the UBT zone, not dynamically determined active devices.

Integrating HPE Aruba Networking ClearPass Policy Manager (CPPM) and HPE Aruba Networking ClearPass Device Insight (CPDI) can help a company implement Zero Trust Security by allowing CPDI to use tags to inform CPPM that clients are using prohibited applications. CPPM can then take action, such as telling the network infrastructure to quarantine those clients, ensuring that only compliant and trusted devices have network access.

1.Device Insight Tags: CPDI can monitor client behavior and tag devices that are using prohibited applications.

2.Policy Enforcement: CPPM can use these tags to apply specific enforcement actions, such as quarantining non-compliant devices.

3.Zero Trust Implementation: This integration supports Zero Trust Security by ensuring that all devices are continuously monitored and controlled based on their behavior and compliance with security policies.
