Fortinet Updated NSE7_FSN_AR-7.6 Exam Questions and Answers by thiago

Intermittent behavior (working sometimes, failing others) points to resource or connectivity fluctuations rather than static misconfigurations.

B. Check that FortiGate is not entering conserve mode:

Reason: When FortiGate enters Conserve Mode (due to high memory usage), it changes its inspection behavior to save resources. Depending on the av-failopen setting, it may either bypass inspection (allowing blocked sites) or drop traffic (blocking valid sites) temporarily until memory recovers. This flapping between states causes intermittent filtering issues.

D. Check that the communication between FortiGate and FortiGuard is stable:

Reason: The Web Filter engine relies on real-time queries to the FortiGuard Distribution Network (FDN) to categorize URLs that are not in the local cache. If the internet connection or the specific path to FortiGuard is unstable (packet loss, latency), queries will time out. This results in " Rating Errors, " which can block or allow traffic unpredictably based on the " Allow websites when a rating error occurs " setting.

Why other options are incorrect:

A: A mismatch in inspection mode (e.g., Profile set to Proxy, Policy set to Flow) is a static configuration error. It would typically result in the profile not being selectable or consistently failing/not applying, rather than working intermittently.

C: If the wrong port is mapped (e.g., HTTP on 8080 is not mapped), the inspection engine will consistently ignore traffic on that port. It would not be intermittent.

The SD-WAN 7.6 Enterprise Administrator Study Guide identifies the recommended BGP-on-loopback IPsec settings. For branches, it specifies:

“Static tunnel type (remote end IP address is known).”

“net-device enable.”

Enabling net-device on the spoke creates a kernel interface for the tunnel. This assists with tunnel monitoring and management and is required to support ADVPN shortcut tunnels. Dynamic BGP establishes on-demand BGP peerings between spokes after an ADVPN shortcut is created; therefore, the spoke must support those dynamic shortcut interfaces. This makes option C correct.

The spoke should also configure localid. The FortiOS 7.6 Administrator Study Guide explains: “Local ID: if the peer accepts a specific peer ID, type that same peer ID in this field.” The local ID supplies the spoke’s IKE identity to the dial-up hub, allowing the hub to identify and authenticate the connecting spoke correctly. Therefore, option D is correct.

Option A reverses the recommended roles. The hub must use a dynamic tunnel type because it operates as the dial-up server and does not require every spoke’s changing public gateway address in advance.

Option B is also incorrect. The guide states: “There is no need to configure any tunnel IP address, so the IKE Mode Config is not used.” BGP on loopback uses the loopback address and exchange-interface-ip instead of IKE mode configuration.

The correct answer is B .

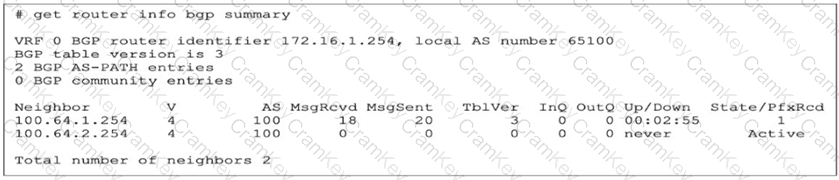

In the exhibit:

Neighbor 100.64.1.254 shows State/PfxRcd = 1 , which means the session is established and the local FortiGate has received 1 prefix

Neighbor 100.64.2.254 shows State/PfxRcd = Active

The study guide explains the BGP states exactly:

Connect : Waiting for a successful three-way TCP connection

Active : Unable to establish the TCP session

OpenSent : Waiting for an OPEN message from the peer

OpenConfirm : Waiting for the keepalive message from the peer

Established : Peers have successfully exchanged OPEN and keepalive messages

It also explains how to read the State/PfxRcd column:

“If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor.”

Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established .

Why the other options are wrong:

A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another

C is wrong because BGP adjacency is not established based on neighbor “priority”; the output shows adjacency is established because the session completed and prefixes were exchanged

D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation

So the verified answer is: B .
