Fortinet Updated NSE6_SDW_AD-7.6 Exam Questions and Answers by shay

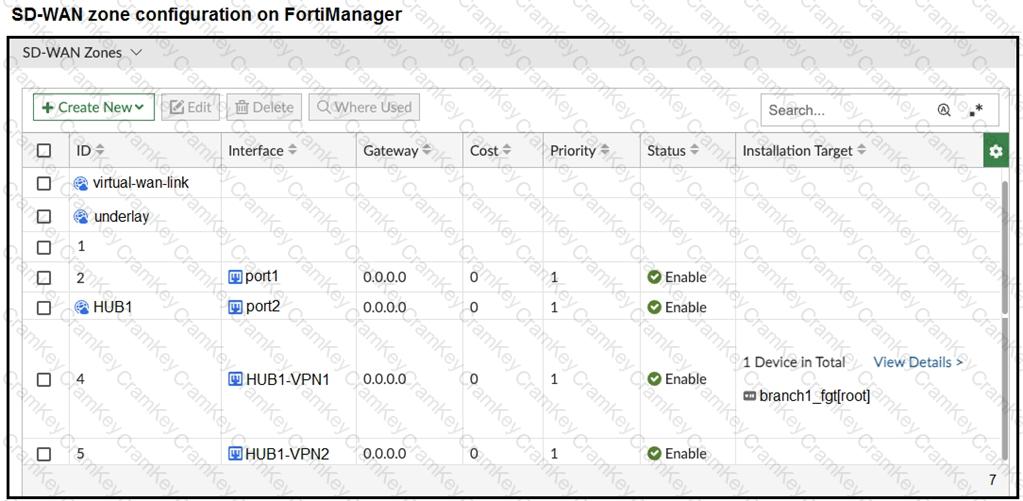

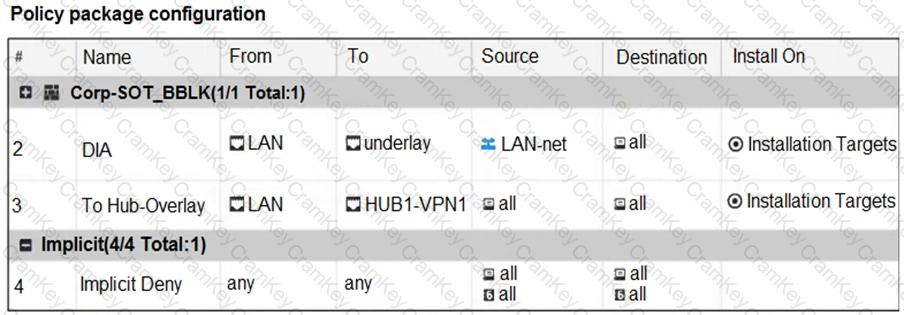

Policy 3 points traffic To = HUB1-VPN1, which is an SD-WAN member interface. In SD-WAN you must reference the SD-WAN zone (the logical interface) in policies, not its member tunnels. Change the policy’s To interface to the zone HUB1, and the install will succeed.

In FortiOS 7.6, local-out traffic is traffic generated by the FortiGate itself, such as ping, traceroute, FortiGuard updates, DNS, NTP, and SNMP. Local-out traffic does not traverse the firewall policy engine and therefore behaves differently from forwarded traffic in SD-WAN.

According to the FCSS SD-WAN 7.6 curriculum and Fortinet SD-WAN architecture documentation, local-out traffic does not use SD-WAN by default. Instead, it follows the routing table (static and dynamic routes). To allow local-out traffic to be evaluated by SD-WAN rules, the administrator must explicitly enable local-out SD-WAN processing.

The curriculum also states that only SD-WAN rules using the manual strategy are supported for local-out traffic. SLA-based, application-based, and dynamic strategies are not evaluated for traffic generated by the FortiGate itself. This is a fundamental architectural limitation of SD-WAN in FortiOS 7.6.

Option B is incorrect because FortiGate does not automatically apply SD-WAN rules to ping or traceroute traffic by default. Even these tools follow the routing table unless local-out SD-WAN is enabled.

Option D is incorrect because local-out SD-WAN configuration is global. Individual local-out features do not require separate SD-WAN enablement.

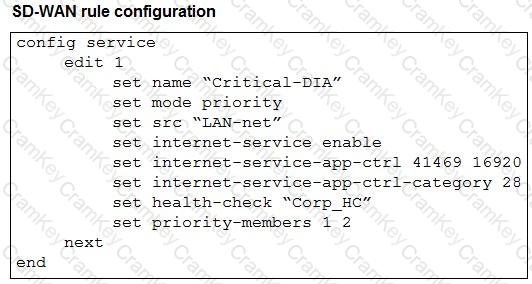

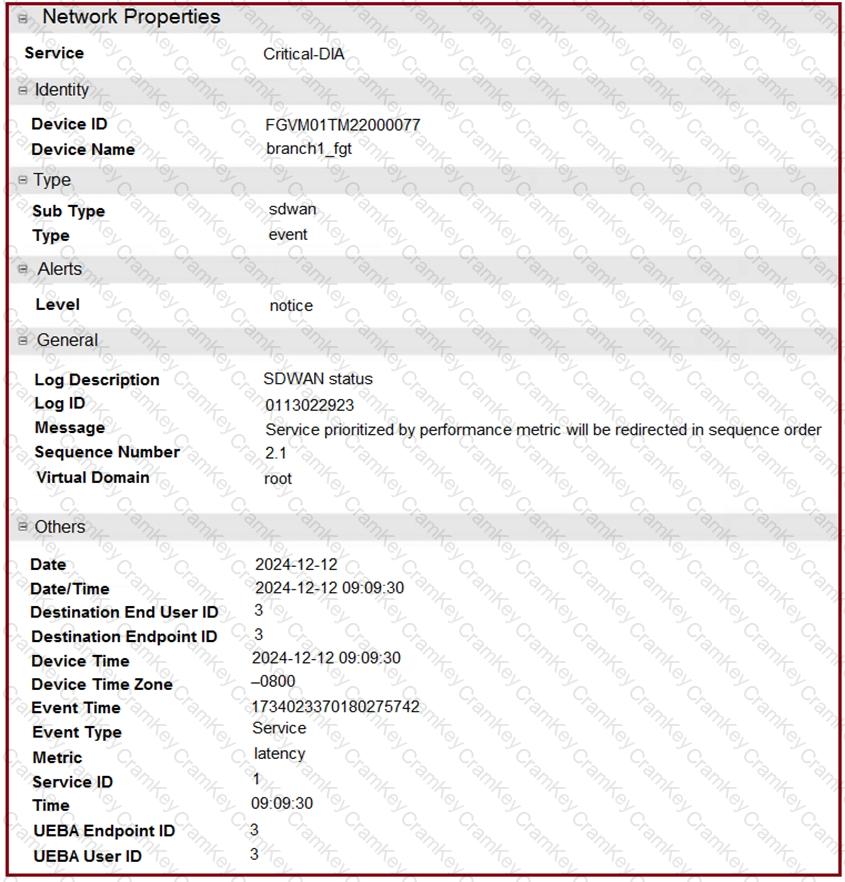

The SD-WAN rule (config service edit 1) is configured with set mode priority. This means the rule selects the best interface based on a defined performance metric, as opposed to a simple static priority or SLA. The event log (image_41cfb5.png) shows Metric latency and Message Service prioritized by performance metric will be redirected in sequence order. This indicates that the rule is using latency to determine the preferred member. Given that the log message is about a change, and the most logical reason for a change in a priority mode is that a different member is now the best performer, it implies that the latency on port2 has become lower than that on port1.

The log message Service prioritized by performance metric will be redirected in sequence order confirms that FortiGate is changing the member being used for this service. Because the mode is priority, FortiGate dynamically selects the member that currently meets the best performance criteria, which in this case is latency. The log implies a new member has been selected as the most optimal, and with the default configuration, the members are sorted based on their performance, so the outgoing interface list is effectively updated to prefer the new best-performing member (port2).
