Fortinet Updated FCP_FMG_AD-7.6 Exam Questions and Answers by erika

The FortiManager 7.6 Administrator Study Guide is explicit for the scenario where both FortiManager and FortiGate are behind NAT . It states that FortiManager can discover FortiGate through the FortiGate NATed IP address , which makes A correct. It also explains that in this scenario, the FortiManager NATed IP address is not configured on FortiGate by default under central management , which makes B correct.

C is incorrect because FortiGate must use the FortiManager NATed IP address , not the non-NATed IP, if it needs to announce itself or reestablish the FGFM tunnel. D is also incorrect because in this NAT scenario, if the tunnel is torn down, only FortiGate attempts to reestablish the connection ; FortiManager does not automatically do so.

=========

The import process shows that FortiManager will create normalized interfaces named LAN, port4, and port6 at the ADOM layer, mapping them to the corresponding device interfaces based on the import settings.

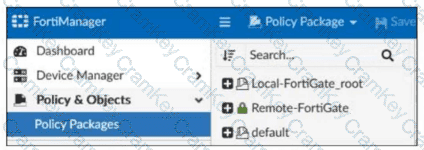

The exhibit shows Remote-FortiGate with a green closed lock icon , which indicates a locked policy package . The FortiManager 7.6 Administrator Study Guide states: “Policy locking is available in workspace normal and per-ADOM modes” and “Policy locking allows administrators to work on and lock a single policy package instead of locking the whole ADOM.” This confirms that a package such as Local-FortiGate_root can also be locked, so A is correct.

B is incorrect because the study guide and lab guide describe snapshots as ADOM revisions , not policy package snapshots: “An ADOM revision creates a snapshot of the policy and object configuration for the ADOM.”

D is incorrect because in workflow mode, sessions and approval are required before installation. The exhibit shows a normal save/lock state, not a workflow session state.

=========

The command set workspace-mode normal enables Workspace (ALL ADOMs) . In this mode, FortiManager uses ADOM locking to prevent configuration conflicts. The study guide explains that workspace mode is used to prevent concurrent ADOM access , and once an ADOM is locked, only the administrator who locked it has read-write access while all others have read-only access. That makes D correct.

B is also correct because locking is applied per ADOM, so different administrators can work at the same time on different ADOMs without conflicting with each other. This is consistent with the design goal of workspace mode and ADOM locking.

C describes workflow mode , not workspace normal. Approval before installation is required only with set workspace-mode workflow.

=========
