Fortinet Updated NSEI_OTS_AR-7.6 Exam Questions and Answers by forrest

Comprehensive and Detailed Explanation From Exact Extract of OT Security 7.6 Study guides:

The correct answers are A and C .

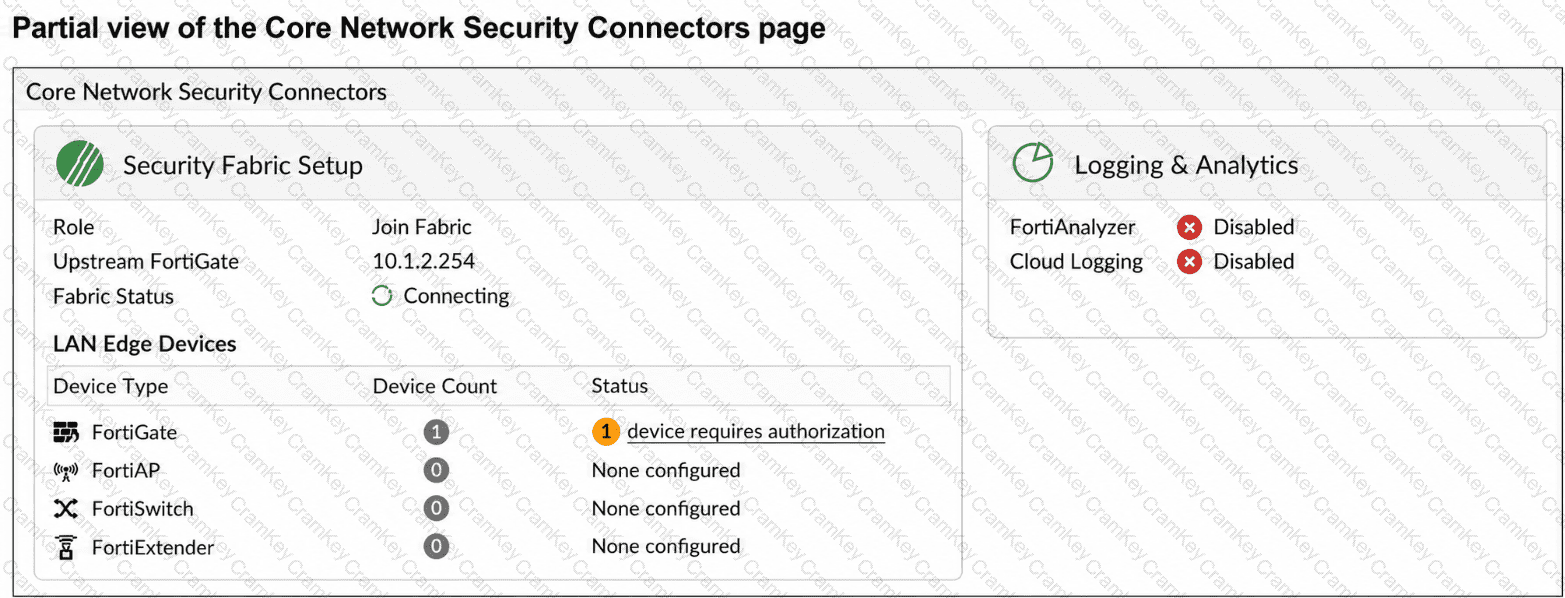

A is correct because the exhibit explicitly shows Logging & Analytics → FortiAnalyzer: Disabled on this FortiGate. The FortiGate must therefore have its FortiAnalyzer logging destination enabled and configured. The study guide explains that the FortiAnalyzer Fabric connector consolidates traffic logs and, importantly, that “each FortiGate in the Security Fabric logs traffic to FortiAnalyzer independent of the root or other leaf devices.” This means each FortiGate requires its own functioning logging connection to FortiAnalyzer; being a Security Fabric member alone does not cause its logs to pass through the root FortiGate.

C is correct because FortiAnalyzer must accept and authorize the FortiGate as a managed/logging device before the FortiGate can establish the normal logging relationship. This complements the FortiGate-side Logging & Analytics configuration. The study guide ' s Security Fabric logging architecture shows individual FortiGate devices maintaining FortiAnalyzer log connections , with FortiAnalyzer receiving and correlating their traffic and UTM logs. It specifically states that if the root FortiGate is unavailable, logging from leaf FortiGate devices to FortiAnalyzer continues to function , confirming that the FortiGate-to-FortiAnalyzer logging relationship is direct.

B is incorrect because configuring Fabric settings on FortiAnalyzer is not the missing step indicated by the exhibit. The problem shown is that FortiAnalyzer logging is Disabled on the FortiGate .

D is incorrect because authorization on the root FortiGate concerns joining and trusting a FortiGate as a Security Fabric member. It does not authorize that FortiGate as a logging device on FortiAnalyzer. The study guide explicitly distinguishes the architecture by stating that every FortiGate logs to FortiAnalyzer independently of the root .

The correct answer is A. Fortinet Single-Sign On (FSSO) . The study guide states under Active and Passive Authentication that for passive authentication, “User does not receive a login prompt from FortiGate” , “Credentials are determined automatically” , and specifically “FSSO, RSSO, and NTLM can be used.” It then explains that passive authentication occurs with the single sign-on method and explicitly identifies Fortinet SSO (FSSO) as one of those methods.

The guide also says: “For passive authentication, you can implement FSSO. FSSO allows users who have already authenticated on the network through another system to be transparently identified. After initial login to any system on the network, users can access allowed resources without being prompted for credentials.” That is exactly what the question asks for: improving access control in a large OT network using passive authentication .

The other options do not match passive authentication. Local users are part of local authentication, two-factor authentication adds an extra security factor but still uses active authentication, and FortiAuthenticator as a remote server supports centralized authentication for mid-to-large networks, but by itself it is not the specific passive-authentication method being asked here. The study guide is explicit that the FortiGate configuration for passive authentication is FSSO .

Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

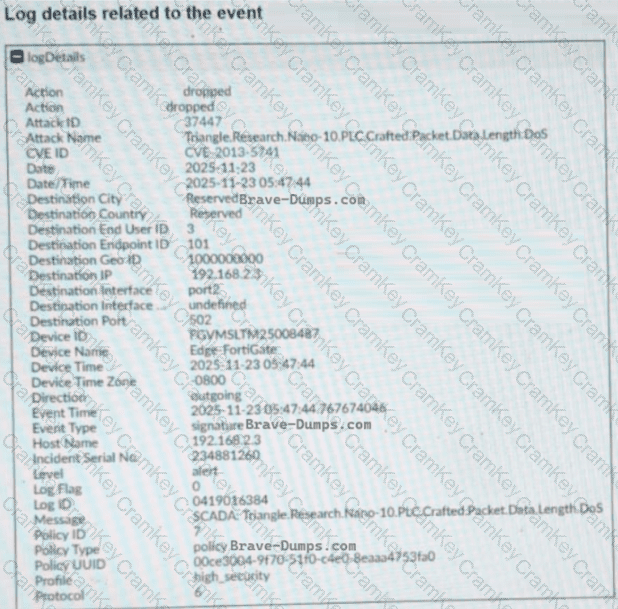

Industrial Protocol Identification (Statement A) : The log details exhibit clearly shows that the Destination Port used in the attack is 502 . According to the study guide ' s section on Industrial Protocol Protection , the standard port used by the Modbus TCP protocol is 502 . Furthermore, the attack name identifies a " Triangle.Research.Nano-10.PLC, " which are industrial controllers commonly utilizing Modbus for communications.

Attack Mitigation (Statement B) : The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped . In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

Target IP Address (Statement E) : The log detail explicitly lists the Destination IP as 192.168.2.3 . The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the " Affected Endpoint " is shown as 10.1.5.20 , in an " outgoing " attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.

Protocol Conflict (Statement C) : The IEC 104 protocol typically utilizes port 2404 . Since the log specifies port 502, Statement C is incorrect.

Severity Distinction (Statement D) : While the Incident severity is marked as High , the question specifically asks about event severity. The " Events " table at the bottom of the Incident Analysis page shows a " User login/logout failed " event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

The correct answer is A. Device Detection is enabled on the other identified device .

The study guide explains that device identification is a “useful feature for the Security Fabric topology view” and that “FortiGate detects most third-party devices in your network and adds them to the topology view of the Security Fabric.” It also states that in the interfaces section, you can enable device detection , and this detection is what allows FortiGate to identify devices based on observed traffic.

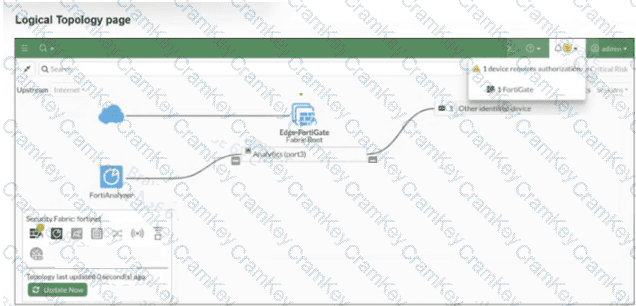

In the exhibit, the tooltip distinguishes between “1 device requires authorization” and “1 other identified device.” That means the unauthorized device is a separate FortiGate/Fabric member issue, while the other identified device is simply a detected third-party device shown in the topology because device detection is working. Therefore, the correct interpretation is that device detection is enabled for that identified device. Option B is incorrect because the exhibit does not say the other identified device requires authorization. Option C is not supported by the study guide, and option D is too specific because no evidence in the exhibit confirms that the detection was enabled specifically on port3 .
