Fortinet Updated NSE7_SOC_AR-7.6 Exam Questions and Answers by kinza

Exact Extract: “This playbook also expects input from the user, specifically an IP address… you can manually type in an IP address. The trigger input is saved as ipAddress, which you can refer to later as a dynamic value.”

Exact Extract: “The connector must first be configured… The selected action is Get IP Reputation… The Get IP Reputation action requires input. In the trigger step, you defined the ipAddress parameter from the trigger input, which you can dynamically map to this step.”

Exact Extract: “After the Connector step is the Approval step. You can manually add a description, or you can use the Dynamic Values window to populate fields such as the Description field.”

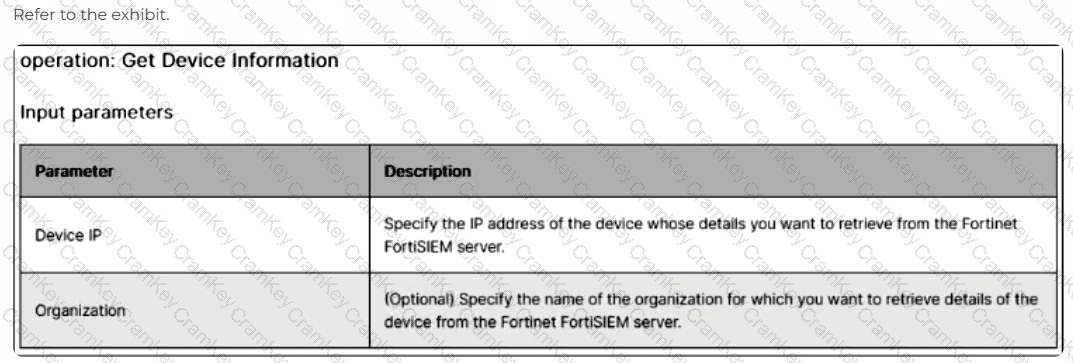

The correct answer is A . The workflow requires analyst-supplied input, so it must begin with a Manual trigger where the IP address is entered. That IP address is passed directly into the FortiSIEM Get Device Information connector action. The output from that connector action is then shown to the SOC manager through an Approval step. If approved, the playbook proceeds to Create Record , creating the asset record from the FortiSIEM CMDB result.

Option B is bloated. Set Variable steps are not required because the manual trigger value and connector output can be referenced directly through Dynamic Values/Jinja. Option C is wrong because On Create is event-driven, not manual input, and Manual Task does not provide the same approve/reject workflow as an Approval step. Option D is wrong because it lacks the manual trigger and adds an unnecessary Update Record step.

Technical Deep Dive: The clean FortiSOAR pattern is Manual Input → External Lookup → Human Approval → Record Creation. In implementation, the manual trigger captures device_ip, the FortiSIEM connector action maps that value to Device IP, the Approval step displays key returned fields such as hostname, IP, organization, device type, and CMDB attributes, and the Create Record step maps the approved output into the Assets module. This is SOAR workflow orchestration; FortiGate NP/CP hardware offload is irrelevant because no traffic forwarding or ASIC inspection path is involved.

Exact Extract: “The first step in creating a queue occurs on the Queue Definition page, where you define a name and description, and specify the modules that you want to associate with the queue… Note that for the module to be selectable under Module Types, you must enable the Queueable setting under Application Editor > Modules.”

The correct answer is A because FortiSOAR only allows a module to appear in the queue Module Types list when that module has the Queueable setting enabled under Application Editor > Modules . The issue is not the task priority or queue priority. A higher priority queue only affects tie-breaking when multiple queues match the same record criteria; it does not prevent a module from being selected. The Tasks module can be used as a FortiSOAR record module, so C is not the best answer. Shift-based assignment is also separate: it controls whether assignment follows shift availability after the queue exists, but it does not control whether the module appears in the Module Types list.

Technical Deep Dive: Queue and shift management is metadata-driven. First, the module must be queue-enabled. Then queue rules can match records, such as newly created low- priority tasks. After that, user assignment logic can assign records to the queue lead, leave them unassigned, or distribute them by round robin, optionally using shift-based availability. So the first fix is: Application Editor > Modules > Tasks > enable Queueable.

Exact Extract: “Segment the network. Macrosegmentation: Isolate different networks and VLANs from one another. Microsegmentation: Isolate the workloads of individual applications.” The guide further explains: “With macrosegmentation, you can isolate broadcast domains and implement different levels of security based on the network and VLANs a device belongs to. For example, you can have a ‘Guest’ network with limited access, whereas the ‘IT’ network can access critical devices such as the ‘Server’ network.”

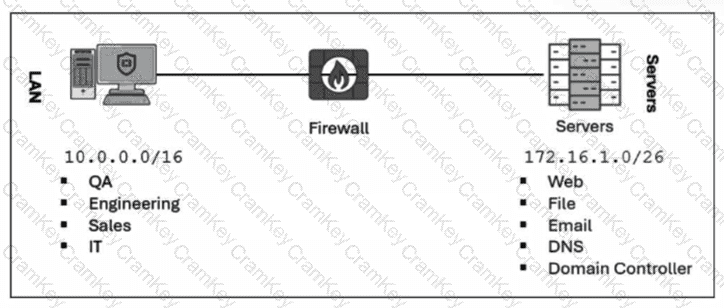

The correct answer is C because the exhibit shows a flat or broadly connected environment where multiple LAN departments—QA, Engineering, Sales, and IT—can reach a server network containing sensitive services such as web, file, email, DNS, and a domain controller. The most effective way to reduce the attack surface is macrosegmentation , meaning separation of major network zones or VLANs and enforcement of access policy between them. That limits unnecessary lateral movement and restricts which departments can access critical servers.

Option A improves visibility but does not reduce exposure by itself. Option B improves inspection depth but does not reduce which systems can communicate. Option D is a valid general hardening practice, but the exhibit does not show unused devices; it shows multiple business networks and server services requiring segmentation.

Technical Deep Dive: On FortiGate, macrosegmentation is normally implemented with VLANs, zones, firewall policies, and least-privilege rules between departments and server subnets. Example design: separate QA, Engineering, Sales, IT, and Server VLANs; then allow only required traffic such as Sales to web services, IT to domain controllers, and DNS from approved clients. NP/CP offloading can still accelerate eligible firewall sessions, but once UTM/deep inspection is enabled, some traffic may be handled by CPU or CP depending on the model and inspection profile.

Exact Extract: “Click a playbook step to display the input, output, and configuration for that step. You can click ENV to toggle between the environment in which the playbook was executed and the steps of the playbook.” The guide also states that the ENV view contains “the complete environmental context, including input, output, and variables across all steps.”

Exact Extract: “Click Error Details to view the reason for a playbook failure. This helps you identify the root cause of the error and troubleshoot.”

The correct answer is C . The goal is to continue execution from the failed point while preserving the already-built runtime context from steps 1 through 29. Rerun From Last Failed Step is specifically designed for this situation. It avoids repeating prior successful steps and continues with the original environment, variables, inputs, and outputs already generated before the failure.

Option A is wrong because mock input is for testing or debugging and can override real step output. Option B is only useful for testing Jinja expressions against an environment JSON; it does not continue playbook execution. Option D is a bad design change: manually rewiring the playbook bypasses intended workflow logic and does not reliably preserve prior execution context.

Technical Deep Dive: In FortiSOAR, long playbooks often build dependency chains where later connector actions rely on earlier outputs, variables, decisions, record IDs, and enrichment data. Starting over can duplicate records, re-run remediation, or overwrite evidence. The correct operational recovery is to use the executed playbook log and resume from the failed step after fixing the transient condition. FortiGate NP/CP offloading is irrelevant because this is SOAR workflow execution state, not firewall packet processing.
