A Self IP is an IP address on the BIG-IP system that you associate with a specific VLAN .

VLAN Association: A Self IP cannot exist independently; it must be bound to a VLAN to define which network segment the BIG-IP can communicate with.

Layer 2 to Layer 3 Mapping: While a VLAN is associated with physical interfaces or trunks (Layer 2), the Self IP provides the Layer 3 identity for the BIG-IP on that VLAN.

Traffic Processing: Self IPs are used by the BIG-IP for health checking backend servers, acting as a default gateway for servers, and for HA heartbeat communication.

For BIG-IP to send or receive traffic on a VLAN, that VLAN must be bound to a physical interface or a trunk . Creating a VLAN object and a Self IP alone is not sufficient to establish data-plane connectivity.

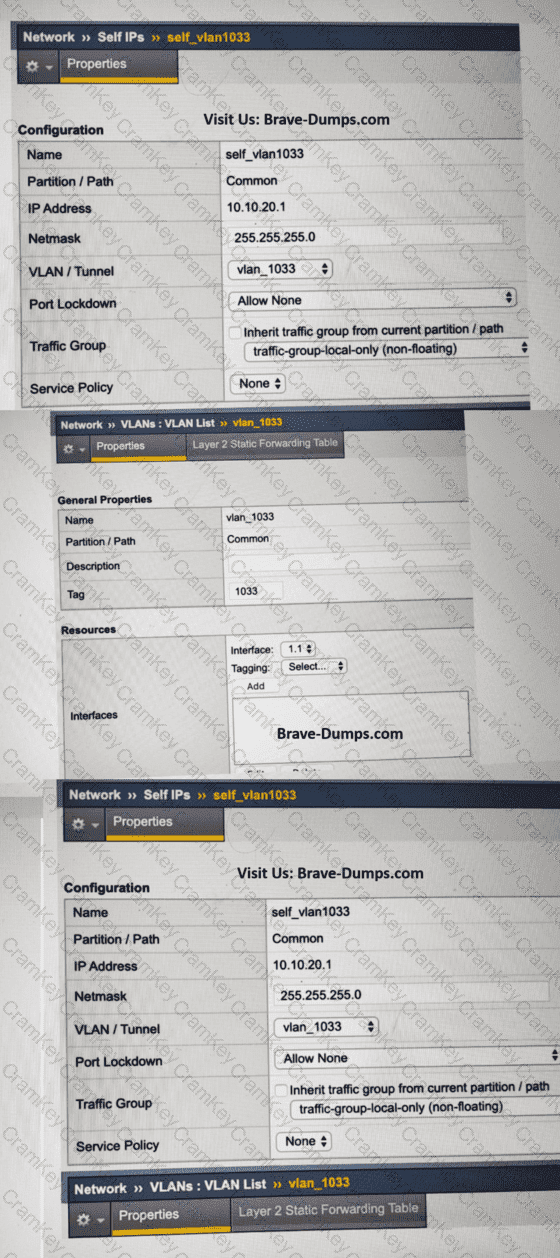

From the exhibit:

The VLAN ( vlan_1033 ) exists and has a tag defined.

A Self IP is configured and associated with the VLAN.

However, traffic cannot reach servers on that VLAN.

This indicates a Layer 2 connectivity issue , not a Layer 3 or HA issue.

Why assigning a physical interface fixes the problem:

BIG-IP VLANs do not carry traffic unless they are explicitly attached to:

A physical interface (e.g., 1.1), or

A trunk

Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.

Why the other options are incorrect:

A. Set Port Lockdown to Allow All Port Lockdown controls which services can be accessed on the Self IP (management-plane access), not whether BIG-IP can reach servers on that VLAN.

B. Change Auto Last Hop to enabled Auto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.

D. Create a Floating Self IP address Floating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.

Conclusion:

The servers are unreachable because the VLAN has no physical interface assigned . To restore connectivity, the BIG-IP Administrator must assign a physical interface (or trunk) to the VLAN , enabling Layer 2 traffic flow.

The appropriate configuration for emulating conventional stateless IP routing is a Forwarding (IP) virtual server using a FastL4 profile .

A Forwarding (IP) virtual server does not select an application-server pool in the normal load-balancing sense. Instead, BIG-IP forwards the packet toward the destination address originally specified by the client and uses the system ' s routing table to determine the serverside path. This makes the Forwarding (IP) virtual server the BIG-IP virtual-server type designed to provide router-like Layer 3 forwarding behavior.

BIG-IP processing is inherently stateful, so to approximate stateless router behavior, F5 uses specific FastL4 profile settings with the IP forwarding virtual server. FastL4 is supported with Forwarding (IP) virtual servers and provides efficient Layer 4 packet processing.

Option C is deceptive. BIG-IP does have a virtual server type called Stateless , but F5 documents that this type applies specifically to UDP traffic , requires a default pool, and has significant configuration restrictions. It is therefore not the general mechanism used to emulate stateless IP routing.

A Standard virtual server performs full-proxy processing, while Performance (Layer 4) is primarily used for high-performance Layer 4 application delivery and can use pools. Neither is the intended router-emulation configuration.

Study Guide References/Topics: Forwarding (IP) Virtual Servers; FastL4 Profile; Routing Table Processing; Stateful versus Stateless Forwarding; Virtual Server Types.

In BIG-IP LTM, a Wildcard virtual server is defined by using a destination IP address of 0.0.0.0. These virtual servers are designed to handle traffic that does not match any more specific Virtual Server destination address.

0.0.0.0 Destination: This address acts as a " catch-all " for IP traffic.

VLAN Specificity: While the destination address is generic, a Wildcard virtual server is typically restricted to a specific VLAN (such as the Internal VLAN) to process outbound traffic from backend servers.

Service Ports: A wildcard virtual server can be configured for a specific port (e.g., 0.0.0.0:80) or for all ports (0.0.0.0:0).

Data Plane Usage: It is commonly used for transparently intercepting outbound traffic for the purpose of Source NAT (SNAT), bandwidth shaping, or directing traffic to a gateway pool.
