Ethernet Network Control Policy

Ethernet Network Group Policy

Ethernet QoS Policy

Ethernet Adapter Policy

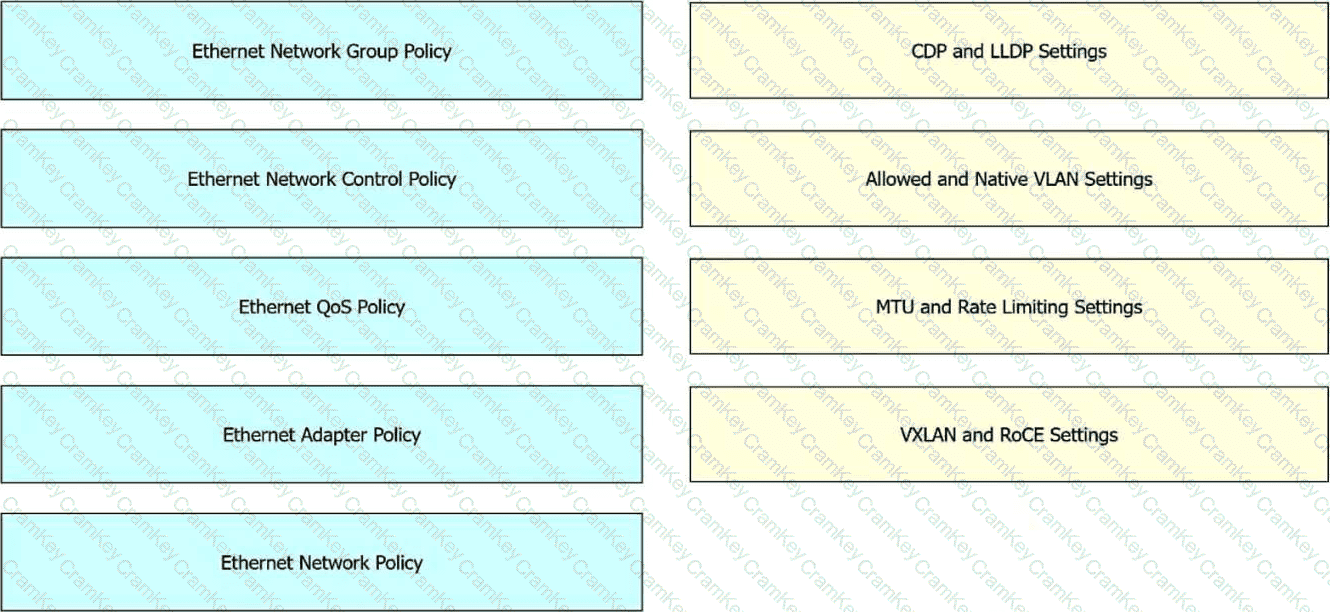

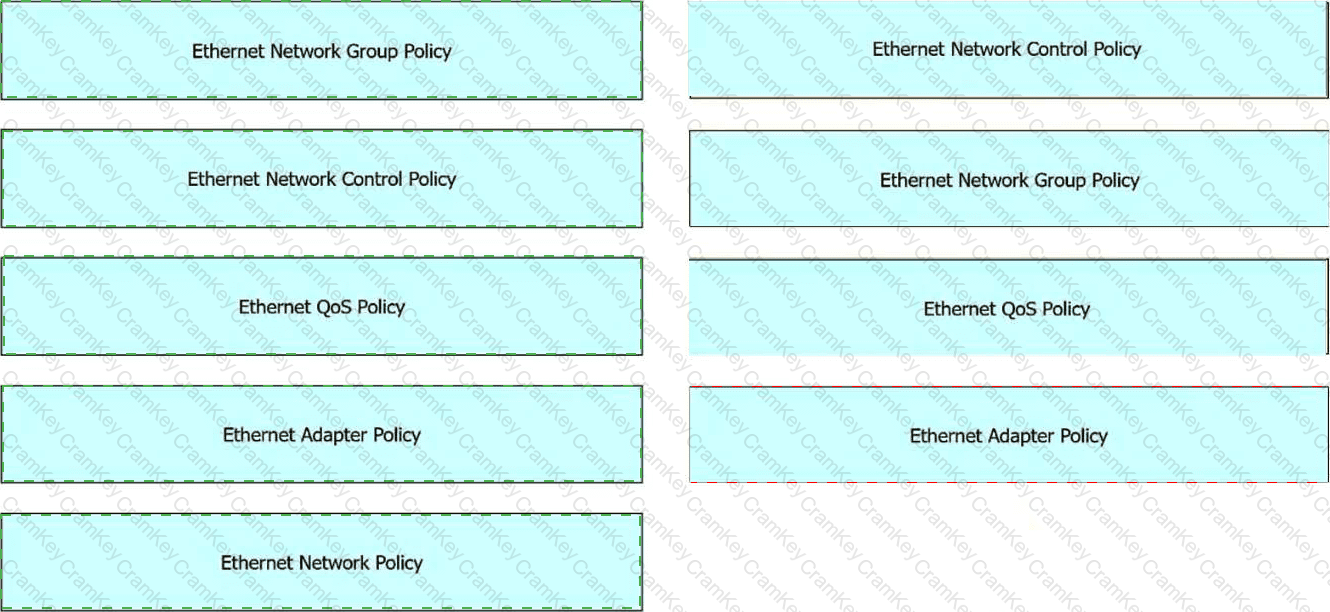

The mappings correspond to the functional boundaries of Cisco Intersight vNIC policies. Ethernet Network Control Policy manages link-layer behavior including CDP and LLDP. Cisco's Intersight documentation explicitly identifies CDP, LLDP transmit/receive, MAC registration, and uplink-failure behavior as Network Control settings.

Ethernet Network Group Policy controls VLAN membership for FI-attached servers, including the set of allowed VLANs and the optional native VLAN. Ethernet QoS Policy supplies performance-oriented vNIC characteristics such as MTU, rate limiting, traffic priority, CoS, and burst parameters. Cisco's current RoCE configuration guide lists MTU and rate-limit values directly under Ethernet QoS configuration.

Finally, Ethernet Adapter Policy contains adapter-level behavior and performance parameters, including RoCE configuration used for high-performance RDMA interfaces.

Ethernet Network Policy is the unused choice. Cisco documents that policy primarily for VLAN configuration on standalone servers, whereas Ethernet Network Group Policy is the relevant VLAN policy for Fabric Interconnect-attached UCS X-Series vNICs.

Study Guide Reference: AI Infrastructure Deployment and Data Management — UCS vNIC templates, Ethernet policies, QoS, VLAN configuration, and RoCE.

===============

Cisco UCS X-Series Direct is specifically designed for edge, retail, remote-office, and branch-office environments that require the operational characteristics of UCS without deploying separate top-of-rack Fabric Interconnect appliances. It combines the UCS X9508 chassis with integrated UCS 9108 100G Fabric Interconnect modules and supports centralized management through Cisco Intersight.

The decisive requirement is 200 Gbps of unified fabric connectivity per compute node . Cisco documents that two UCS 9108 100G Fabric Interconnect modules provide a total of 200 Gbps per compute node. The solution can support up to eight compute nodes per chassis and is explicitly positioned for remote and branch-office deployments.

The S3260 is primarily a storage-intensive UCS platform and does not represent the required branch-oriented modular compute architecture. Unified Edge is purpose-built for edge locations, but the specific 200-Gbps-per-compute-node requirement aligns directly with X-Series Direct. The C885A M8 is a high-density rack server for GPU-intensive AI workloads rather than a chassis solution optimized for these branch deployment requirements.

Study Guide Reference: 2.0 AI Infrastructure Components and Architecture — 2.2 compute scalability and redundancy; 2.5 hybrid AI deployment.

===============

The PFC pause-frame transmission rate per interface is the most directly relevant congestion indicator for an AI training fabric carrying RoCEv2 traffic. Priority Flow Control protects lossless traffic classes by transmitting pause frames when a receiving interface or switch queue approaches a congestion threshold. An elevated or sustained PFC pause rate therefore indicates that the lossless RDMA traffic class is repeatedly encountering queue pressure.

This is particularly significant for distributed AI training. GPU collective operations require synchronized communication between large numbers of accelerators, and excessive congestion can create tail latency, reduce effective network throughput, and extend Job Completion Time. Cisco AI networking guidance consequently treats PFC, ECN, queue occupancy, drops, and congestion telemetry as key operational signals for AI backend fabrics.

Spanning-tree topology changes are largely irrelevant in a modern routed or VXLAN-EVPN AI backend. BGP EVPN route counts are useful for control-plane capacity assessment but do not directly reveal congestion. VXLAN encapsulation rates measure traffic volume rather than whether buffers are becoming saturated.

PFC should not be interpreted as inherently problematic—some pause activity may occur during microbursts. However, unusually high or persistent pause-frame rates are a strong signal that congestion behavior requires investigation.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — RoCEv2 monitoring, PFC, congestion, telemetry, and AI training performance.

===============

Cisco Intersight provides comprehensive infrastructure monitoring that extends beyond conventional CPU and memory health reporting to AI accelerator visibility and performance telemetry . Cisco's current Intersight material specifically highlights GPU performance visibility, resource-utilization trends, power consumption, device health, and Metrics Explorer as important capabilities for managing AI-ready infrastructure.

This makes option D the only answer that addresses all three requirements: direct GPU visibility, detection of resource bottlenecks, and overall compute health. Monitoring GPU utilization, memory consumption, power, and associated platform telemetry allows operators to determine whether an AI workload is constrained by the GPU itself or by supporting compute, memory, networking, storage, or thermal infrastructure.

Option A incorrectly characterizes an Intersight Analyze capability as an AI container and Kubernetes deployment engine. Option B identifies valuable complementary network telemetry through Nexus Dashboard, but the question asks specifically for the most critical Intersight capability for monitoring GPU-centric UCS infrastructure. Option C is contradicted by current Cisco capabilities because Intersight provides AI-accelerator and GPU-performance visibility rather than being restricted to basic CPU and memory telemetry.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — Cisco Intersight health monitoring, GPU telemetry, resource utilization, bottleneck identification, and AI infrastructure optimization.

===============
