In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, isolating performance issues on end-user machines requires a combination of application-layer experience data and local system telemetry. When an architect suspects that local hardware constraints, such as high CPU usage, are degrading the digital experience, the Endpoint Agent is the required vantage point.

The correct combination is Real User Tests > Endpoint, CPU utilization ≥ % (Option C). This alert configuration is effective for several reasons:

Targeted Visibility: It directly monitors the user ' s device (Endpoint) where the hardware bottleneck is suspected to reside.

Real-Time Context: By utilizing Real User Tests (RUM) , the agent gathers performance data during actual user activity (e.g., browsing the web application). This ensures that the CPU spikes are correlated with active application usage, providing a representative view of the impact on experience.

Threshold Alerting: The condition monitors for CPU utilization exceeding a defined percentage threshold (≥ %). This allows IT teams to be notified only when the CPU load reaches problematic levels that are known to cause application sluggishness or browser " freezing " .

Alternative options are less effective for this specific troubleshooting goal:

Option A: Monitors network loss, which would not identify a local CPU bottleneck.

Option B: Monitors path length (hops), which is a routing metric irrelevant to local hardware performance.

Option D: Monitors memory load during scheduled tests. While memory is a factor, the specific suspicion in this scenario is CPU utilization, and scheduled tests do not always capture the same load impact as a real user interacting with the browser.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, identifying routing anomalies such as BGP Hijacking is a critical aspect of external network assurance. A BGP Hijack occurs when an Autonomous System (AS) illegitimately announces a prefix it does not own, causing traffic intended for the rightful owner to be misdirected.

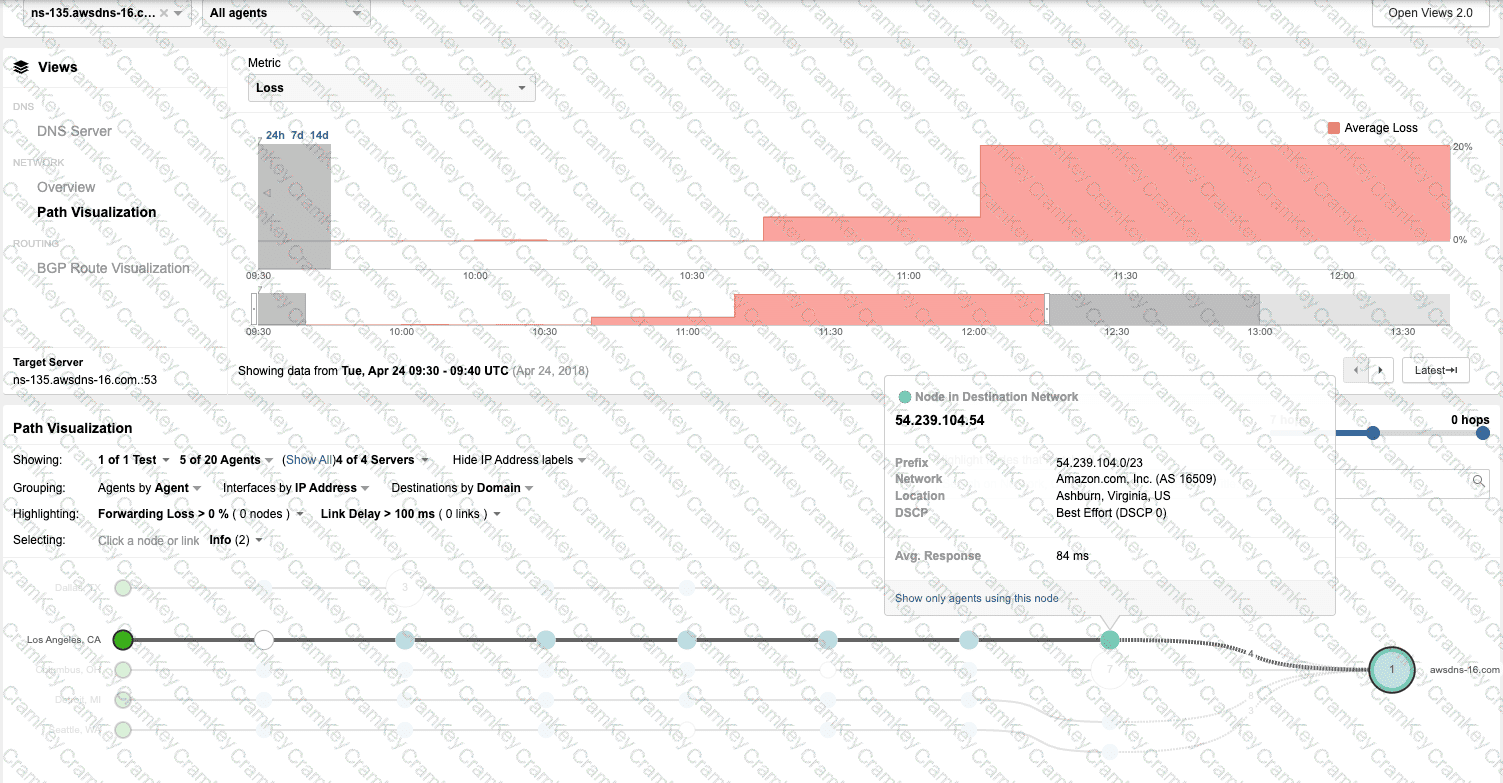

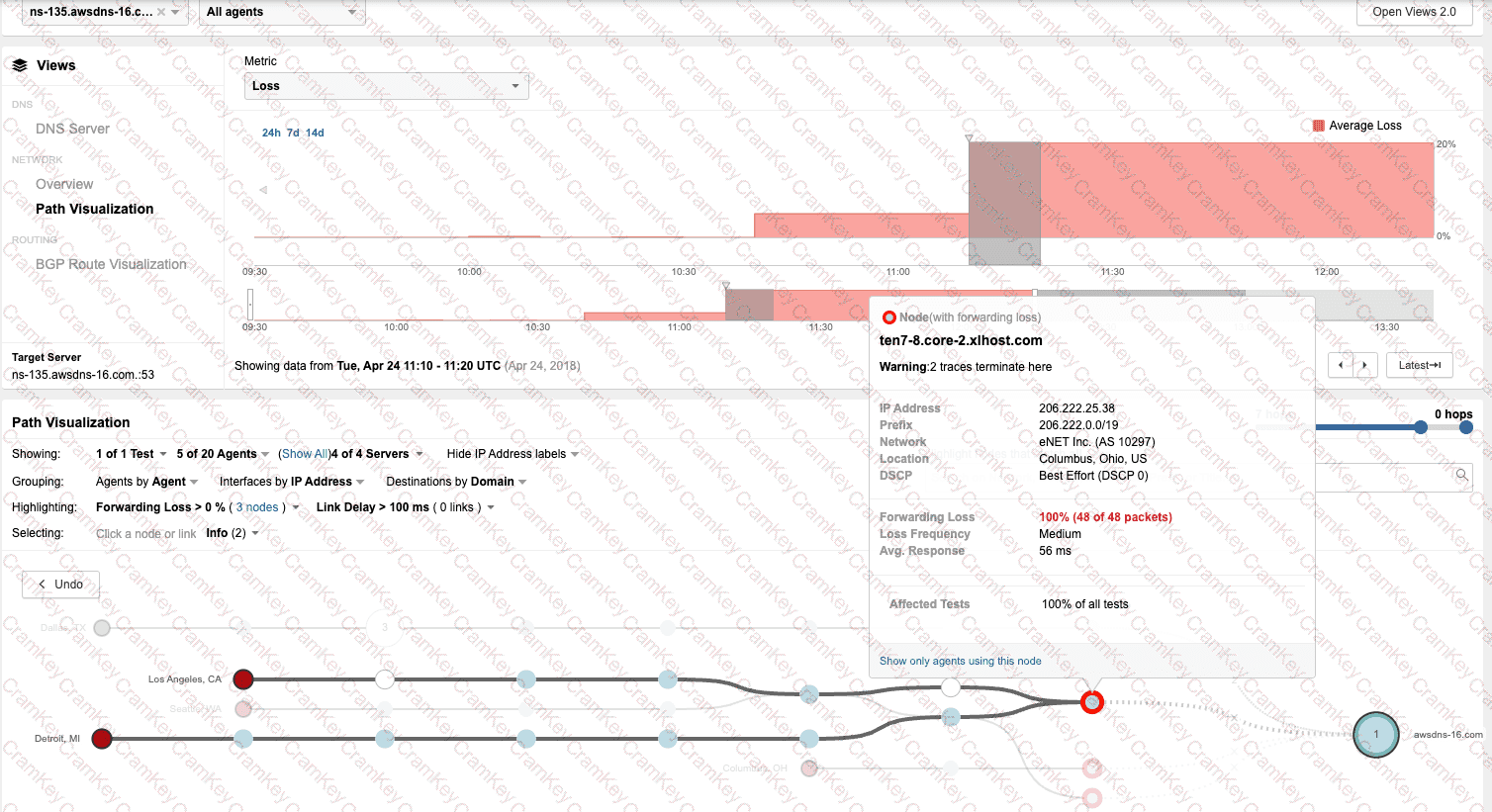

By contrasting Exhibit 3.4-1 (Before the Outage) and Exhibit 3.4-2 (During the Outage), a definitive change in the routing path is observed. In the baseline view (Exhibit 3.4-1), traffic from the Los Angeles agent reaches the destination network 54.239.104.0/23, which is correctly associated with Amazon.com, Inc. (AS 16509) . However, during the outage (Exhibit 3.4-2), the path visualization shows the traffic being redirected into a different network: eNET Inc. (AS 10297) . At this new location, the traffic encounters 100% Forwarding Loss at the node ten7-8.core-2.xlhost.com.

The change in the Autonomous System (AS) number from 16509 to 10297 (Option B) is the most concrete indicator of a BGP Hijack. While symptoms such as Availability Drop (Option A), Response Delay (Option C), and Packet Loss (Option D) are clearly visible in the ThousandEyes telemetry, these symptoms are generic and could be caused by various other issues like physical link failures or congestion. The shift in the AS path—specifically to an AS that does not legitimately host the target ' s IP prefix—provides the forensic evidence needed to identify the root cause as a routing takeover. This visualization allows network administrators to bypass internal troubleshooting and immediately focus on external remediation with upstream providers.

In the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , selecting the appropriate agent for specific test types is a critical configuration step. The ThousandEyes platform utilizes different agent binaries and capabilities depending on the underlying hardware and software environment. Specifically, Page Load tests and Transaction tests require the agent to have a browser engine (Chromium) installed and functional to render web content and measure DOM-related metrics.

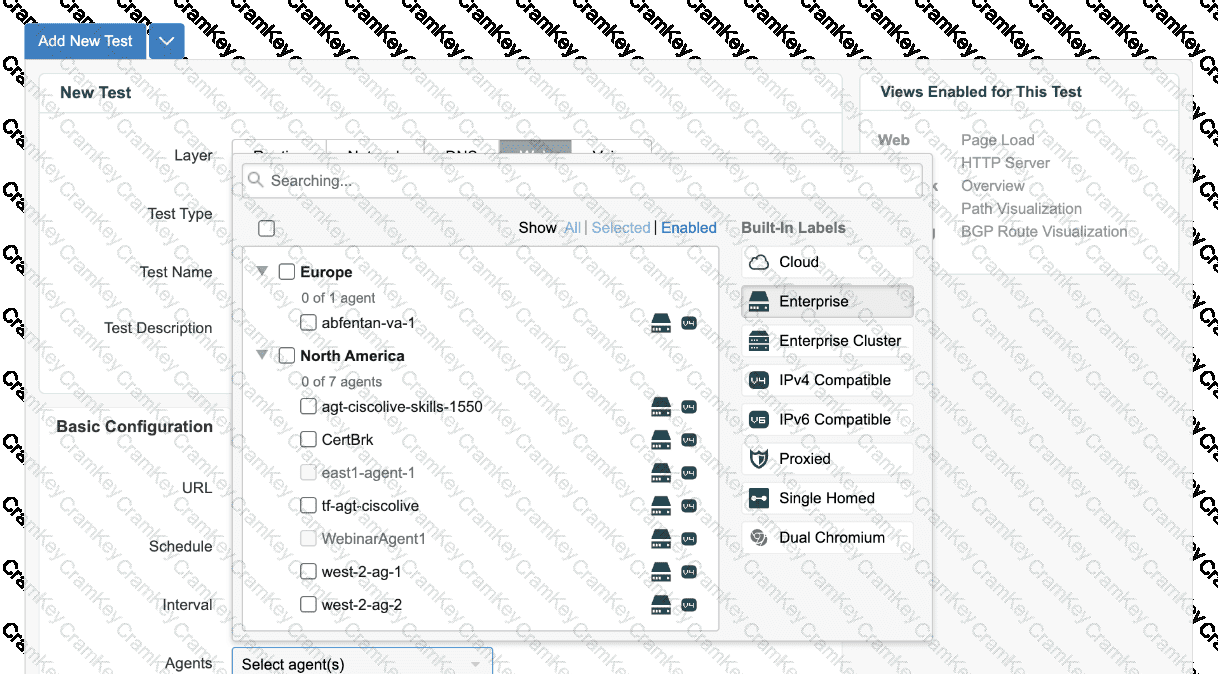

According to the ENNA implementation guidelines, not all Enterprise Agents support these browser-based tests. The exhibit displays a " New Test " configuration screen where the engineer is searching for " east1-agent-1 " . While other agents like " west-2-ag-1 " are visible, the designated agent is missing because it does not support Page load tests (Option D). This common occurrence happens when an Enterprise Agent is deployed on resource-constrained hardware—such as certain Cisco Catalyst 9000 switches or Cisco ISR 4000 series routers —where the Chromium browser package is either not supported or has not been enabled due to memory and CPU limitations.

When an agent lacks the required capabilities for a specific test layer (e.g., Web layer tests), it is automatically filtered out from the selection list in the ThousandEyes portal to prevent invalid test configurations. To identify compatible agents, an engineer can look for the " Browser " or " Dual Chromium " labels in the agent settings. If the " east1-agent-1 " were merely offline (Option A), disabled (Option B), or still registering (Option C), it would typically still appear in the list but with a status indicator showing its unavailability, rather than being entirely hidden from the test assignment menu. Therefore, the absence of the agent in a web-layer test configuration explicitly indicates a lack of functional support for the required browser-based metrics.
