When a radio wavebends around an obstaclein its path, this phenomenon is calleddiffraction. Diffraction allows the RF signal to reach areas that are not in the direct line of sight of the transmitter, such as behind walls, corners, or other obstructions. The amount of bending depends on the wavelength of the signal relative to the size of the obstacle—longer wavelengths (lower frequencies) diffract more effectively than shorter wavelengths.

This property is crucial in wireless network design, especially in enterprise or mesh deployments, because it enables coverage in complex indoor environments and around obstructions where direct line-of-sight communication is impossible. Diffraction differs from other RF phenomena:absorption(option A) occurs when RF energy is partially absorbed by materials, reducing signal strength;diffusion(option B) refers to scattering of the signal in multiple directions; andreflection(option C) occurs when RF waves bounce off surfaces like walls or ceilings, which can lead to multipath interference.

Cisco wireless design guides emphasize understanding diffraction forcoverage planning, AP placement, and optimizing signal propagationin indoor and campus deployments, ensuring that signals can adequately reach shadowed or obstructed areas without excessive loss or dead spots. Reference topic:RF Fundamentals — diffraction, reflection, absorption, and indoor wireless propagation.

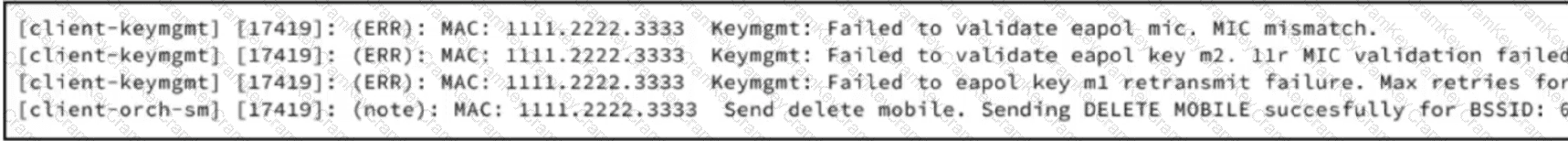

The failure is occurring during WPA/WPA2 key management, not during mobility anchoring. The radioactive trace showsFailed to validate eapol mic. MIC mismatchfollowed byFailed to validate eapol key m2, which means the authenticator and supplicant derived different key material during the PSK handshake. Cisco’s Catalyst 9800 client-connectivity troubleshooting maps this log pattern directly to a wrong password condition and lists the corrective actions as fixing the password on the endpoint or on the SSID/WLAN. The11r MIC validation failedphrase does not automatically make 802.11r the root cause; it only shows that the failed MIC validation occurred while Fast Transition key logic was in use. Disabling 802.11r would be a workaround only for client capability or FT interoperability issues, but the trace points to PSK mismatch. Removing the anchor WLC would break the intended DMZ anchoring design, and matching WLANs on foreign and anchor is required for anchor deployments, but it would not produce this EAPOL M2 MIC failure. The correct remediation is to ensure the client-entered PSK matches the WLAN PSK. Reference topics: WPA/WPA2-PSK authentication, EAPOL 4-way handshake, Catalyst 9800 radioactive trace analysis, and client connectivity troubleshooting.

To implement a guest Wi-Fi network on a Cisco 9800 WLC with the requirements mentioned, the solution must ensure that guests are isolated from the corporate LAN and are redirected to a login page before being able to access the internet. Additionally, access needs to be restricted to web browsing only, with no need for preshared keys or certificates.

Option A: "Create a WLAN that uses a web policy and points to a consent parameter map."This is necessary to enforce the login page and redirect users to a webauth page. By creating a WLAN with web policy, you ensure that users are redirected to a captive portal where they can accept the terms and conditions or login to the network. This solution also helps in segregating the guest network from the corporate network, as users are contained within their VLAN.

Option E: "Deploy a WLAN policy that points wireless users to a webauth parameter map."Web authentication (webauth) is an essential part of guest access. Deploying a WLAN policy with webauth ensures that users are directed to the login page (a webauth parameter map), allowing them to authenticate before browsing the internet.

Other options:

Option Bwould block mDNS, but it does not directly address the need for a login page or VLAN segregation.

Option Cis important for enforcing access control policies, but it doesn't fulfill all the requirements of the login page and limited access (web browsing only).

Option Dis unrelated to the requirement of providing access only to web browsing, as it primarily addresses peer-to-peer traffic blocking, which is not directly tied to web access control.

Therefore, the correct solution involves combining a web policy with a webauth parameter map for login page redirection (A and E).

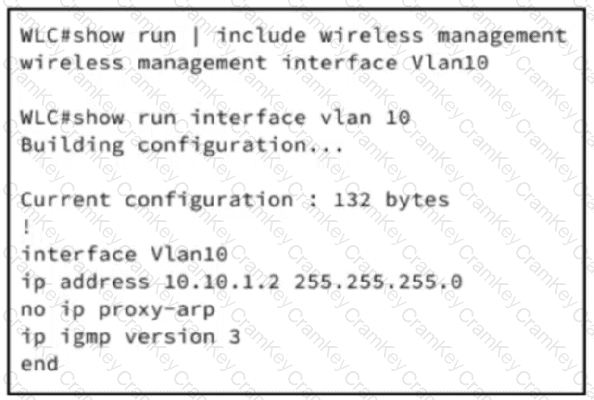

The correct action is to expose only encrypted management services: HTTPS for WebUI administration and SSH for remote CLI administration. The exhibit confirms the WLC wireless management interface is VLAN 10 with IP address 10.10.1.2, but interface placement alone does not enforce secure management protocol policy. Cisco Catalyst 9800 documentation identifies web admin settings as controller management configuration that determines administrator access, protocols, and interfaces for remote management. Cisco further states that administrators can connect securely over HTTPS, while HTTP “is not a secure connection,” and that HTTPS encrypts data to and from the server.

For CLI access, Cisco’s Catalyst 9800 Secure Shell guidance states that SSH enables secure remote access, and usingtransport input sshprevents non-SSH Telnet connections, limiting the device to SSH-only access. Therefore, options A and B violate policy because they permit Telnet and/or HTTP. Option C fails because console access is local, not remote, and disabling only HTTP still leaves Telnet exposure unresolved. Reference topics:Wireless Monitoring and Management — WLC management access, secure administration, HTTPS, SSH, and management-plane hardening.
