The type of object that is conventionally used for this purpose is D. A revision cloud123. A revision cloud is a way to highlight changes or revisions in a drawing by creating a cloud-shaped polyline around them12. You can create a revision cloud by moving the mouse or by converting existing objects2. You can also change the style, color, layer and properties of the revision cloud13.

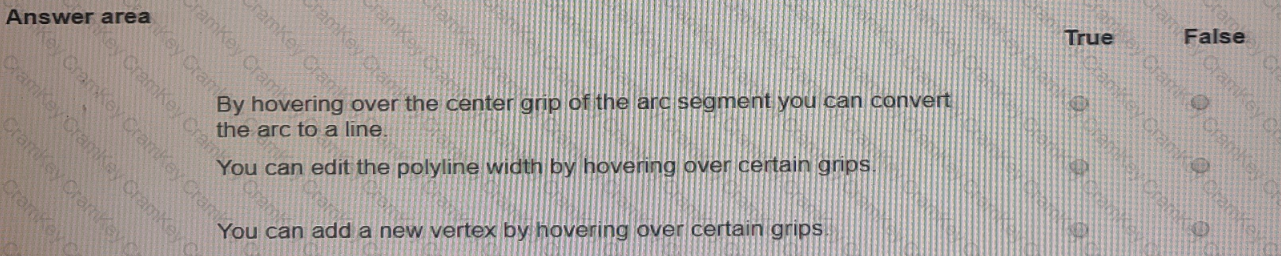

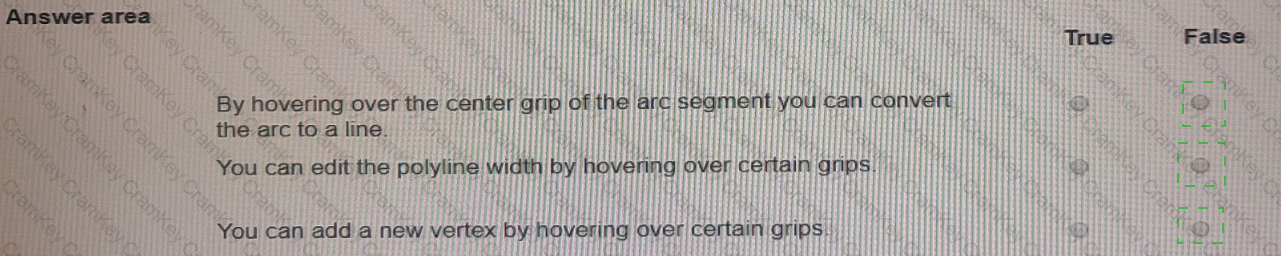

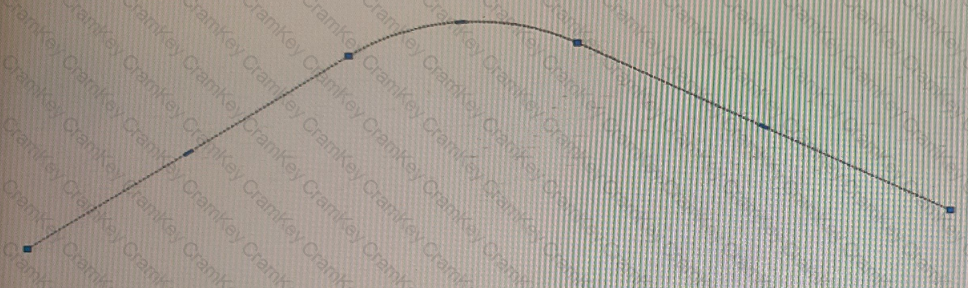

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

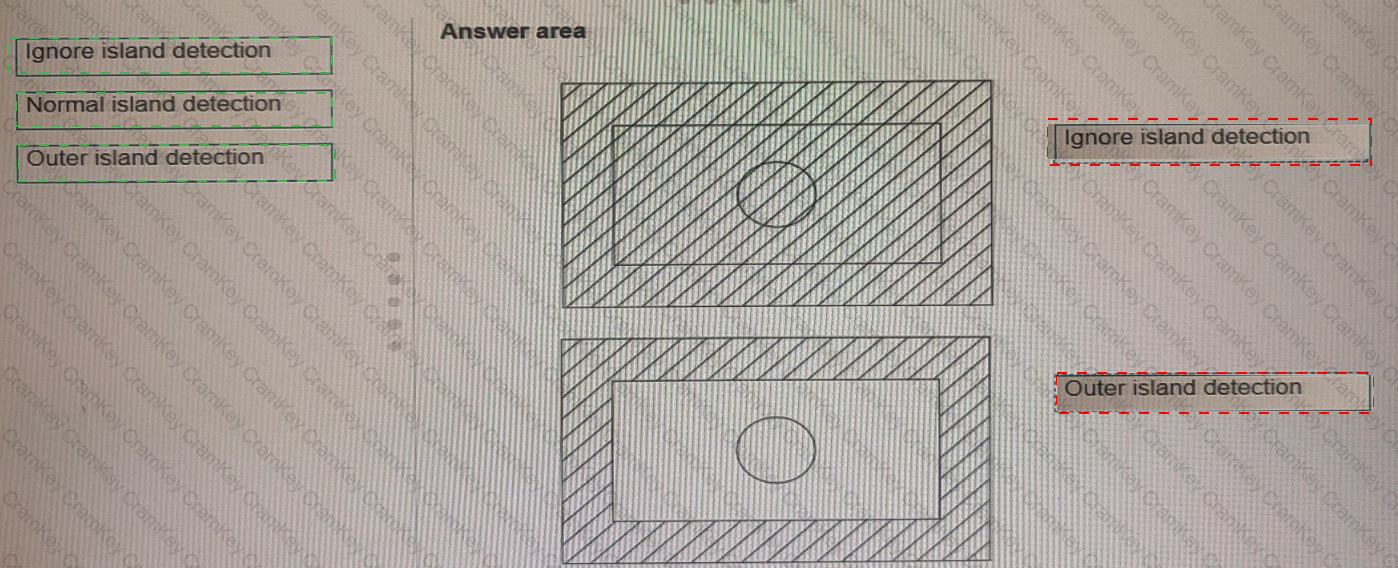

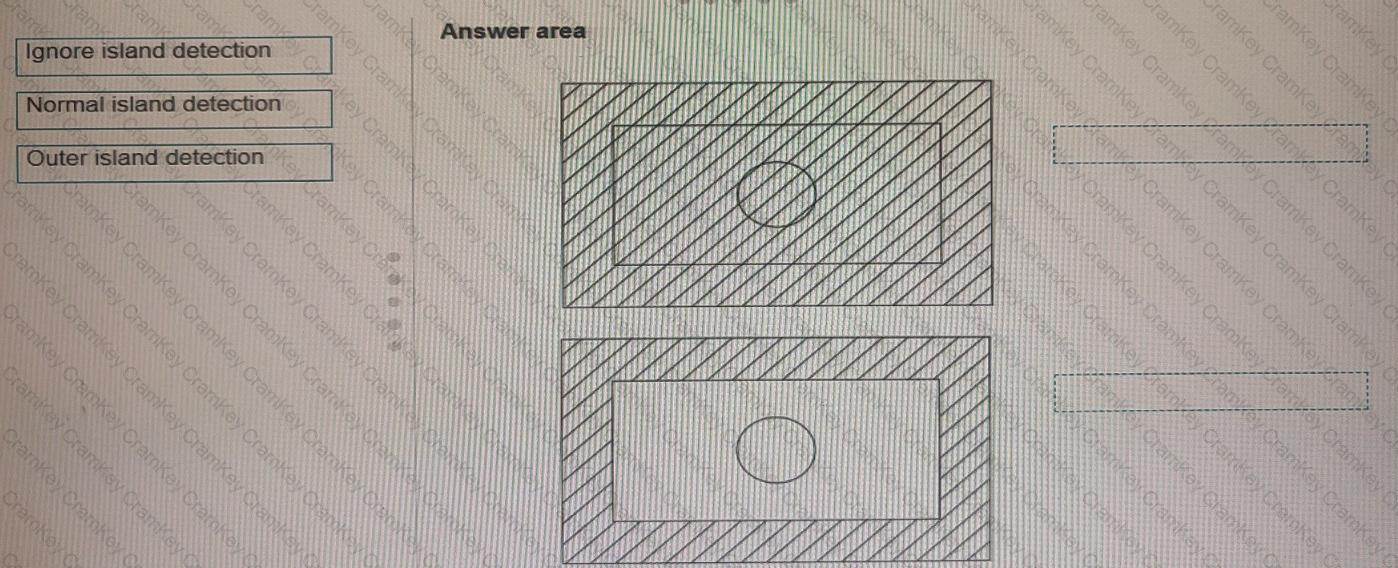

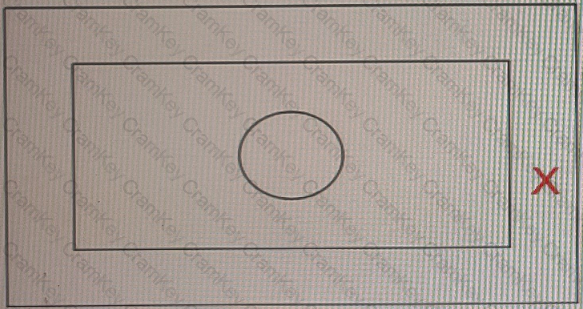

Box 1 = ignore island detection

Box 2 = Outer island detection

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD-Core/files/GUID-981679AC-7097-4724-A30D-33F1CAFDD81D-htm.html

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.
